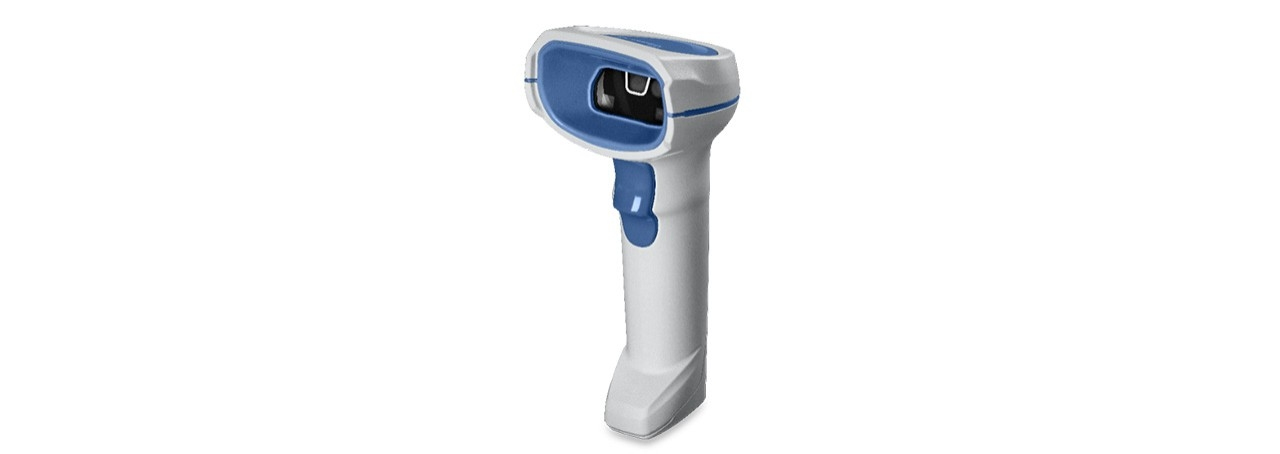

Zebra DS8178-HC Handheld bar code reader 1D/2D LED White
Description
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Codabar,Code 11,Code 128,Code 39,Code 93,GS1 DataBar Expanded,Interleaved 2 of 5,MSI,Plessey,U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Yaw reading angle | -60 - 60° |
| Wavelength | 528 nm |
| Tilt reading angle | 0 - 360° |
| Sensor type | LED |
| Scanner type | 1D/2D |
| Pitch reading angle | -60 - 60° |
| Ports & interfaces | |
| Wireless range | 100 m |
| Connectivity technology | Wireless |
| Bluetooth version | 4.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Standard interfaces | Bluetooth, USB |
| Performance | |
| International Protection (IP) code | IP42 |
| Product colour | White |
| Design | |
| Type | Handheld bar code reader |
| International Protection (IP) code | IP42 |
| Product colour | White |
| Power | |
| Power source type | Battery |
| Number of batteries supported | 1 |
| Battery life | 83 h |
| Number of reads per charge | 65000 |
| Input voltage | 5 V |
| Battery type | Built-in battery |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2500 mAh |
| Weight & dimensions | |
| Width | 66 mm |
| Depth | 107 mm |
| Height | 168 mm |
| Weight | 235 g |
| Technical details | |
| Type | Handheld bar code reader |
| International Protection (IP) code | IP42 |
| Product colour | White |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Specifications
UNSPSC Code
43211701
Brand
Zebra
Categories
Printers & Scanners
Category
Barcode Scanner
Connectivity technology
Wireless
Power source type
Battery
Product Colour
White
Scanner type
1D/2D
Sensor type
LED
Type
Handheld bar code reader
Zebra DS8178-HC Handheld bar code reader 1D/2D LED White
