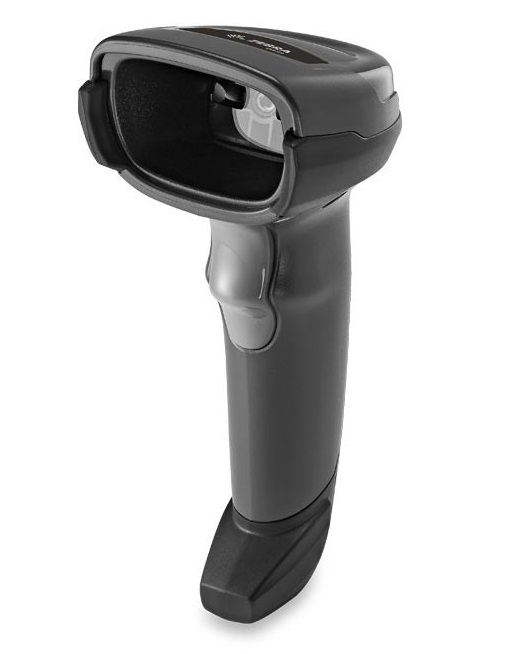

Zebra DS2208 Handheld bar code reader 1D/2D LED Black
Description
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| Linear (1D) barcodes supported | Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,GS1 DataBar Expanded,Interleaved 2 of 5,MSI,U.P.C. |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, PDF417, TLC-39 |
| Motion tolerance (cm/s) | 13 |
| Yaw reading angle | -65 - 65° |
| Working distance | 36.8 cm |
| Wavelength | 645 nm |
| Tilt reading angle | -65 - 65° |
| Sensor type | LED |
| Scanner type | 1D/2D |
| Pitch reading angle | -65 - 65° |
| Optical sensor resolution (W x H) | 640 x 480 pixels |
| Ports & interfaces | |
| Wireless range | 10 m |
| Connectivity technology | Wired |
| Bluetooth version | 4.0 |
| Bluetooth Low Energy (BLE) | Yes |
| Standard interfaces | USB, RS-232, RS-485, Keyboard wedge |
| Performance | |
| LED indicators | Yes |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Certification | EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 IEC 62471 EN 55022 (Class B); EN 55032 (Class B) EN 55024 EN 61000-3-2 EN 61000-3-3 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B |
| Design | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Certification | EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 IEC 62471 EN 55022 (Class B); EN 55032 (Class B) EN 55024 EN 61000-3-2 EN 61000-3-3 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B |
| Power | |
| Power consumption | 250 mA |
| Power source type | DC |
| Battery life | 100 h |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 2400 mAh |
| AC adapter output voltage | 5 V |
| Weight & dimensions | |
| Width | 66 mm |
| Depth | 99 mm |
| Height | 165 mm |
| Weight | 161.6 g |
| Technical details | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| International Protection (IP) code | IP42 |
| Product colour | Black |
| Certification | EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, IEC 60950-1 2ed + A1 + A2, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-07 IEC 62471 EN 55022 (Class B); EN 55032 (Class B) EN 55024 EN 61000-3-2 EN 61000-3-3 47 CFR Part 15, Subpart B, Class B ICES-003 Issue 6, Class B |
| Sustainability certificates | RoHS |
| Packaging data | |
| Charging base | No |
| Cables included | Micro-USB |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Charging base | No |
| Cables included | Micro-USB |
Specifications
UNSPSC Code
43211701
Brand
Zebra
Categories
Printers & Scanners
Category
Barcode Scanner
Connectivity technology
Wired
Power source type
DC
Product Colour
Black
Scanner type
1D/2D
Sensor type
Led
Type
Handheld bar code reader
