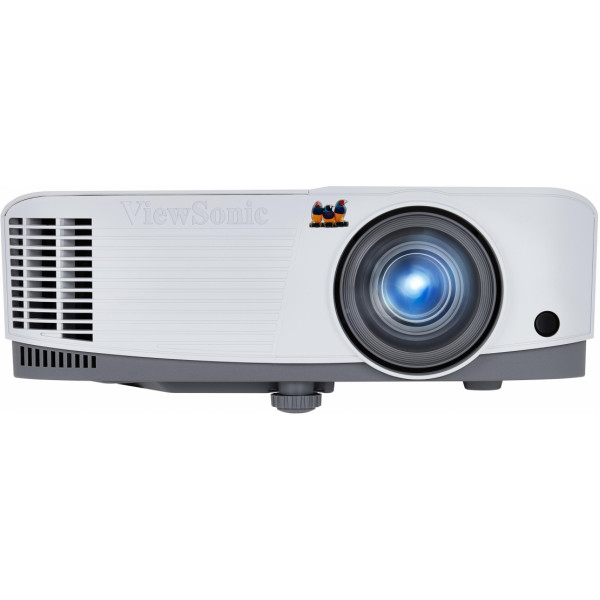

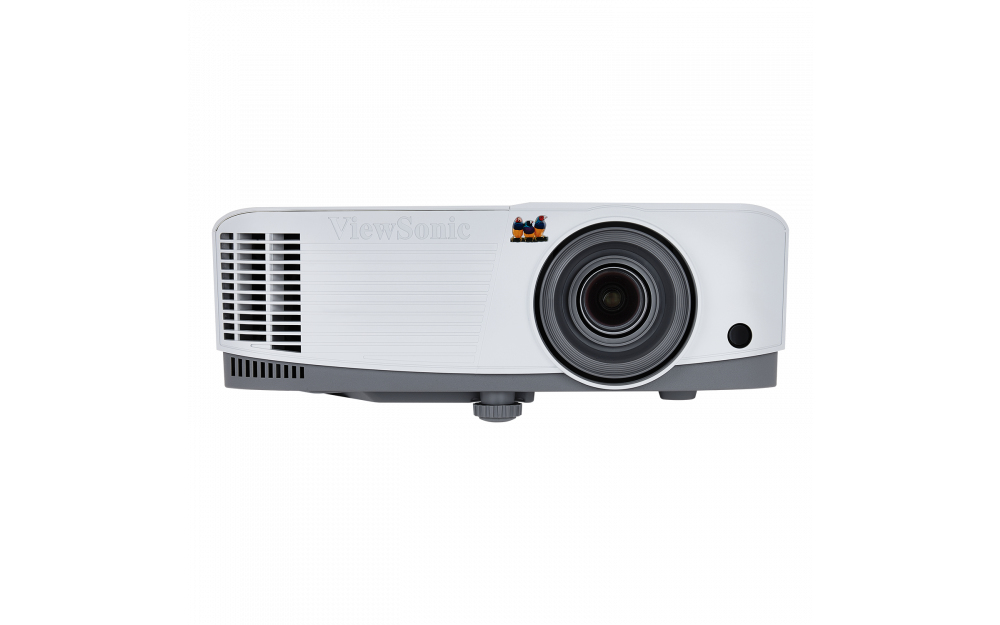

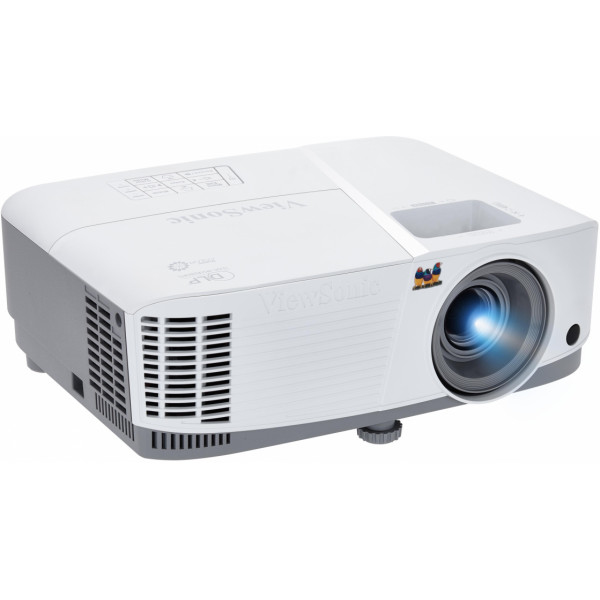

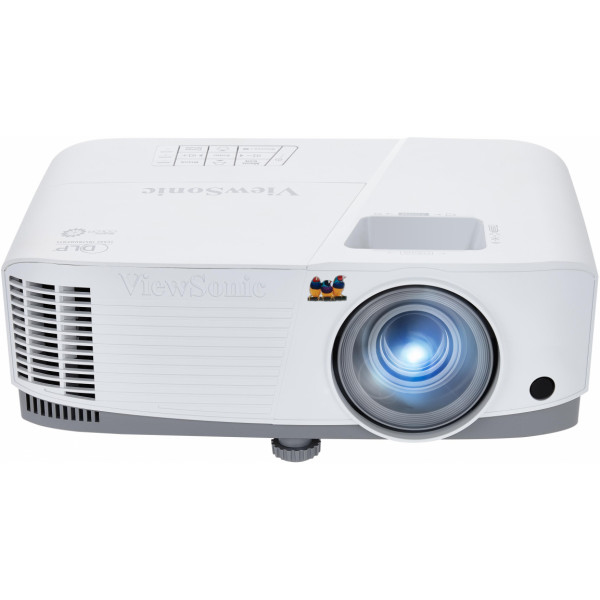

Viewsonic PA503W data projector 3600 ANSI lumens DLP WXGA (1280x800) Desktop projector Grey, White
Description
| Projector | |
|---|---|
| Number of colours | 1.073 billion colours |
| Projector native resolution | WXGA (1280x800) |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 1 - 10.98 m |
| Contrast ratio (dynamic) | 22000:1 |
| Keystone correction, vertical | -40 - 40° |
| Projection technology | DLP |
| Projector brightness | 3600 ANSI lumens |

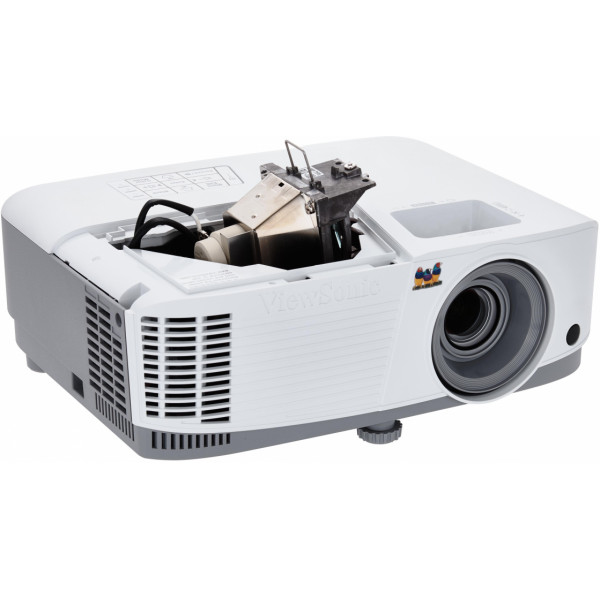

| Lamps | |
| Lamp power | 200 W |
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 15000 h |
| Light source | |
| Lamp power | 200 W |
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 15000 h |
| Lens system | |
| Focus | Manual |
| Throw ratio | 1.55 - 1.7 |
| Optical zoom | 1.1x |
| Video | |
| Full HD | Yes |
| Supported graphics resolutions | 640 x 480 (VGA),1920 x 1080 (HD 1080) |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |

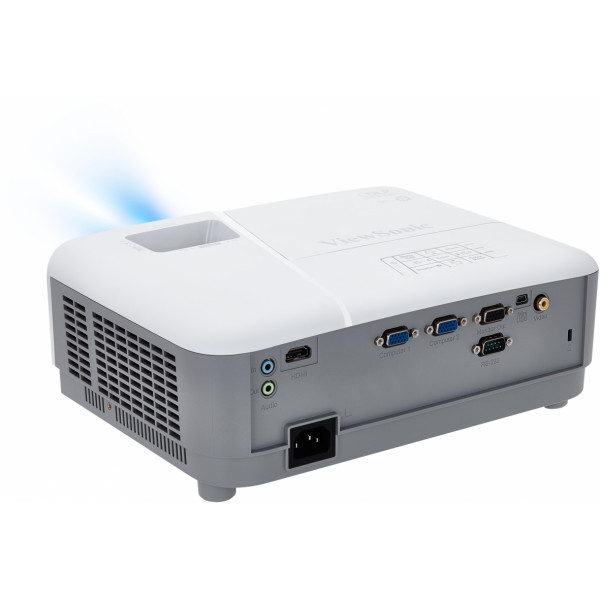

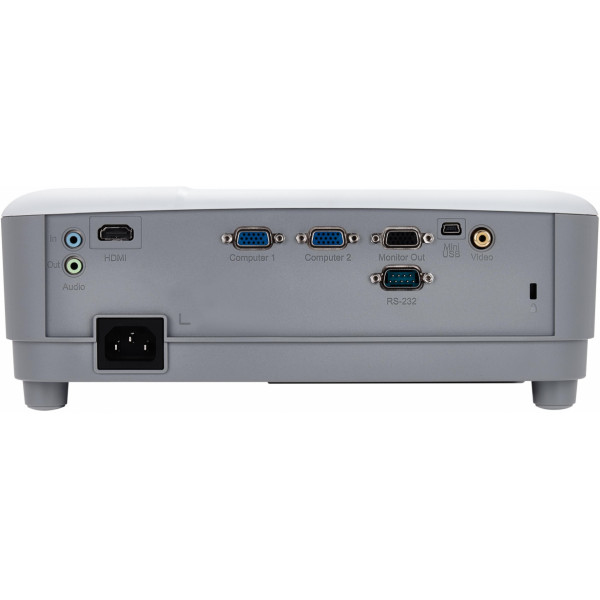

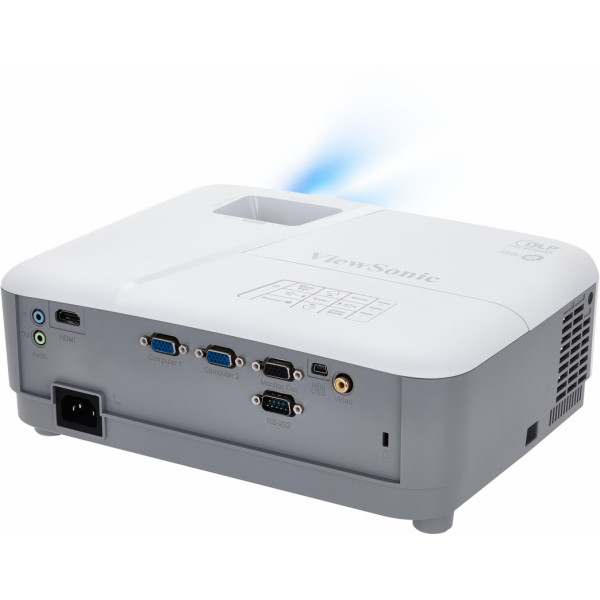

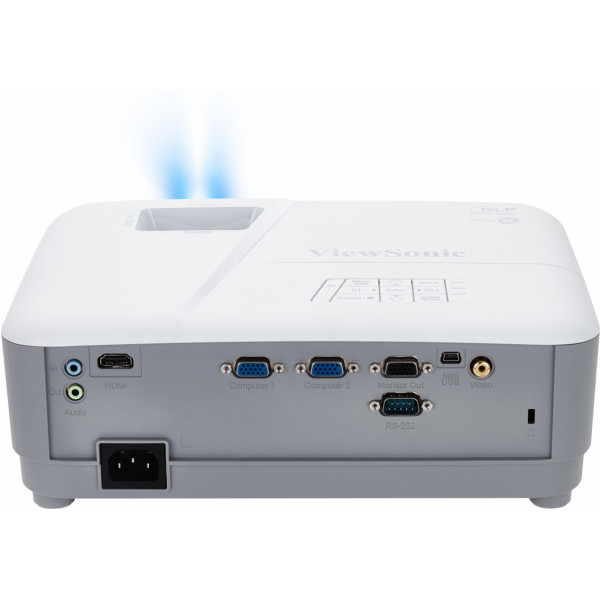

| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 1 |
| Composite video in | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
| RS-232 ports | 1 |
| DVI port | No |
| Technical details | |
| Product colour | Grey, White |
| Lamp power | 200 W |
| Performance | |
| Mac operating systems supported | Yes |
| Features | |
| Certification | FCC, cTUV, NOM |
| Multimedia | |
| Built-in speaker(s) | Yes |
| RMS rated power | 2 W |
| Design | |
| Product type | Desktop projector |
| Cable lock slot type | Kensington |
| Product colour | Grey, White |
| Cable lock slot | Yes |
| Display | |
| Built-in display | No |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Power consumption (typical) | 260 W |
| Power consumption (standby) | 0.5 W |
| Packaging data | |
| Package width | 365 mm |
| Package depth | 188 mm |
| Package height | 300 mm |
| Package weight | 3.24 kg |
| Security | |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Software | |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
| Certification | FCC, cTUV, NOM |
| Weight & dimensions | |
| Package width | 365 mm |
| Package depth | 188 mm |
| Package height | 300 mm |
| Weight | 2.22 kg |
| Width | 296 mm |
| Depth | 110 mm |
| Height | 218 mm |
| Package weight | 3.24 kg |
| Packaging content | |
| Handheld remote control | Yes |
| Quick start guide | Yes |
| Cables included | AC |
| Batteries included | Yes |
| Other features | |
| RS-232 ports | 1 |
Specifications
UNSPSC Code
45111609
Brand
Viewsonic
Categories
Meeting & Exhibition
Category
Digital Projectors
DVI port
N
HDMI ports quantity
1
Light source type
Lamp
Noise Level
30dB to 40dB
Product Type
Standard throw projector
Projection technology
DMD
Projector brightness
3 - 4000 Lumens
Projector native resolution
WXGA (1280x800)
VGA (D-Sub) ports quantity
3
Weight
2000g to 3000g
