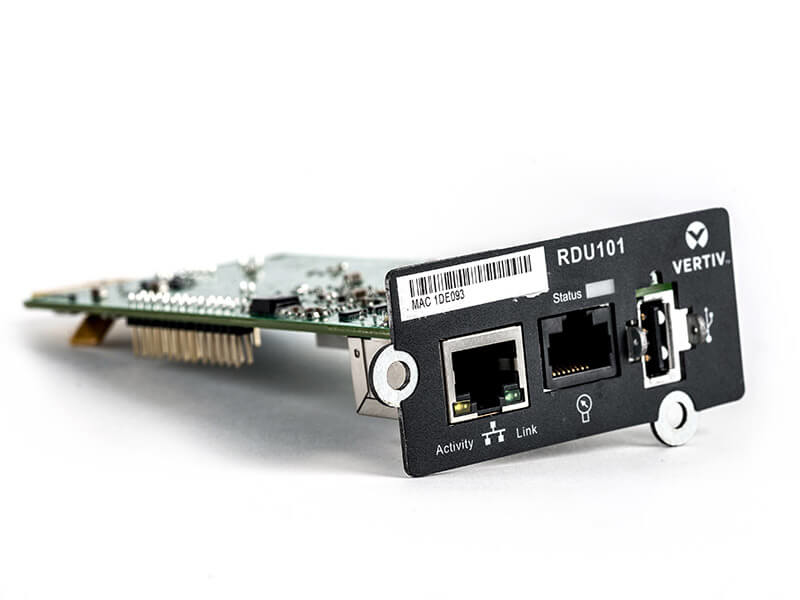

Vertiv IntelliSlot RDU101 Ethernet 100 Mbit/s Internal
Description
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Interface | Ethernet |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 100 Mbit/s |
| Indication | |
| LED indicators | Activity |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Maximum data transfer rate | 100 Mbit/s |
| Design | |
| Internal | Yes |
| LED indicators | Activity |
| Power | |
| Output voltage | 7 - 12 V |
| Power consumption (typical) | 3.6 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Package weight | 600 g |
| Width | 75.5 mm |
| Depth | 15 mm |
| Height | 37 mm |
| Weight | 200 g |
| Packaging data | |
| Package weight | 600 g |
Specifications
UNSPSC Code
43201404
Brand
Vertiv
Categories
System Components
Category
Networking Cards
Connectivity technology
Wired
Interface
Ethernet
Internal
Y
Maximum Data Transfer Rate
100 Mbit/s
