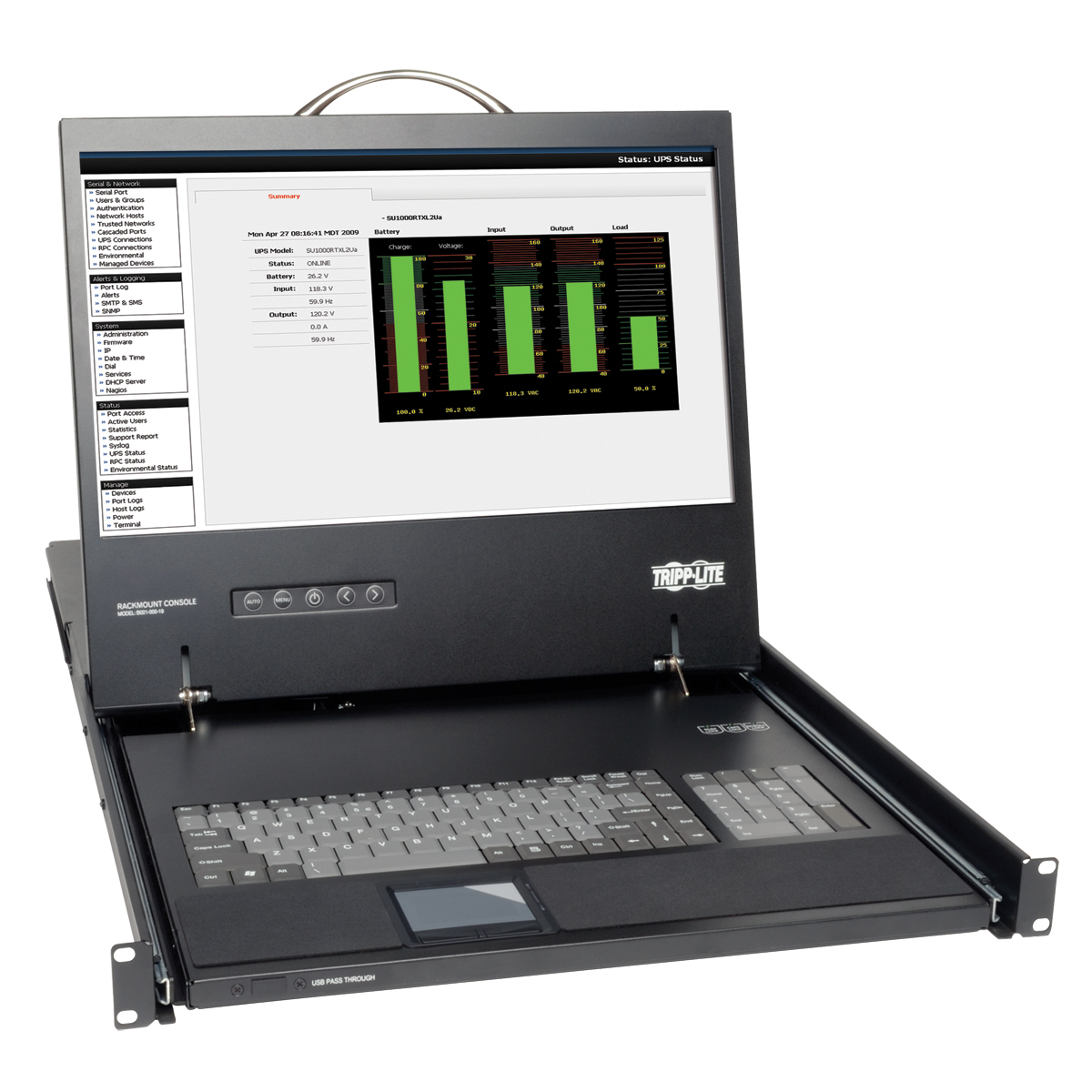

Tripp Lite 1U Rack-Mount Console with 19-in. LCD
Description
● Features 19-inch LCD TFT active-matrix, color panel
● Space saving 1U 19-inch, rackmount drawer design
● Features a USB 2.0 pass-through port for connection of a USB peripheral, such as a flash drive, CAC card reader, etc.
● Supports resolutions of up to 1366 X 768
● Included PS/2 to USB adapter allows for connection to a USB computer or KVM
● Sleep mode when the monitor cover is closed
● Input 120/240 VAC
● Constructed of heavy-duty steel housing
● Control an entire network in just 1U of rack space; includes keyboard, 19" LCD screen and touch pad
● Features a USB 2.0 pass-through port for connection of a USB peripheral, such as a flash drive, CAC card reader, etc.
● Connects to a PS/2 or USB server or KVM switch
● Supports resolutions up to 1366 X 768
● Rackmountable in 19" system rack (1U), from 27" to 42" deep
System Requirements
● Computer or KVM with a VGA monitor port and USB or PS/2 keyboard/mouse ports
Package Includes
● 1U Rackmount Console w/ 19" LCD
● 1- KVM Cable Kit ( HD15M to HD15M + 2 PS2 Male )
● 1-PS/2 to USB Adapter
● 1- C13 to 5-15P Power Cord
● 1- User Manual
● Mounting Hardware
| Display | |
|---|---|
| Display | LCD |
| Display diagonal | 48.3 cm (19") |
| On Screen Display (OSD) | Yes |
| Display resolution | 1024 x 768 pixels |
| Technical details | |
| Height (in Rack Units) | 1 |
| Weight (imperial) | 12.2 kg (27 lbs) |
| Ports & interfaces | |
| I/O ports | HD15 (Female) |
| Weight & dimensions | |
| Dimensions (WxDxH) | 482.6 x 599.4 x 43.1 mm |
| Weight | 12.2 kg |
| Other features | |
| Dimensions (WxDxH) | 482.6 x 599.4 x 43.1 mm |
| Packaging data | |
| Package width | 602 mm |
| Package depth | 825.5 mm |
| Package height | 152.4 mm |
| Package weight | 17.6 kg |
Specifications
UNSPSC Code
43201600
Brand
Tripp Lite
Categories
Chassis Components
Category
Rack Consoles
