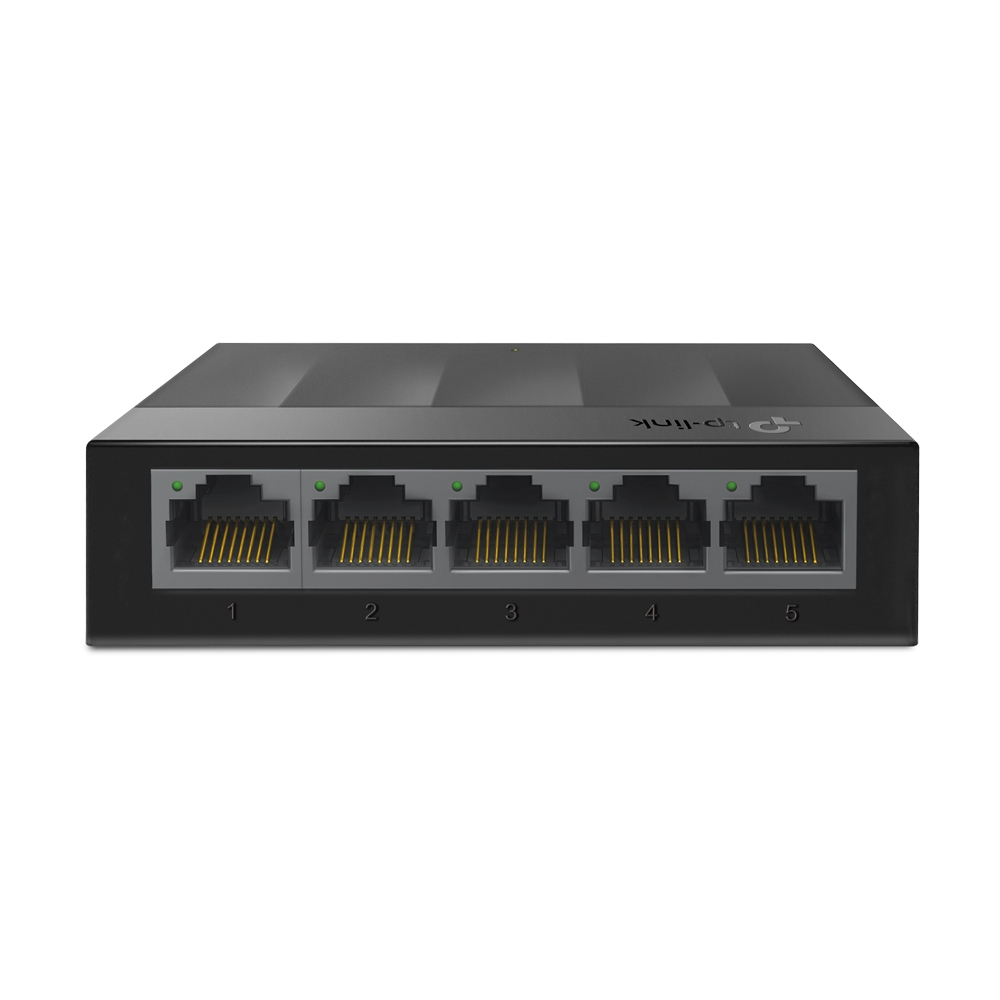

TP-LINK LS1005G network switch Gigabit Ethernet (10/100/1000) Black
Description
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.
Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
Gigabit Ports For Faster Speeds
Increase the speed of your network with the LS1005G 5-port Gigabit desktop switch. Non-blocking, 5× 10/100/1000Mbps ports enable instant transferring of large, bandwidth intensive files without interference.
Use Where You Need, However You Need
The LS1005G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.
| Performance | |
|---|---|
| Packet buffer memory | 1.5 MB |
| Auto-negotiation | Yes |
| Technical details | |
| Product colour | Black |
| Housing material | Plastic |
| Rack mounting | No |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Network | |
| Networking standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Data transmission | |
| Jumbo frames | 16000 |
| Packet buffer memory | 1.5 MB |
| MAC address table | 2000 entries |
| Switching capacity | 10 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| Forwarding rate | 7.4 Mpps |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Memory | |
| Packet buffer memory | 1.5 MB |
| Design | |
| Wall mountable | Yes |
| International Protection (IP) code | IP20, IP40 |
| Product colour | Black |
| LED indicators | Yes |
| Housing material | Plastic |
| Certification | CE, FCC, RoHS |
| Rack mounting | No |
| Indication | |
| LED indicators | Yes |
| Power | |
| Power consumption (max) | 3.7 W |
| Power supply included | Yes |
| Input current | 0.6 A |
| DC input voltage | 5 V |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 12.617 BTU/h |
| Weight & dimensions | |
| Width | 90 mm |
| Depth | 72 mm |
| Height | 23 mm |
| Packaging data | |
| Package type | Box |
| Quick start guide | Yes |
| Packaging content | |
| Quick start guide | Yes |
Specifications
UNSPSC Code
43222612
Basic switching RJ-45 Ethernet ports quantity
4 to 5
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Brand
TP Link
Categories
Networking
Category
Network Switches
Power over Ethernet (PoE)
N
Rack mounting
N
Switch Type
Unmanaged
