TP Link

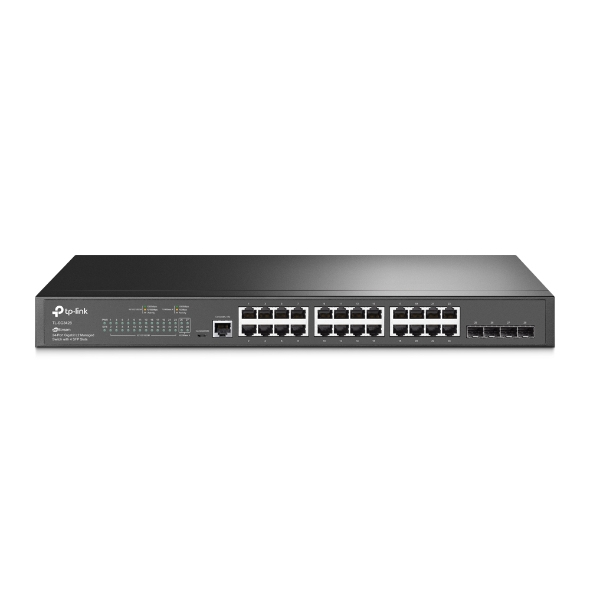

TP-LINK JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots

Category Network Switches
TL-SG3428
TP Link

TP-LINK JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots

1 Location: 2 In Stock
Product Code: TL-SG3428
Category Network Switches

Description

Convenient Gigabit Switch for a Complete Omada Network JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots Software-Defined Networking (SDN) with Cloud Access Omada’s Software-Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more. Secure Networking Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. Also, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided. Advanced QoS Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply. Abundant L2 and L2+ Features A complete lineup of L2 features is supported including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency. ISP Features sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links. IPv6 Support IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware. Enterprise Level Management Features Easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps on abnormal events.
Management features
Multicast supportYes
ARP inspectionYes
Switch typeManaged
Web-based managementYes
System event logYes
Quality of Service (QoS) supportYes
MIB supportYes
Switch layerL2
Configuring Location Settings (CLI)Yes
Cloud-managedYes
Network
IGMP snoopingYes
IGMP proxyYes
Active link detectionYes
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1ad,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3x
Head-of-line (HOL) blockingYes
VLAN supportYes
Spanning tree protocolYes
Rate limitingYes
Port mirroringYes
Link aggregationYes
Flow control supportYes
Ethernet LAN data rates10,100,1000 Mbit/s
Broadcast storm controlYes
10G supportNo
Policy-based routingYes
Virtual LAN features
VLAN supportYes
Technical details
Form factor1U
Product colourBlack
Rack mountingYes
Ports & interfaces
SFP module slots quantity4
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Console portRJ-45/Micro-USB
Data transmission
Number of static routes48
MAC address table8000 entries
Switching capacity56 Gbit/s
Jumbo frames supportYes
Static routeYes
Forwarding rate41.66 Mpps
Security
Loop protectionYes
AuthenticationMAC-based authentication, Port-based authentication
MAC address filteringYes
IGMP snoopingYes
IGMP proxyYes
DHCP featuresDHCP snooping
Multicast features
Multicast supportYes
Design
Form factor1U
Product colourBlack
LED indicatorsYes
Rack mountingYes
Indication
LED indicatorsYes
Power
Power consumption (max)19.22 W
Power supply includedNo
AC input voltage100 - 240 V
AC input frequency50/60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Storage temperature (T-T)-40 - 70 °C
Storage relative humidity (H-H)5 - 90%
Operating temperature (T-T)0 - 45 °C
Operating relative humidity (H-H)10 - 90%
Heat dissipation65.58 BTU/h
Weight & dimensions
Width440 mm
Depth180 mm
Height44 mm
Packaging data
Quick start guideYes
Cables includedLAN (RJ-45)
Other features
Ethernet LAN data rates10,100,1000 Mbit/s
Packaging content
Quick start guideYes
Cables includedLAN (RJ-45)
UNSPSC Code

43222612

Basic switching RJ-45 Ethernet ports quantity

22 to 24

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Brand

TP Link

Categories

Networking

Category

Network Switches

Power over Ethernet (PoE)

N

Rack mounting

Y

Switch Type

Managed

Starting from
€210.60 Pack of 1
/
