StarTech.com Wall-Mount Bracket for Shallow Rack-Mount Equipment - Solid Steel - 12U
Description

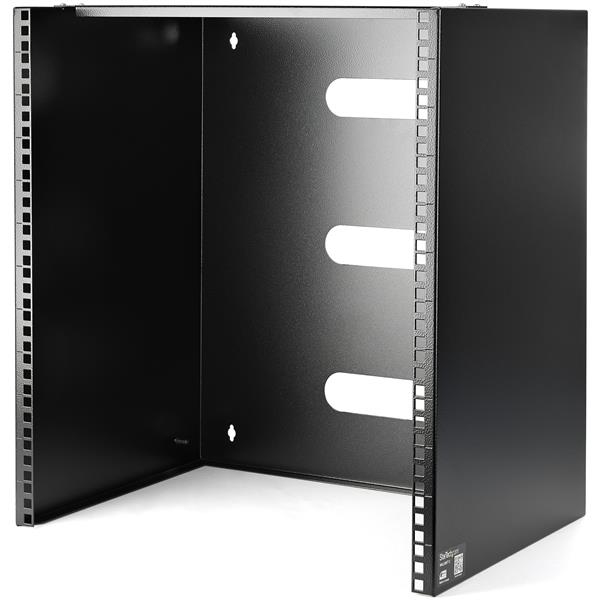

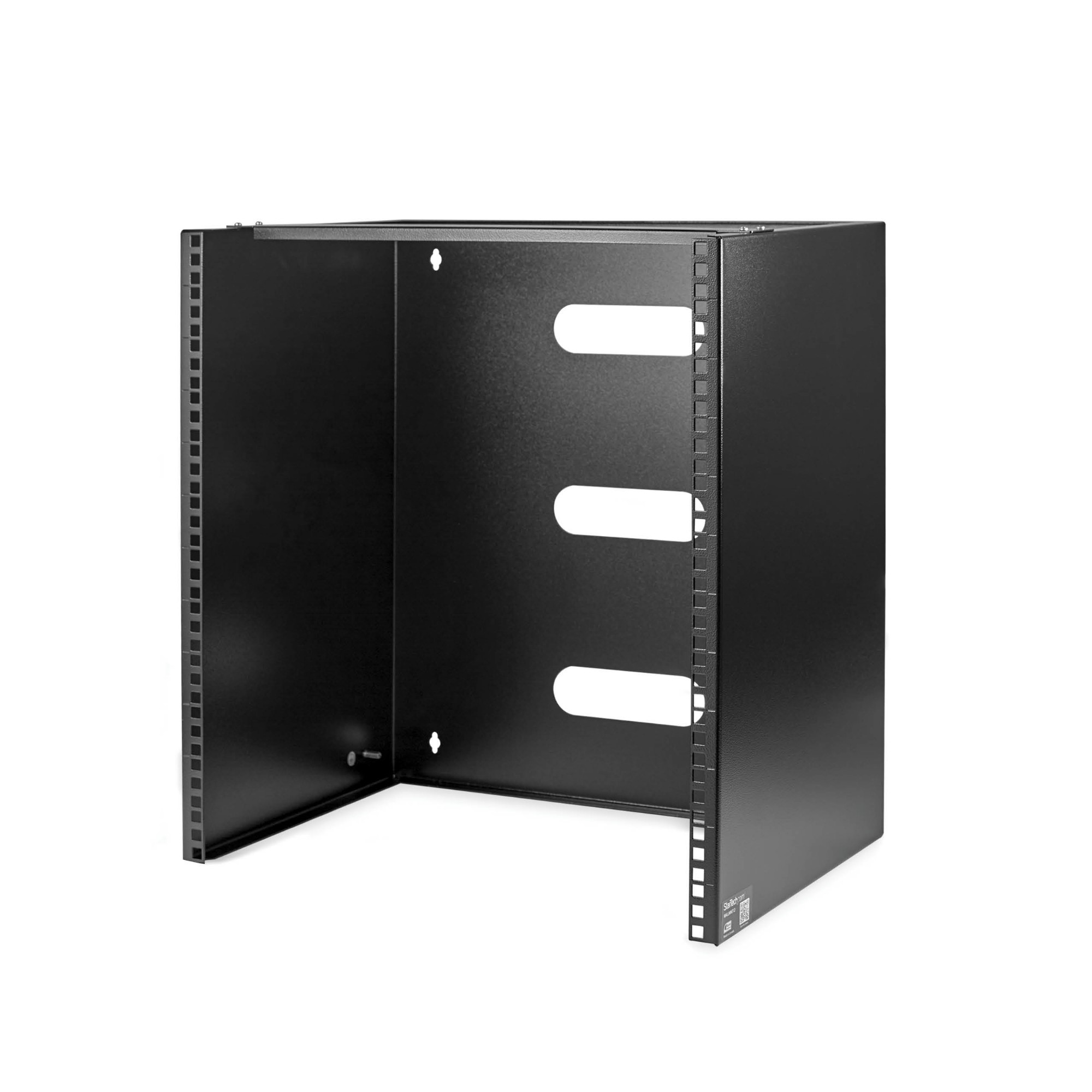

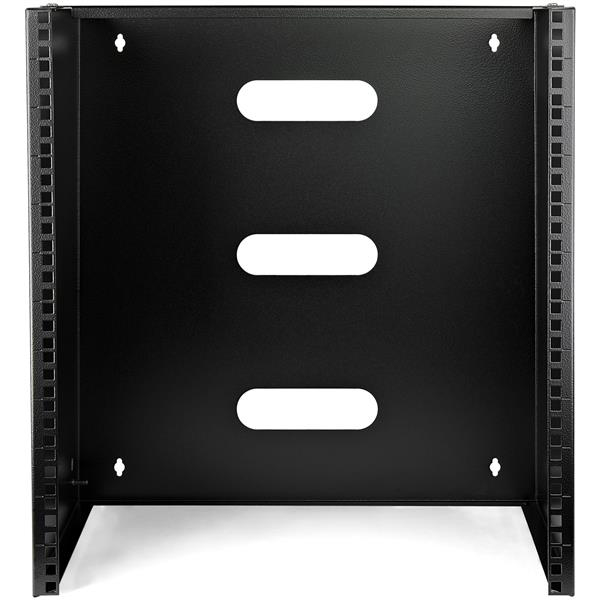

This wall-mount bracket provides 12U of space for mounting shallow rack-mount equipment that's 12 in. deep or less to the wall, such as patch panels or network switches.
Improve efficiency and accessibility in your workspace
The 12U rack optimizes your working space by efficiently mounting your shallow equipment on your wall instead of taking up desk space or other usable surface areas. It’s the perfect solution for your space-limited SoHo (small office, home office) environment or server room because it doesn’t take up any floor space.
Ensure a secure and hassle-free installation

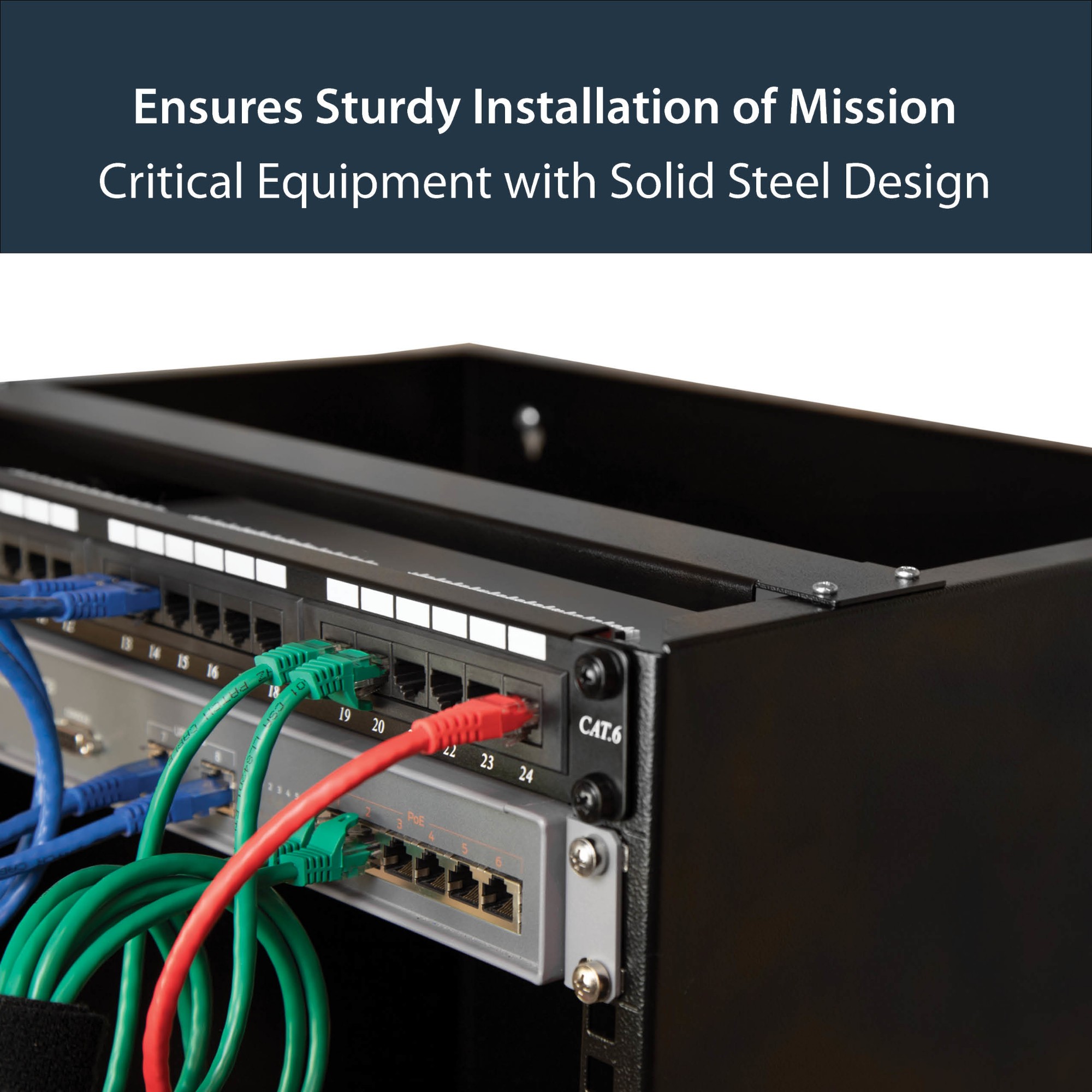

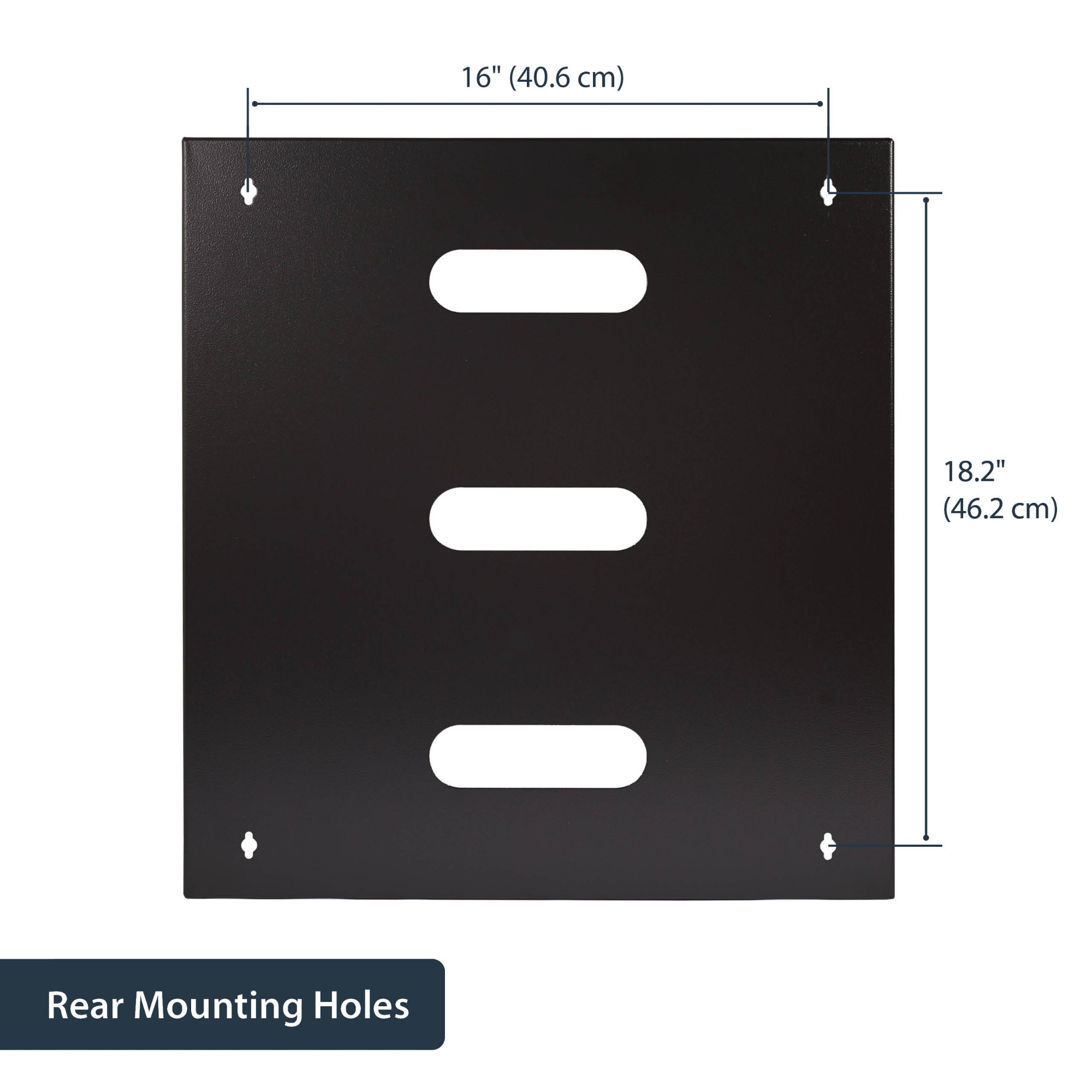

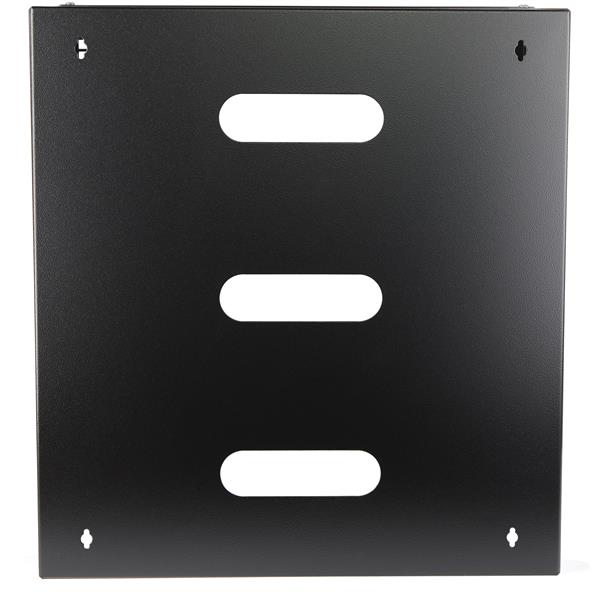

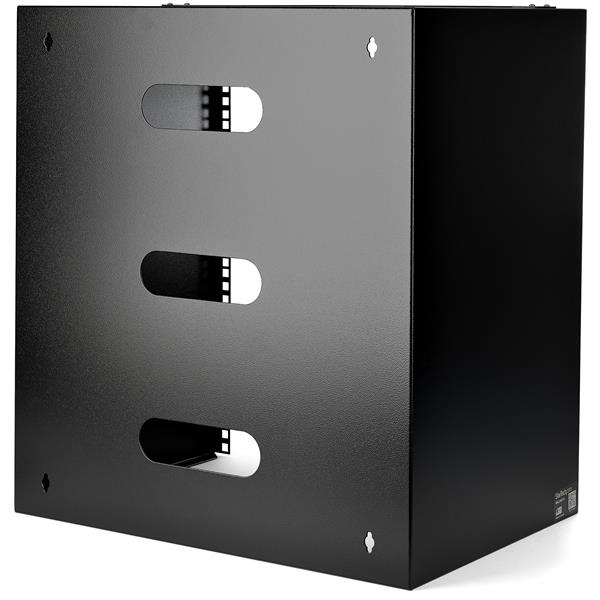

The wall rack is constructed of solid steel to ensure a sturdy and safe mounting solution for your mission-critical equipment. Also, because the wall-mount rack's mounting holes are positioned 16 in. apart, it exactly matches standard drywall construction framework to ensure simple and secure wall-stud anchoring. The rack also features a rear access panel that can be used to easily run cabling into the rack.

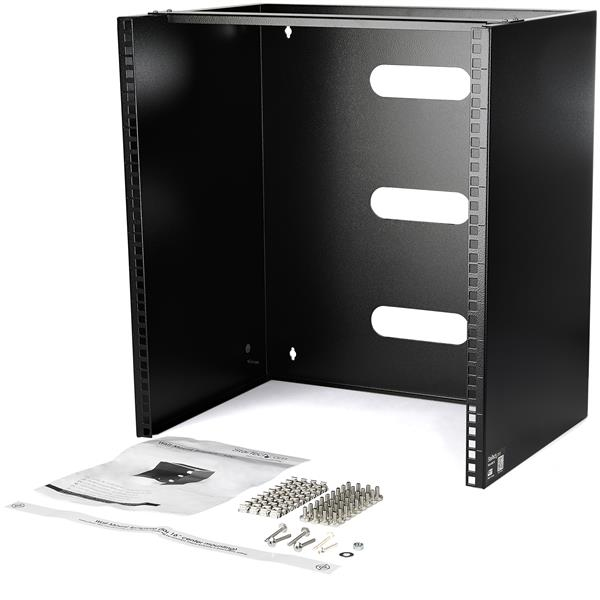

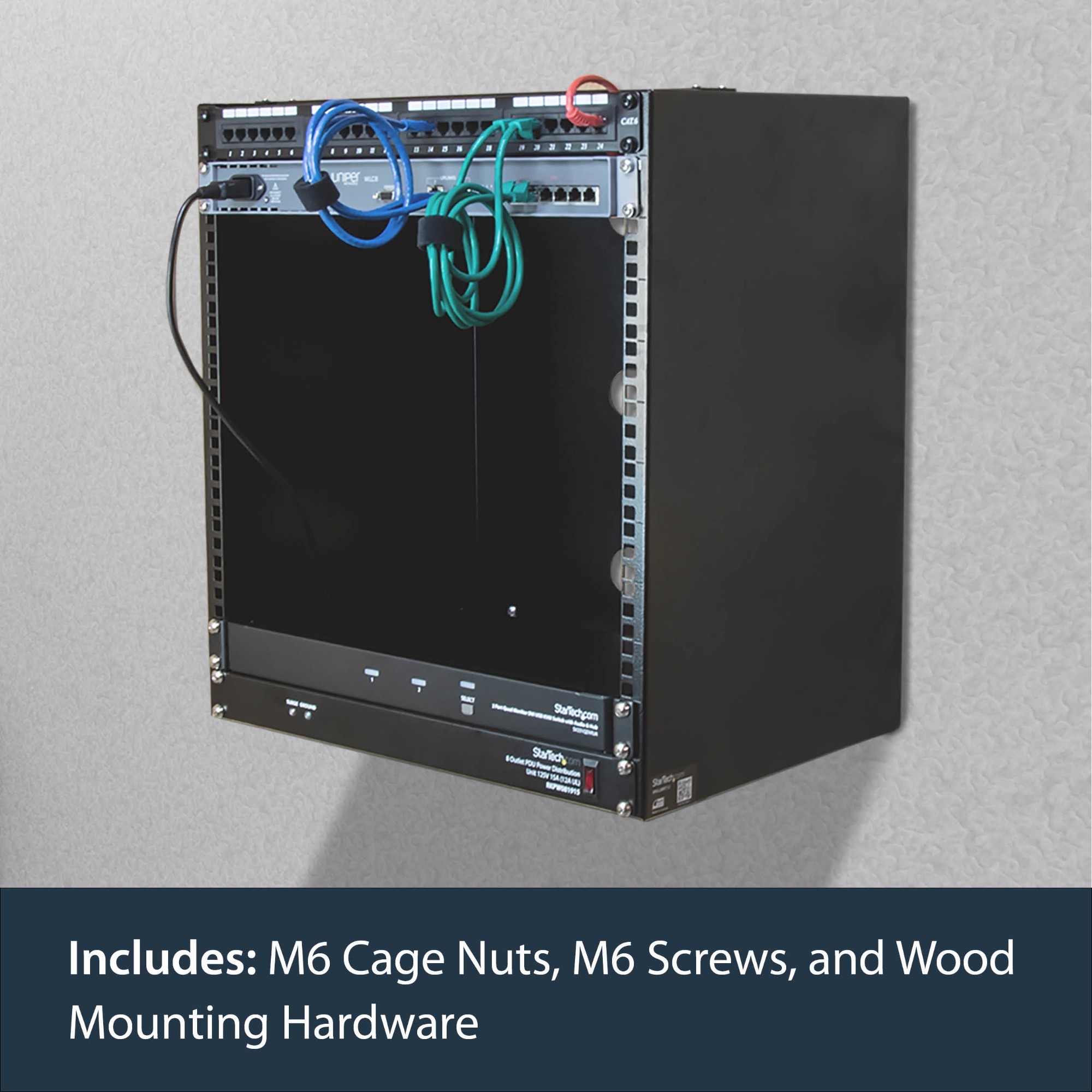

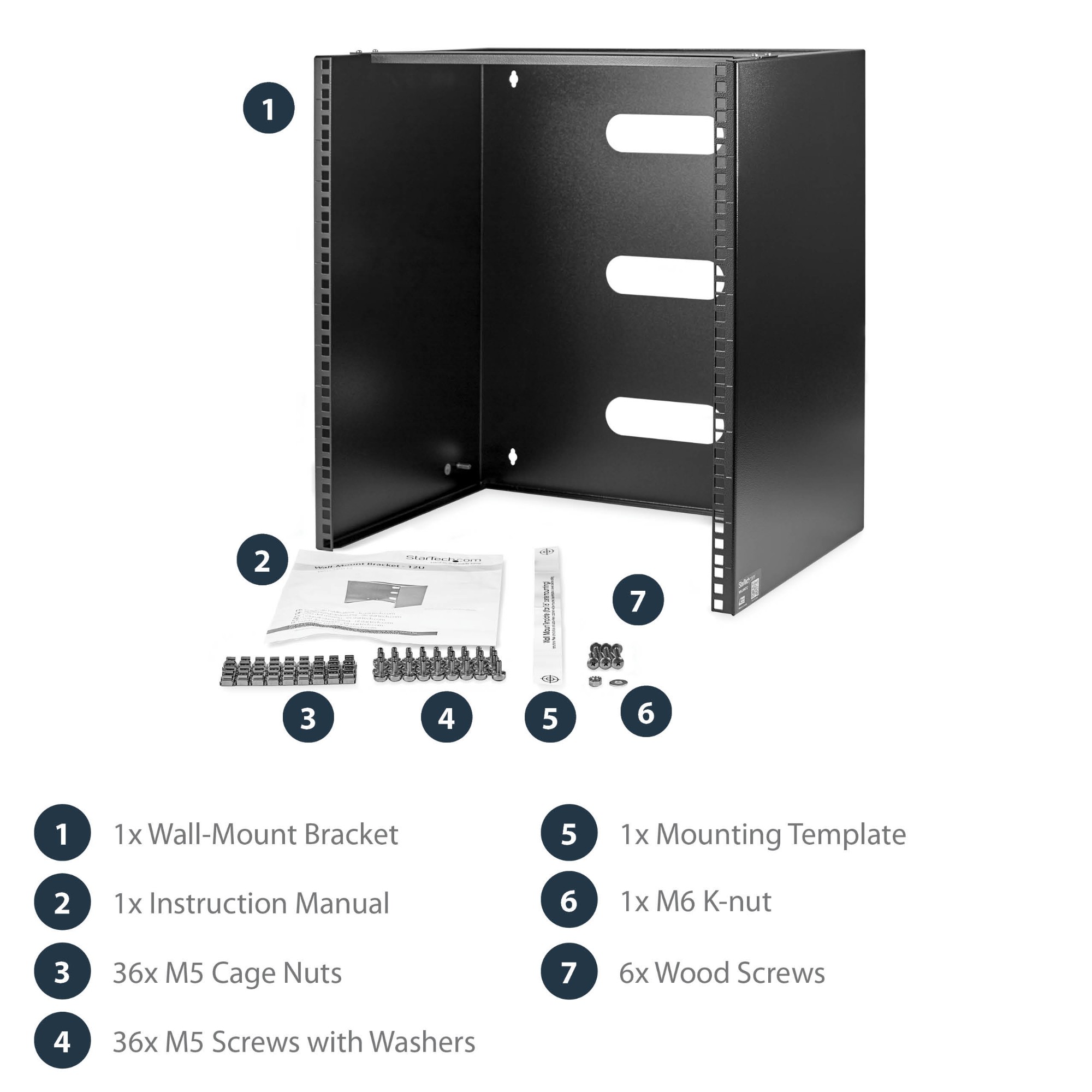

Cage nuts and screws are included with the wall-mount bracket, to save you the hassle of sourcing separate mounting hardware.

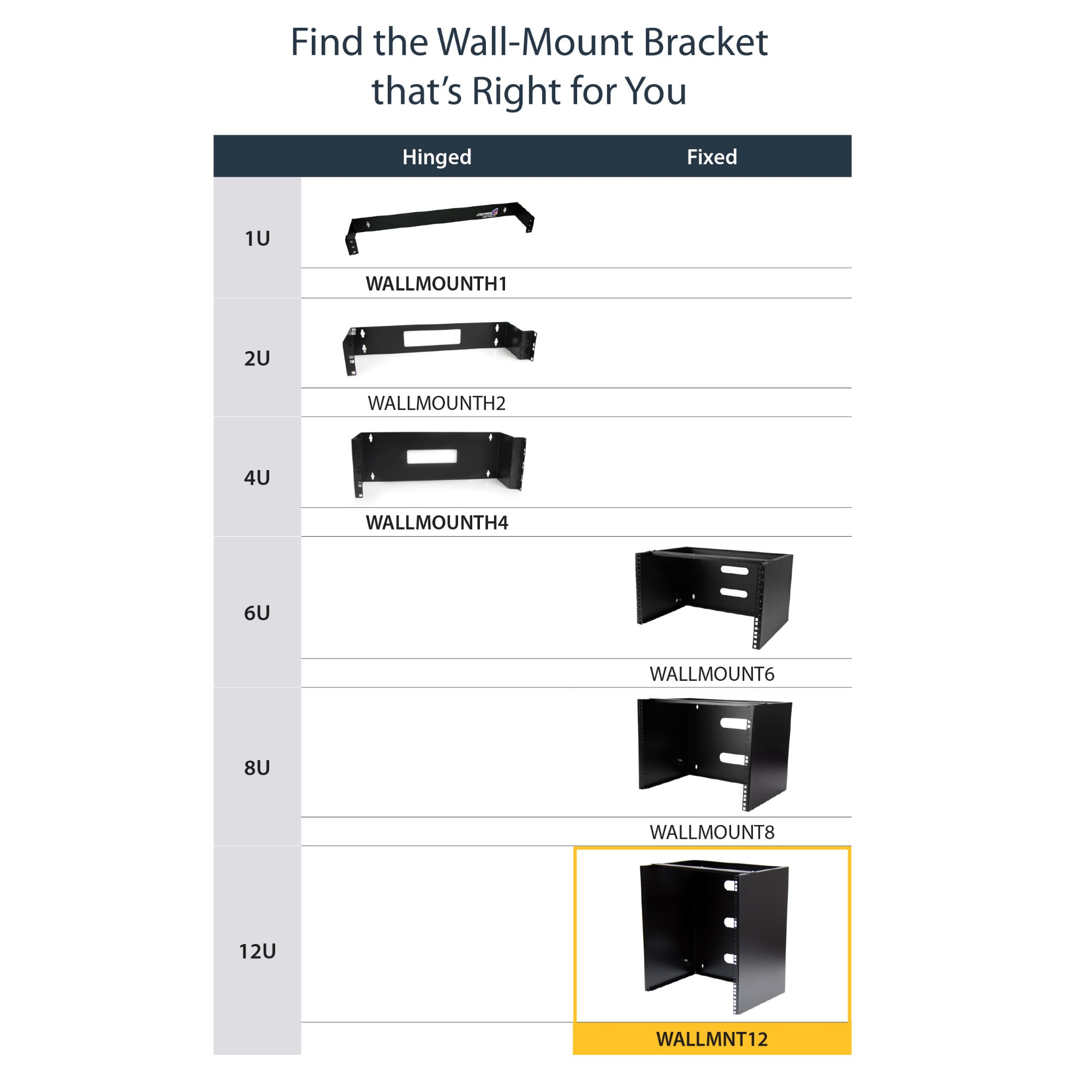

If you're looking for a shallow mounting solution with fewer rack units, StarTech.com also offers a 6U wall-mount bracket, and an 8U wall-mount bracket.
The WALLMNT12 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- Improve efficiency in your office or server room by mounting shallow equipment to the wall
- Sturdy installation of mission critical equipment with solid steel design
- Hassle-free setup with wall mounting holes spaced 16 in. apart, matching standard dry-wall framework
| Weight & dimensions | |
|---|---|
| Package depth | 530 mm |
| Package width | 383 mm |
| Package height | 567 mm |
| Package weight | 10.9 kg |
| Mounting depth (max) | 34.3 cm |

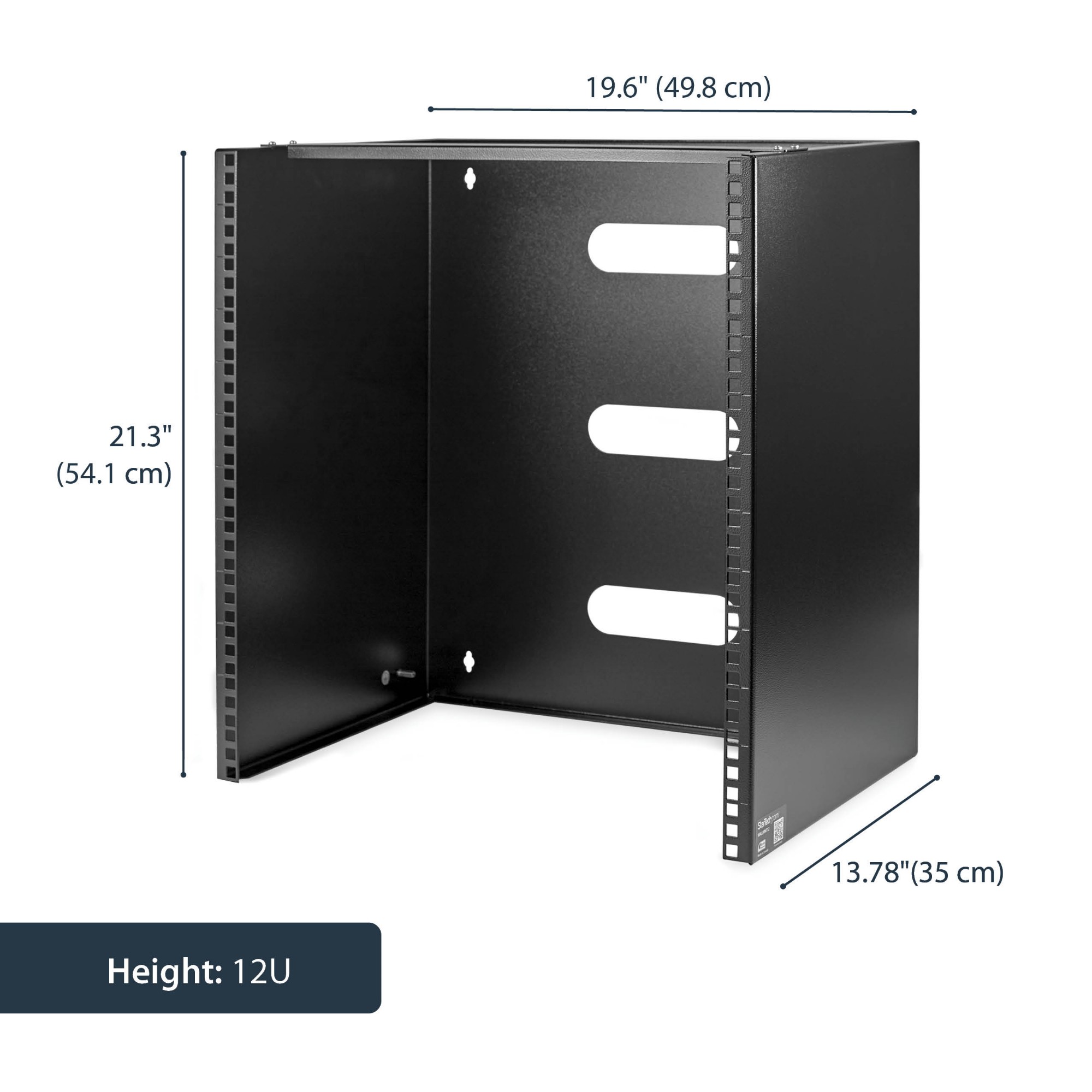

| Width | 499 mm |
| Depth | 350 mm |
| Height | 541 mm |
| Weight | 8.7 kg |
| Maximum weight capacity | 56.7 kg |
| Packaging content | |
| Manual | Yes |
| Mounting kit | Yes |
| Nuts included | Yes |
| Number of nuts | 37 |
| Screws included | Yes |
| Number of screws | 42 |
| Certificates | |
| RoHS compliance | Yes |
| Certification | CE, REACH |
| Features | |
| Frame type | Open |
| Design | 2-post |
| Rack capacity | 12U |
| Castor wheels | No |
| Adjustable mounting rails | No |
| Cable management | No |
| Mounting hole shape | Square |
| Type | Wall mounted rack |
| Maximum weight capacity | 56.7 kg |
| Material | Steel |
| Product colour | Black |
| Certification | CE, REACH |
| RoHS compliance | Yes |
| Packaging data | |
| Manual | Yes |
| Mounting kit | Yes |
| Nuts included | Yes |
| Number of nuts | 37 |
| Package depth | 530 mm |
| Package width | 383 mm |
| Package height | 567 mm |
| Package weight | 10.9 kg |
| Screws included | Yes |
| Number of screws | 42 |
| Technical details | |
| Package width | 383 mm |
| Package height | 567 mm |
| Type | Wall mounted rack |
| Compliance industry standards | EIA/ECA-310-E |
| Rack capacity | 12U |
| Colour | |
| Product colour | Black |
| Material | |
| Material | Steel |
| Other features | |
| Compliance industry standards | EIA/ECA-310-E |
Specifications
UNSPSC Code
43201600
Brand
StarTech
Categories
Chassis Components
Category
Rack Cabinets
Rack capacity
12U
Type
Wall mounted rack
