StarTech.com USB-C VGA Multiport Adapter - Power Delivery (60W) - USB 3.0 - GbE
Description

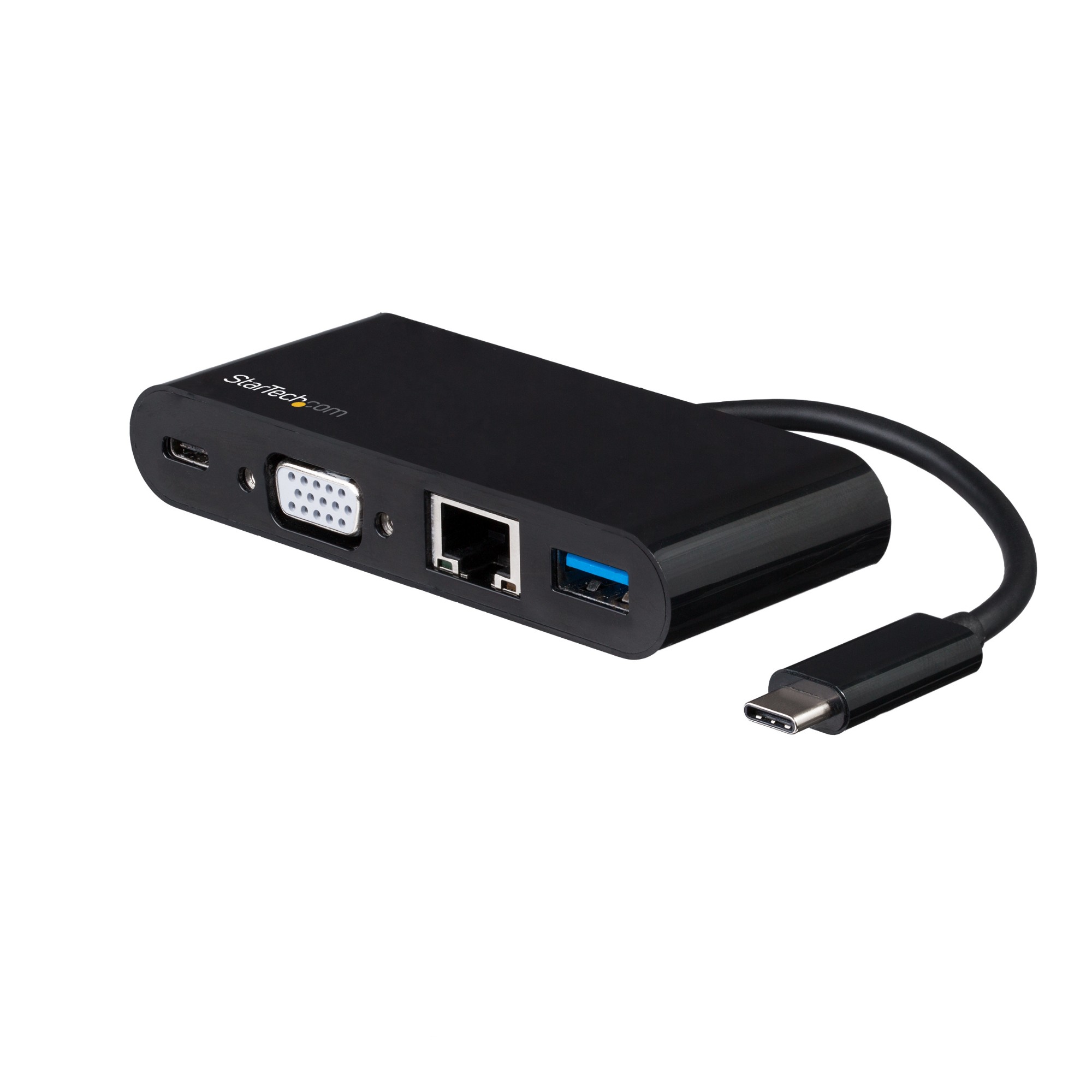

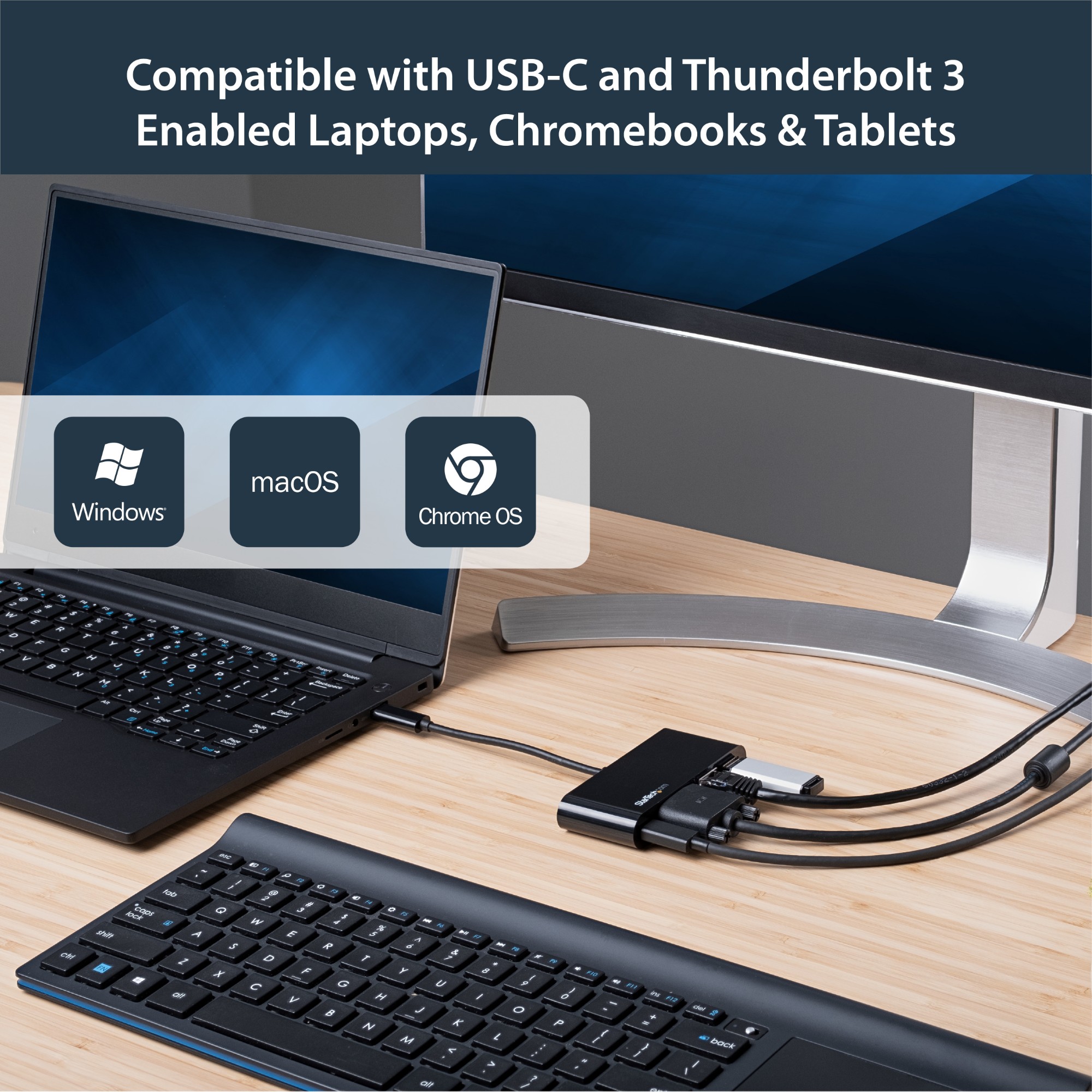

Expand the connectivity of your USB-C laptop with this USB-C VGA multiport adapter. It connects to your USB-C or Thunderbolt 3 port to add VGA video output, a USB 3.0 (Type-A) port with Fast-Charge capability plus a Gigabit Ethernet network connection. Mac, Windows and Chrome OS compatible, it’s the ideal accessory for your MacBook, laptop, tablet, Chromebook, smartphone or other USB-C device (with support for DisplayPort Alt Mode).
Connect to a VGA monitor to give presentations
This USB-C adapter lets you connect your USB-C laptop or device to an external VGA monitor or projector to give engaging presentations in the boardroom, classroom, or meeting room. It supports HD video resolutions up to 1920 x 1200p @ 60Hz.
Create a portable workstation

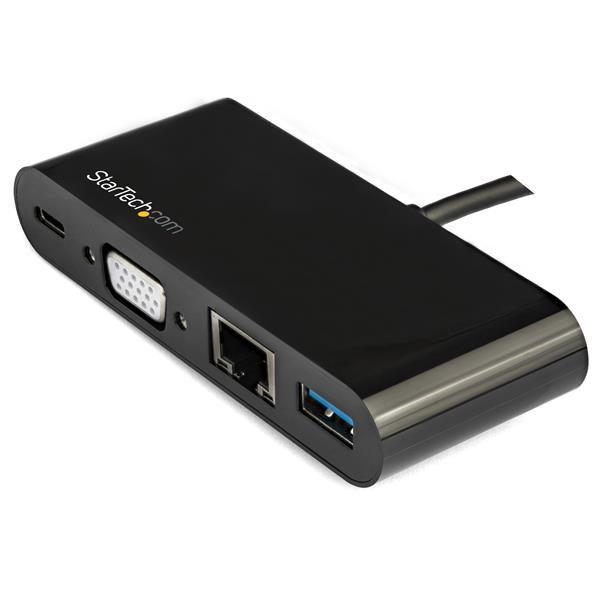

Compact and durable, the USB-C multiport adapter is ideal for mobile use, eliminating the need to carry multiple adapters with you. Set up a workstation with a Gigabit Ethernet port and a USB 3.0 port to connect an existing USB device, or fast-charge your smartphone or tablet. The adapter features a USB-C port that supports USB Power Delivery 2.0 (60W) so you can use your laptop’s USB-C power adapter to power both your laptop and the multiport adapter.
Fast and easy setup

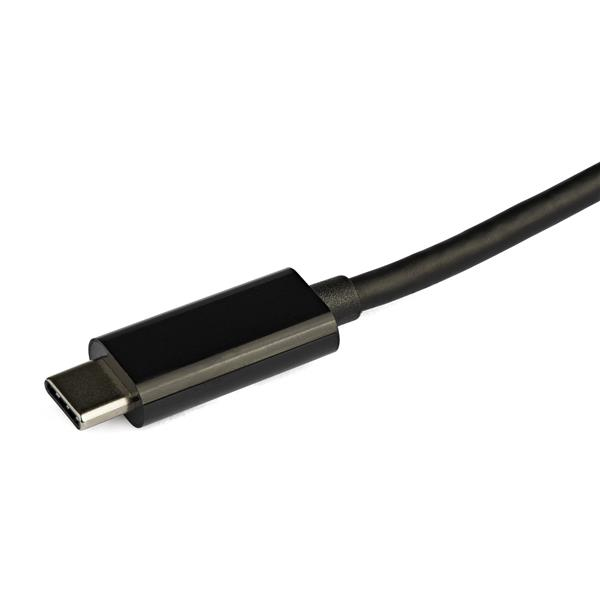

The adapter features an attached cable (5.6 in. / 143 mm) to ensure easy setup and supports plug-and-play installation, with no additional software or drivers required.
The DKT30CVAGPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage

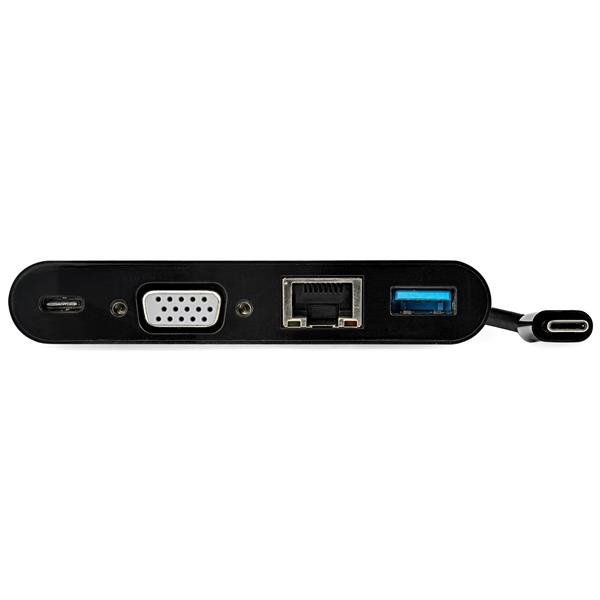

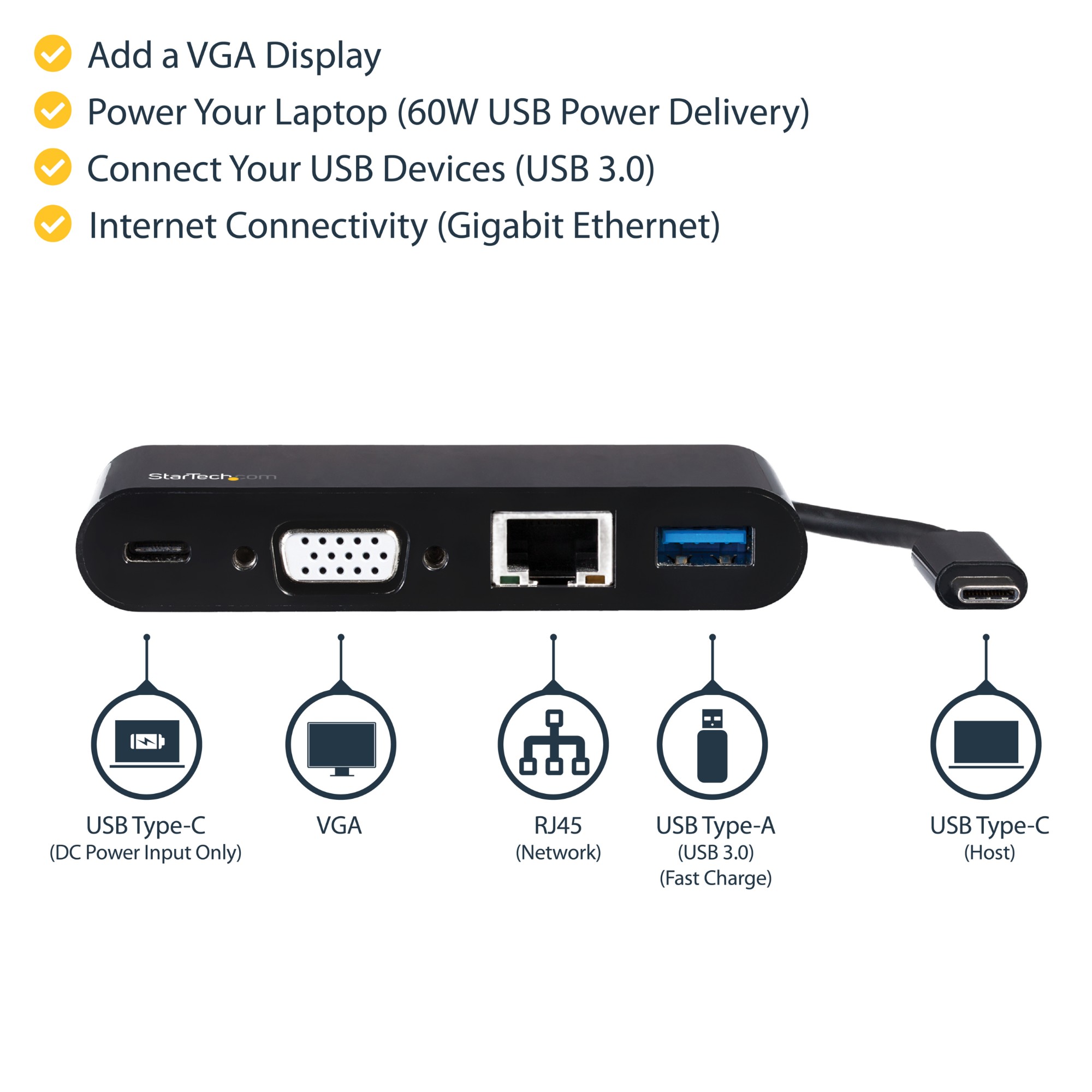

- Add VGA video output through the USB-C port of your laptop (Mac, Windows, Chrome OS compatible)
- Power the multiport adapter and your laptop at the same time, by connecting a compatible USB-C power adapter to the USB-C charge port
- Connect a USB device or fast-charge your smartphone with the USB 3.0 (USB-A) port
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | No |
| Connectivity technology | Wired |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 60 W |
| Network | |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| 10G support | No |
| Performance | |
| UASP support | Yes |
| Maximum digital resolution | 1920 x 1200 pixels |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Product colour | Black |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| Certification | CE, FCC, REACH |
| Housing material | Plastic |
| Technical details | |
| Product colour | Black |
| Data transfer rate | 5 Gbit/s |
| Cable length | 0.143 m |
| Sustainability certificates | RoHS |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | USB |
| Software | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina |
| Mac compatibility | Yes |
| Other operating systems supported | Chrome |
| Weight & dimensions | |

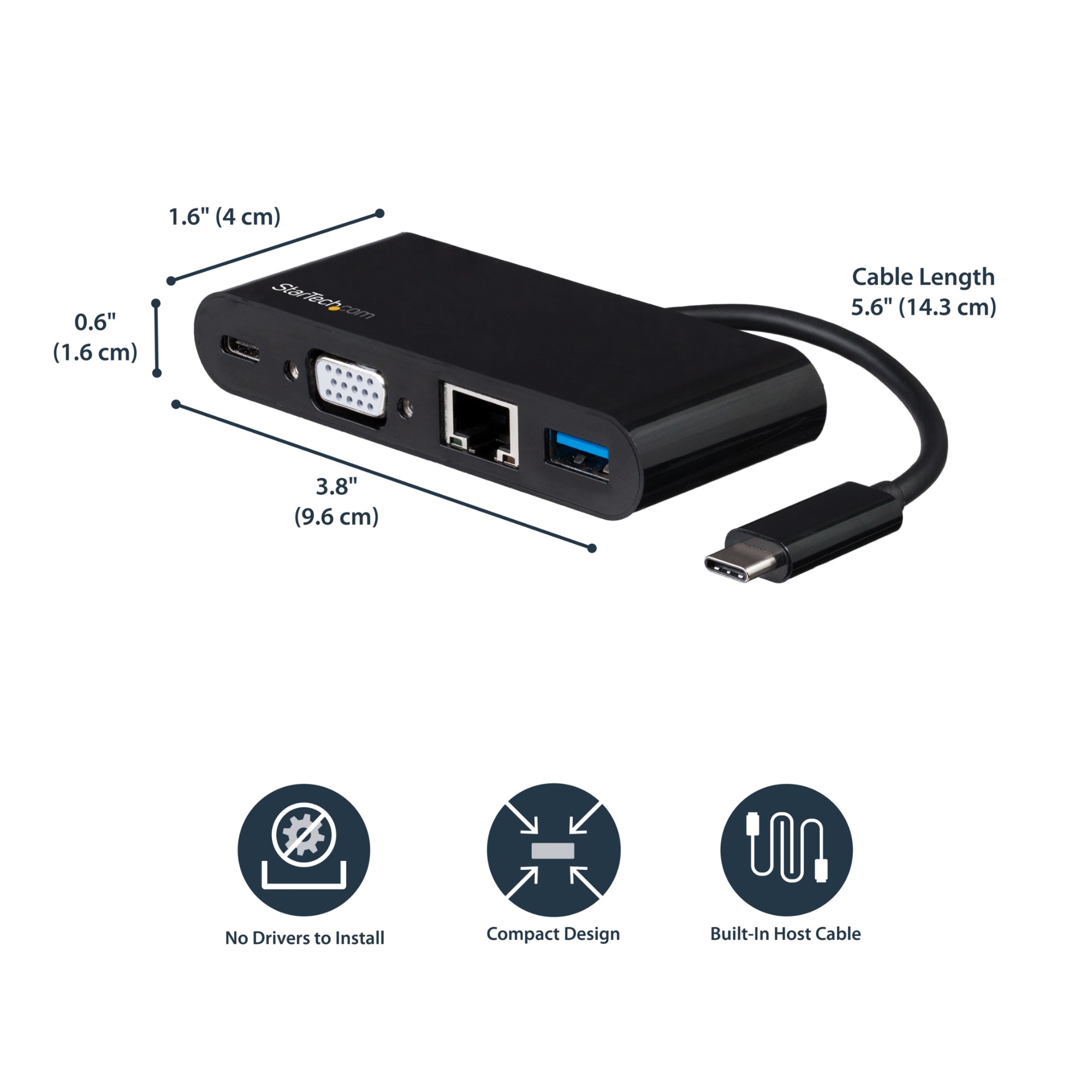

| Weight | 49 g |
| Width | 40 mm |
| Depth | 96 mm |
| Height | 16 mm |
| Package weight | 125 g |
| Package width | 140 mm |
| Package depth | 172 mm |
| Package height | 30 mm |
| Design | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina |
| Product colour | Black |
| Certification | CE, FCC, REACH |
| Packaging data | |
| Package weight | 125 g |
| Package width | 140 mm |
| Package depth | 172 mm |
| Package height | 30 mm |
| Packaging content | |

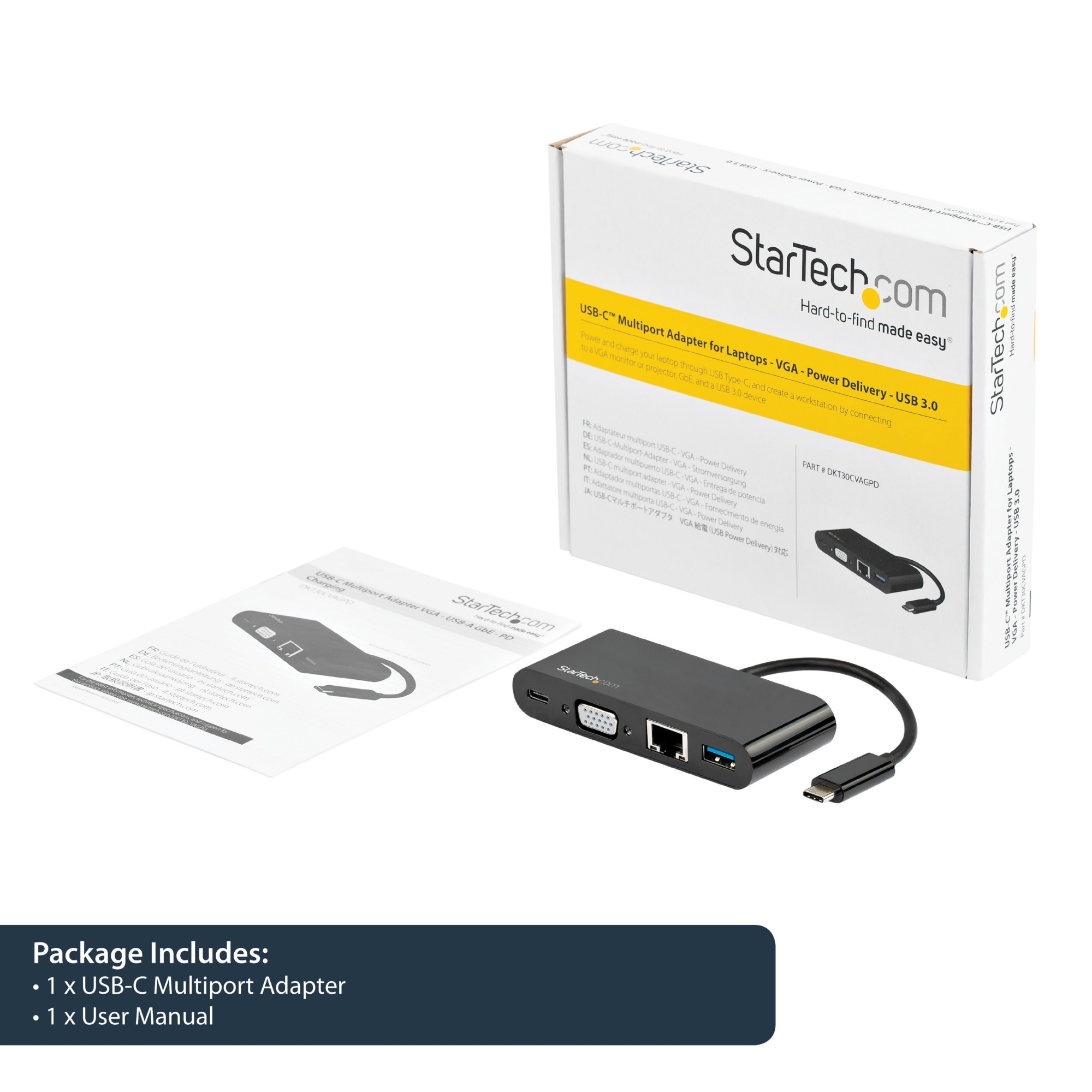

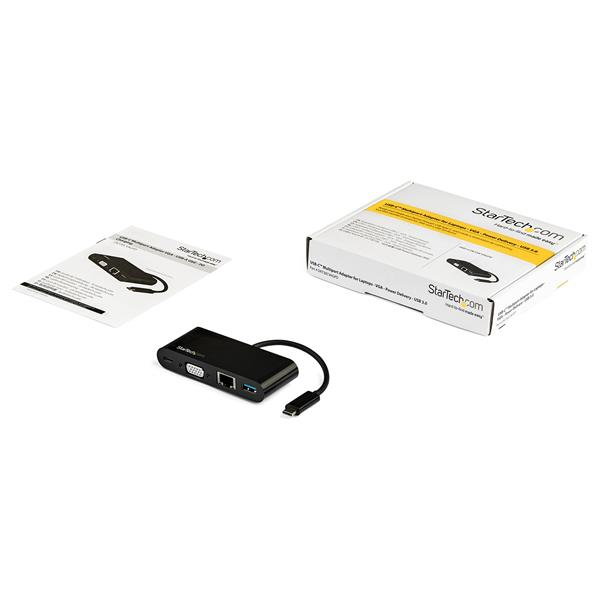

| Manual | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Certificates | |
| Certification | CE, FCC, REACH |
| Other features | |
| Chipset | VIA Labs - VL100, VIA Labs - VL813, NXP - PTN3355, Realtek - RTL8153 |
| Cable length | 0.143 m |
Specifications
UNSPSC Code
43211615
Brand
StarTech
Categories
Notebook Parts & Accessories
Category
Notebook Docks & Port Replicators
Product Colour
Black
