StarTech.com USB C Multiport Adapter with HDMI, VGA, Gigabit Ethernet & USB 3.0 - USB C to 4K HDMI or 1080p VGA Display Mini Dock Hub - USB Type-C Travel Docking Station for USB-C Laptops
Description
Ideal for mobile workers, this USB-C multiport adapter with HDMI and VGA gives you flexible video output. It’s like four adapters in one, with HDMI or VGA connections, a Gigabit Ethernet port and a USB 3.0 port, all through one connection to your laptop’s USB-C port. Plus, it features a hideaway cable for better cable management and easier travel.
With easy plug-and-play installation on most operating systems, the USB-C adapter doesn’t require additional drivers or software. It’s the perfect accessory for MacBook Pro, Dell XPS, Chromebook or other USB-C laptops.
Connect a UHD 4K HDMI or VGA Monitor
The USB Type-C multiport adapter keeps you prepared for business travel. You can extend your laptop’s display by connecting to a 4K HDMI (4096x2160 or 3840 x 2160p) or VGA (1920 x 1200p) monitor or projector, to make presentations or set up a workstation.
Convenient Cable Management
With multiple ports and an easily accessible hideaway cable, the USB-C all-in-one adapter makes an ideal travel dock, for easy connections on the go. Plus, the USB Type-C adapter is bus powered, so there’s no need to carry around a separate power adapter.
Enhance Productivity
Connect a flash drive, mouse or other peripheral to your USB-C or Thunderbolt 3 laptop using the USB 3.0 Type-A port. The USB-C adapter adds wired network connectivity with the GbE port, making it ideal in areas without Wi-Fi.
DKT30CHVCM is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage

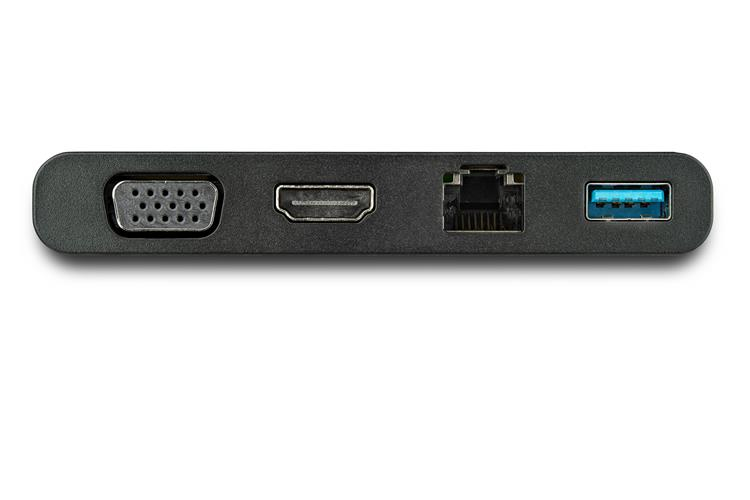

- 4-IN-1 PORTABLE DOCK: USB C Multiport Adapter w/ 4K 30Hz HDMI 1.4 or 1080p VGA single display video output, 5Gbps USB-A port & Gigabit Ethernet for USB-C/Thunderbolt 3 laptops, tablets, or smartphones

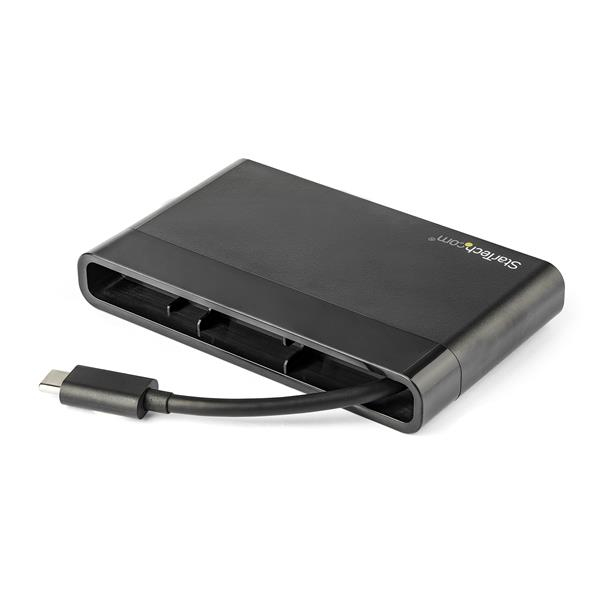

- IDEAL FOR TRAVEL: The mini USB C travel dock is compact, lightweight, & portable, features attached hideaway cable providing easy cable management to prevent tangles in laptop bags, pouches or pockets
- WIDE DEVICE COMPATIBILITY: Compatible with USB-C tablets or smartphones, this USB 3.0 (USB 3.1 Gen 1) Type C multiport hub works with HP, Lenovo, Dell, MacBook, Chromebooks and Samsung Galaxy devices
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB connector type | USB Type-C |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Microphone in | No |
| Connectivity technology | Wired |
| Network | |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Performance | |
| UASP support | Yes |
| Maximum digital resolution | 4096 x 2160 pixels |
| Maximum analog resolution | 1920 x 1200 pixels |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Product colour | Black |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| Certification | CE, FCC, REACH |
| Housing material | Plastic |
| Technical details | |
| Product colour | Black |
| Data transfer rate | 5 Gbit/s |
| Cable length | 0.085 m |
| Sustainability certificates | RoHS |
| Quantity per master (outer) case | 20 pc(s) |
| Master (outer) case width | 28.5 cm |
| Master (outer) case length | 33 cm |
| Master (outer) case height | 25 cm |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | USB |
| Software | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina |
| Mac compatibility | Yes |
| Other operating systems supported | Chrome |
| Weight & dimensions | |
| Weight | 82 g |
| Width | 62 mm |
| Depth | 105 mm |
| Height | 16 mm |
| Package weight | 168 g |
| Package width | 142 mm |
| Package depth | 175 mm |
| Package height | 30 mm |
| Design | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina |
| Product colour | Black |
| Certification | CE, FCC, REACH |
| Packaging data | |
| Package weight | 168 g |
| Package width | 142 mm |
| Package depth | 175 mm |
| Package height | 30 mm |
| Packaging content | |
| Manual | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Certificates | |
| Certification | CE, FCC, REACH |
| Logistics data | |
| Quantity per master (outer) case | 20 pc(s) |
| Master (outer) case width | 28.5 cm |
| Master (outer) case length | 33 cm |
| Master (outer) case height | 25 cm |
| Other features | |
| Chipset | Genesys Logic - GL3523, Realtek - RTL8153, Eton Technology - EJ899T, Parade Technologies - PS176, ITE - IT6516 |
| Cable length | 0.085 m |
Specifications
UNSPSC Code
43211615
Brand
StarTech
Categories
Notebook Parts & Accessories
Category
Notebook Docks & Port Replicators
Product Colour
Black
StarTech.com USB C Multiport Adapter with HDMI, VGA, Gigabit Ethernet & USB 3.0 - USB C to 4K HDMI or 1080p VGA Display Mini Dock Hub - USB Type-C Travel Docking Station for USB-C Laptops
