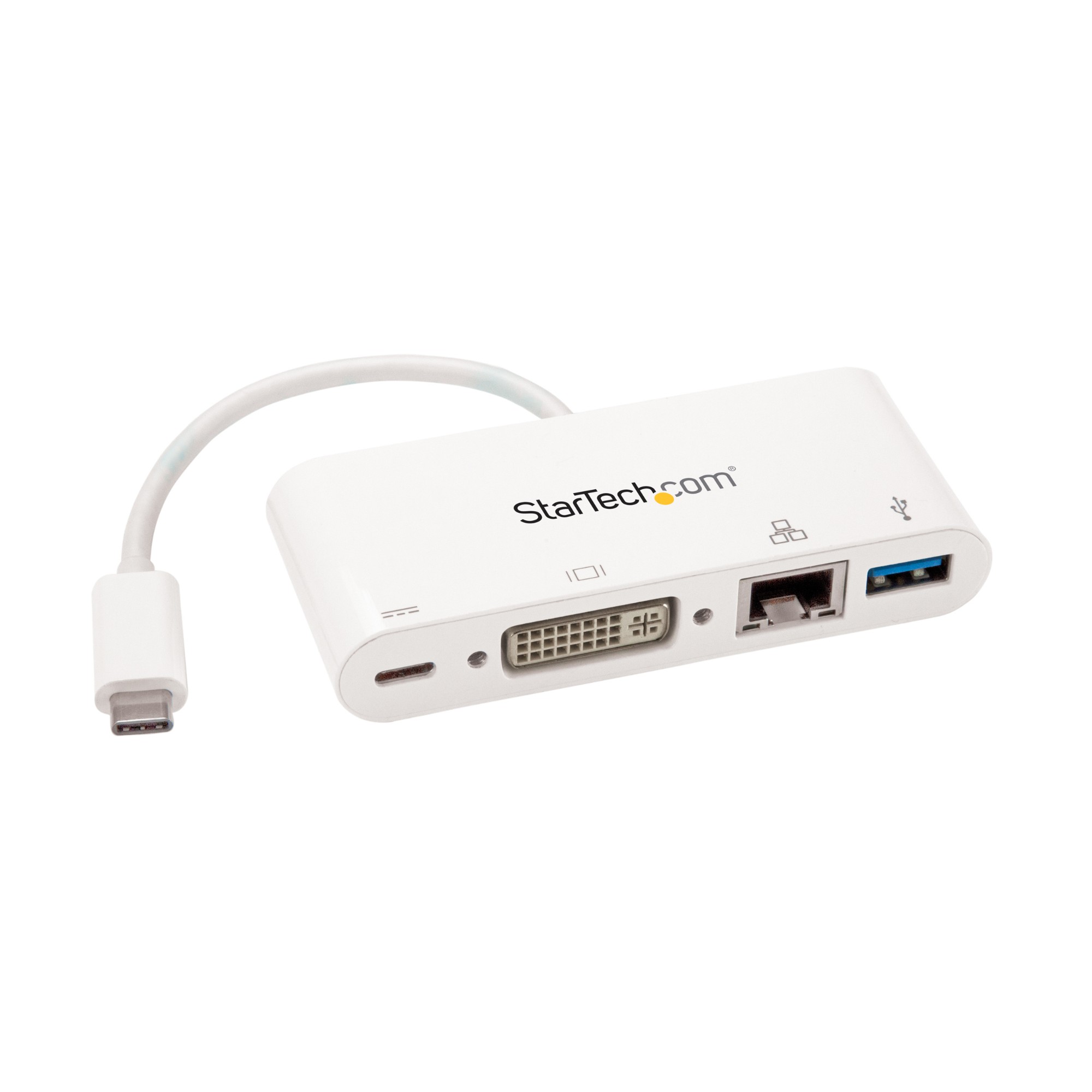

StarTech.com USB C Multiport Adapter - USB-C to DVI-D (Digital) Video Adapter with 60W Power Delivery Passthrough Charging, GbE, USB-A - Portable USB Type-C/Thunderbolt 3 Mini Laptop Dock
Description
This USB-C multiport adapter equips your USB-C Windows or MacBook laptop with essential connections, including a DVI output, a Gigabit Ethernet port and a USB 3.0 (Type-A) port. Plus, you can power both the adapter and your laptop simultaneously, with 60 W USB Power Delivery 2.0 and a USB-C power adapter.
All the Connections You Need
The versatile adapter combines the performance of three single-function adapters into one powerful solution.
USB-C to DVI adapter
USB-C Ethernet adapter
USB-C to USB -A adapter
Add a second display through the DVI port. Get fast, reliable network access through the Gigabit Ethernet RJ45 port and connect a USB 3.0 peripheral device, such as a mouse or USB flash drive, all with one, simple-to-use device.
Charge and Power Your Laptop While You Work
The multiport adapter’s USB-C port supports 60 W USB Power Delivery 2.0, so you can power and charge your laptop while you work.
Bring Productivity Wherever You Go
The USB Type-C multiport adapter is highly portable and features an integrated USB-C cable and USB-powered performance, so there’s no need to carry a separate power adapter with you.
The StarTech.com Advantage for Docking Stations
Maximum compatibility - StarTech.com has a docking station to fit every operating system, laptop brand, and connectivity need
Get more done faster - More ports and more displays maximize end user connectivity and productivity
Quick installation - eliminate deployment headaches that waste time and frustrate end users
IT Grade quality - trusted by IT pros around the world for our rigorous in-house product testing, robust compliance, and lifetime multilingual technical support
The DKT30CDVPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP Alt Mode.
The StarTech.com Advantage

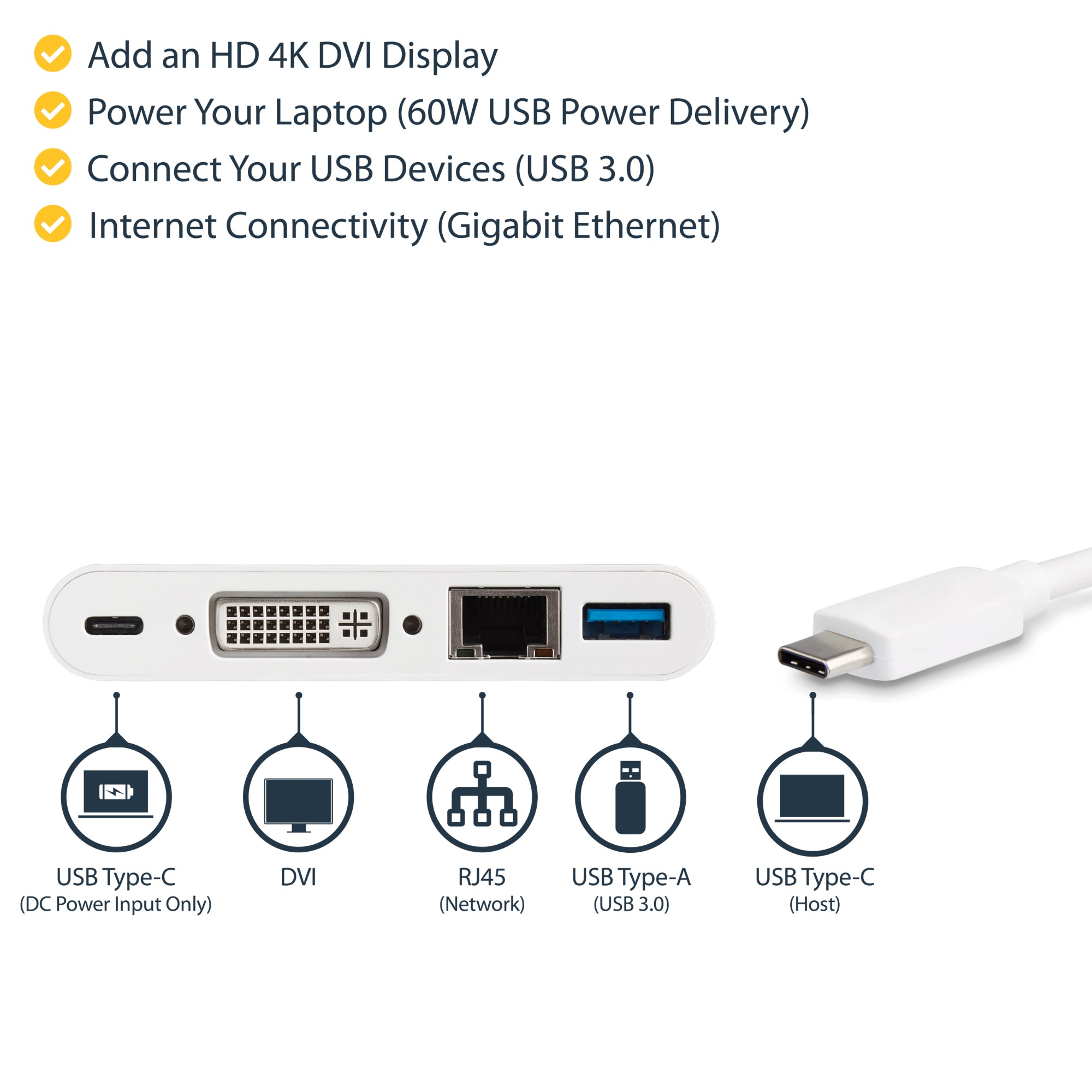

- 4-IN-1 USB-C MULITPORT ADAPTER: This USB C mini dock has DVI-D video output, Gigabit Ethernet port, 1x 5Gbps USB-A 3.0 port & 60W Power Delivery pass through charging, to work from home or in office
- DVI DIGITAL VIDEO OUTPUT: The DVI Digital video output on this USB Type-C multiport adapter provides a sharper digital display image and supports resolutions up to 1920x1200 / 1080p (Single Link)
- POWERED BY LAPTOP OR EXTERNAL ADAPTER: The dock can be USB bus powered or with a USB-C power adapter; Charge the laptop via PD Passthrough w/ your USB-C power adapter (7W for dock, 53W for charging)
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB connector type | USB Type-A, USB Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| DVI-I ports quantity | 1 |
| Microphone in | No |
| Connectivity technology | Wired |
| Network | |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Wake-on-LAN ready | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| UASP support | Yes |
| Maximum digital resolution | 1920 x 1200 pixels |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Product colour | White |
| Card reader integrated | No |
| Brand compatibility | Any brand |
| Data transfer rate | 5000 Gbit/s |
| Certification | CE, FCC, REACH |
| Technical details | |
| Product colour | White |
| Brand compatibility | Any brand |
| Data transfer rate | 5000 Gbit/s |
| Cable length | 0.14 m |
| Sustainability certificates | RoHS |
| Quantity per master (outer) case | 60 pc(s) |
| Master (outer) case width | 33 cm |
| Master (outer) case length | 53 cm |
| Master (outer) case height | 31 cm |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | USB |
| Power supply | 60 W |
| Software | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 95 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| Mac compatibility | Yes |
| Other operating systems supported | Chrome |

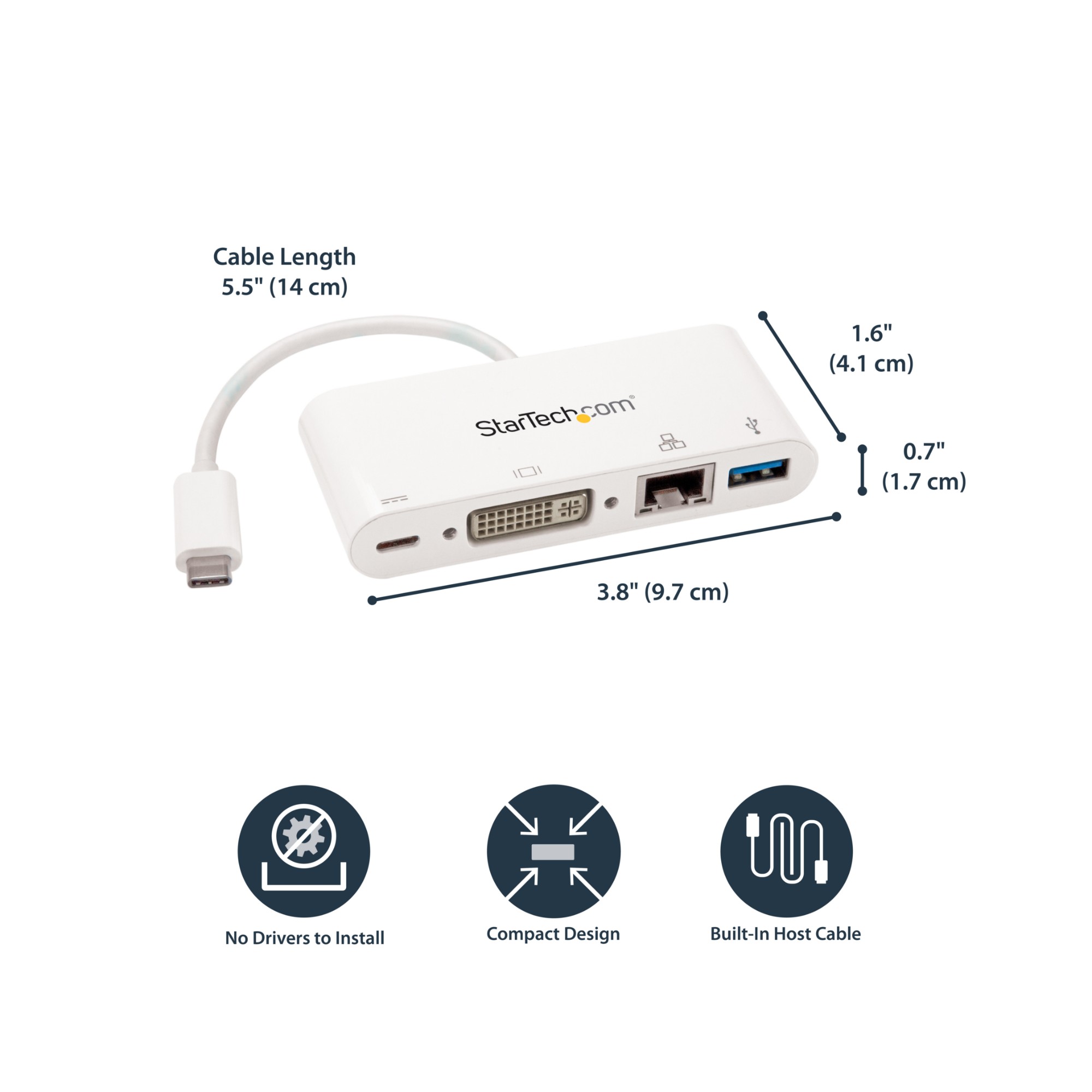

| Weight & dimensions | |
| Weight | 50 g |
| Width | 41 mm |
| Depth | 97 mm |
| Height | 17 mm |
| Package weight | 130 g |
| Package width | 142 mm |
| Package depth | 172 mm |
| Package height | 30 mm |
| Design | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 95 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave |
| Product colour | White |
| Certification | CE, FCC, REACH |
| Packaging data | |
| Package weight | 130 g |
| Package width | 142 mm |
| Package depth | 172 mm |
| Package height | 30 mm |
| Packaging content | |
| Manual | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Certificates | |
| Certification | CE, FCC, REACH |
| Logistics data | |
| Quantity per master (outer) case | 60 pc(s) |
| Master (outer) case width | 33 cm |
| Master (outer) case length | 53 cm |
| Master (outer) case height | 31 cm |
| Other features | |
| Chipset | VLI - VL812, VLI - VL100, PS - PS171, Realtek - RTL8153 |
| Cable length | 0.14 m |
