StarTech.com USB C Multiport Adapter - Portable USB-C Dock with 4K HDMI - 100W PD 3.0 Pass-Through, 1x USB-A, 1x USB-C, GbE - Thunderbolt 3 & USB Type-C Laptop Travel Dock - Mac & Windows
Description
Here’s an all-in-one USB-C adapter for your MacBook Pro, Dell XPS or other USB-C laptop, with all the ports you need for maximum productivity. The USB-C multiport adapter with HDMI turns your laptop into a portable workstation, adding 4K video, Gigabit Ethernet, and two USB 3.0 ports, plus laptop charging with Power Delivery 3.0.
Connect a UHD 4K HDMI Monitor
Use the USB-C adapter as a portable docking station, connecting your laptop to a 4K HDMI monitor (4096 x 2160p) to create a workstation or make presentations. It also connects to an ultrawide monitor.
Connect Your Devices
The USB-C adapter gives you one USB-C port to connect a USB-C device, and one USB-A port to attach a mouse, keyboard or other peripheral. Fast-charge your mobile device using the USB-A port.
Laptop Charging with PD 3.0
With support for 100W Power Delivery 3.0, the USB Type-C multiport adapter provides up to 92W laptop charging, and powers your peripherals when connected to a USB-C power adapter. PD 3.0 features Fast Role Swap to prevent USB data disruption when you unplug to switch power sources (USB-C power adapter to bus power).

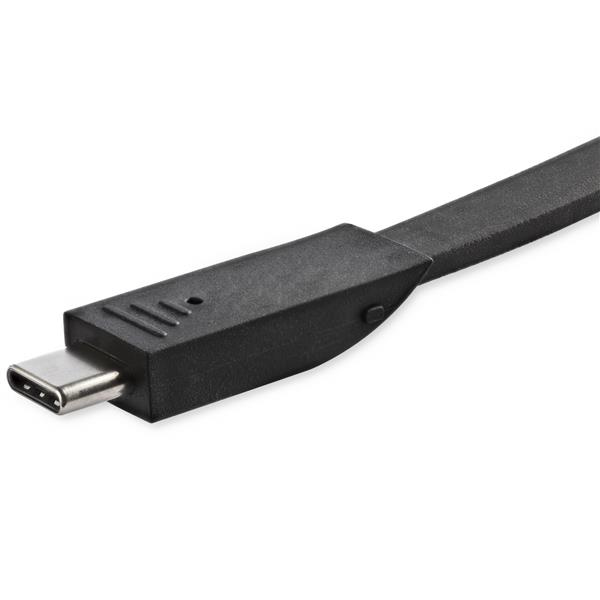

Wrap-Around Cable
The USB Type-C multiport adapter has a built-in wrap-around cable for easy connection and portability.
Reliable Network Connectivity
The Gigabit Ethernet port ensures reliable wired network access.
DKT30CHCPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP Alt Mode.
The StarTech.com Advantage
- PORTABLE DOCKING STATION: 4K 30Hz HDMI UHD video (4096x2160p/3840x2160p), Gigabit Ethernet, 1x USB-A (5Gbps, Fast Charging), 1x USB-C (5Gbps) w/ 100W PD 3.0 Passthrough; supports ultrawide monitors
- DESIGNED FOR PORTABILITY: Compact USB-C multiport adapter has a 6" (15cm) wrap around cable to prevent tangling in your bag; for on-the-go users, work from home, office workstations & boardrooms
- WIDE DEVICE COMPATIBILITY: Travel dock for USB-C laptops, ultrabooks, chromebooks, tablets & phones like MacBook Pro/Air, HP EliteBook, Dell XPS/Latitude, Lenovo ThinkPad X1 & Surface Laptop 3/Book 3
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| USB connector type | USB Type-A, USB Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| Microphone in | No |
| Connectivity technology | Wired |
| USB Power Delivery | Yes |
| USB Power Delivery revision | 3.0 |
| USB Power Delivery up to | 100 W |
| Network | |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| UASP support | Yes |
| Maximum digital resolution | 4096 x 2160 pixels |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Product colour | Black |
| Card reader integrated | No |
| Data transfer rate | 5 Gbit/s |
| Certification | CE, FCC, REACH |
| HD type | 4K Ultra HD |
| Housing material | Plastic |
| Technical details | |
| Product colour | Black |
| Data transfer rate | 5 Gbit/s |
| Sustainability certificates | RoHS |
| Quantity per master (outer) case | 60 pc(s) |
| Master (outer) case width | 33 cm |
| Master (outer) case length | 53 cm |
| Master (outer) case height | 31 cm |
| Storage | |
| Card reader integrated | No |
| Power | |
| Power source type | USB |
| Software | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks |
| Other operating systems supported | Chrome |
| Weight & dimensions | |
| Weight | 127 g |
| Width | 38 mm |
| Depth | 167 mm |
| Height | 7.5 mm |
| Package weight | 135 g |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Design | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks |
| Product colour | Black |
| Certification | CE, FCC, REACH |
| Packaging data | |
| Package weight | 135 g |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Packaging content | |
| Manual | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Certificates | |
| Certification | CE, FCC, REACH |
| Logistics data | |
| Quantity per master (outer) case | 60 pc(s) |
| Master (outer) case width | 33 cm |
| Master (outer) case length | 53 cm |
| Master (outer) case height | 31 cm |
| Other features | |
| Chipset | VIA/VLI - VL102, VIA/VLI - VL817, Parade Technologies - PS176, RealTek - RTL8153 |
Specifications
UNSPSC Code
43211615
Brand
StarTech.com
Categories
Notebook Parts & Accessories
Category
Notebook Docks & Port Replicators
Product Colour
Black
