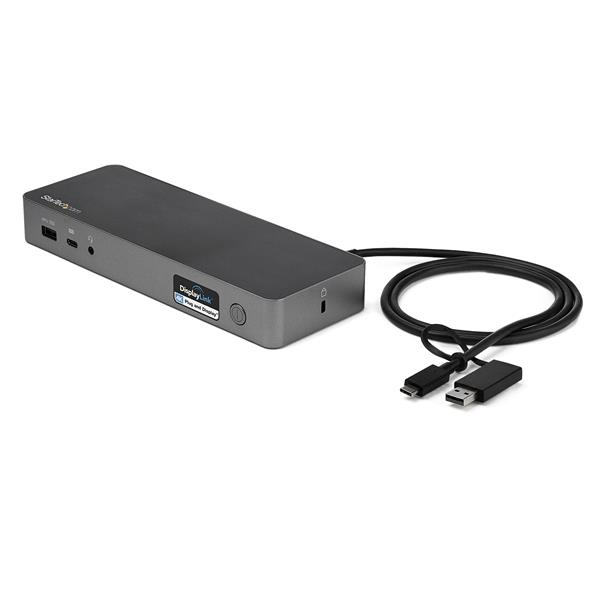

StarTech.com USB-C & USB-A Dock - Hybrid Universal Laptop Docking Station w/ Dual Monitor 4K60Hz HDMI & DisplayPort - USB 3.1 Gen 1 Hub, GbE - 60W Power Delivery - Windows, Mac & Chrome
Description
Create a dual-4K 60Hz workstation with this certified universal laptop docking station for USB-C and USB-A laptops. The USB-C dock features 60W Power Delivery 3.0, dual HDMI and/or DisplayPort monitors, fast-charge, and both USB-C and USB-A peripheral ports.
The Uniquely Universal Host Cable
The USB-C dock comes with a universal host cable that is designed with an attached USB-C to USB-A adapter to accommodate USB-A laptops. The cable also features an extended length of 1 meter (3.3 ft.) to support a wide variety of workstation setups.
Flexible Monitor Connections
This is a dual 4K60Hz video docking station with support for both Ultra HD DisplayPort and/or HDMI monitors that lets you configure your video connections to best suit your needs.
Dual 4K DisplayPort | Up to 4096 x 2160p @ 60Hz
Dual 4K HDMI | Up to 4096 x 2160p @ 60Hz
Single 4K DisplayPort + Single 4K HDMI | Up to 4096 x 2160p @ 60Hz
Single 5K DisplayPort* | Up to 5120 × 2880
*Requires monitor support for 5K using two DP ports
Certified for Universal Compatibility & Reliability
This docking station is fully certified to meet top industry standards for USB-IF (USB 3.1 Gen 1, USB Type-C and Power Delivery), VESA DisplayPort and DisplayLink (video connections) certification to guarantee the highest quality, reliability, and compatibility.
60W Power Delivery
Using a single cable, the dock powers and charges your laptop as you work with 60W PD for faster charging, using the 135W power adapter.
Easy and Convenient Setup
For fast setup right out of the box, the combo cable (USB-C with attached USB-A adapter) lets you connect any laptop. The dock has mounting holes for workstation mounting (bracket not included).
The Connections You Need
Connect your devices with four USB 3.1 ports: 1x USB-C and 3x USB-A. Fast-charge your USB-C or USB-A smartphone. The dock provides a GbE port (PXE Boot support & Wake-on-LAN) and 3.5 mm 4-position headset audio jack. It also includes a security lock slot (K-slot) to protect against theft.
For more installation flexibility, you can use StarTech.com mounting brackets (SSPMSUDWM& SSPMSVESA) that are specifically designed for our docks and hubs, to mount your dock to a desk, wall, or other surfaces to give you the customized setup you need.
The IT Pro’s Choice Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
DK30C2DPPDUE is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- HYBRID DOCK: Universal docking station works with USB Type-C, Thunderbolt 3 & USB Type-A laptop computers, using a 2-in-1 USB-C/USB-A 3.1 Gen 1 cable, ideal for hoteling or shared workspace setup
- GUARANTEED COMPATIBILITY: USB-C & USB-A hybrid dock is USB-IF, VESA & DisplayLink certified for max performance & universal compatibility w/ Dell, HP, Lenovo & Apple where mixed laptop brands deployed
- FLEXIBLE DUAL MONITOR VIDEO OUTPUTS: This Dual 4K60Hz UHD USB-C & USB-A docking station lets you connect multiple screens: Dual DisplayPort or Dual HDMI or DP + HDMI displays for easy deployment"
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| Headphone connectivity | 3.5 mm |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 2 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Connectivity technology | Wired |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 60 W |
| Network | |
| Full duplex | Yes |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| 10G support | No |
| Performance | |
| UASP support | Yes |
| Maximum digital resolution | 5120 x 2880 pixels |
| Full duplex | Yes |
| Product colour | Black, Grey |
| Card reader integrated | No |
| Cable lock slot | Yes |
| RoHS compliance | Yes |
| Data transfer rate | 5 Gbit/s |
| Certification | CE, FCC, REACH |
| Cable lock slot type | Kensington |
| Housing material | Plastic |
| Technical details | |
| Product colour | Black, Grey |
| Cable lock slot | Yes |
| Data transfer rate | 5 Gbit/s |
| Storage | |
| Card reader integrated | No |
| Power | |
| Input current | 2.5 A |
| Power plug type | Type N |
| Compatible power plug types | EU,UK |
| AC input voltage | 100 - 240 V |
| Power consumption (typical) | 135 W |
| Output voltage | 20 V |
| Output current | 6.75 A |
| Software | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 95 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina |
| Mac compatibility | Yes |
| Other operating systems supported | Chrome |
| Weight & dimensions | |
| Weight | 280 g |
| Width | 80 mm |
| Depth | 220 mm |
| Height | 30 mm |
| Package weight | 1.3 kg |
| Package width | 155 mm |
| Package depth | 270 mm |
| Package height | 90 mm |
| Design | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 95 |
| Mac operating systems supported | Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina |
| Product colour | Black, Grey |
| Cable lock slot | Yes |
| RoHS compliance | Yes |
| Certification | CE, FCC, REACH |
| Cable lock slot type | Kensington |
| Packaging data | |
| Package weight | 1.3 kg |
| Package width | 155 mm |
| Package depth | 270 mm |
| Package height | 90 mm |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | USB Type-A to USB Type-C |
| AC adapter included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Certificates | |
| RoHS compliance | Yes |
| Certification | CE, FCC, REACH |
| Other features | |
| Chipset | DisplayLink - DL6950, Genesys Logic - GL3523, Fresco Logic - FL7102, Fresco Logic - FL7201, VIA Labs - VL160, RealTek - RTL8153, Texas Instruments - TS3A225E |
