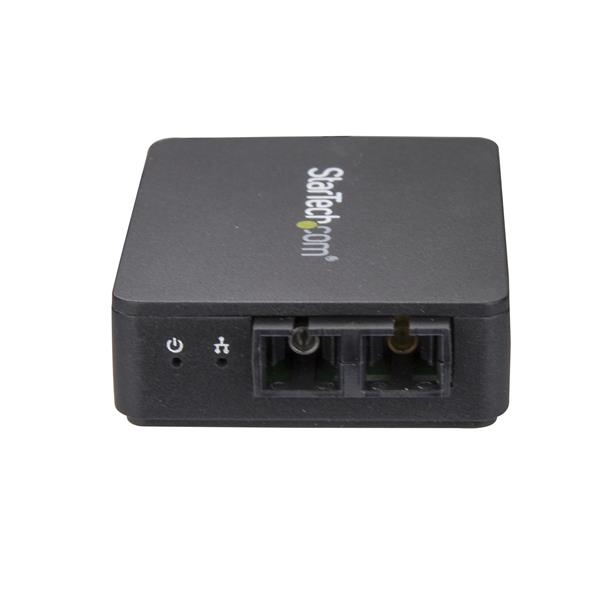

StarTech.com USB 3.0 to Fiber Optic Converter - 1000Base-SX SC
Description
| Ports & interfaces | |
|---|---|
| Internal | No |
| PCI version | 3.0 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SC |
| Interface | Fiber |
| Host interface | USB |
| Connectivity technology | Wired |
| Bandwidth | |
| Maximum data transfer rate | 1000 Mbit/s |
| Network | |
| Chipset | Realtek - RTL8153-VB-CG, Microsemi - VSC8211XVW |
| VLAN tagging | Yes |
| Networking standards | IEEE 802.1Q,IEEE 802.3z |
| Wake-on-LAN ready | Yes |
| Maximum operating distance | 550 m |
| Fiber ethernet cabling technology | 1000BASE‑SX |
| Maximum data transfer rate | 1000 Mbit/s |
| Technical details | |
| Product colour | Black |
| Wake-on-LAN ready | Yes |
| Plug and Play | Yes |
| Cable length | 0.195 m |
| Sustainability certificates | RoHS |
| Software | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Indication | |
| LED indicators | Activity, Link, Power |
| Performance | |
| Server operating systems supported | Windows Server 2008,Windows Server 2012,Windows Server 2016,Windows Server 2019 |
| Wake-on-LAN ready | Yes |
| Plug and Play | Yes |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Cable length | 0.195 m |
| Design | |
| Product colour | Black |
| Chipset | Realtek - RTL8153-VB-CG, Microsemi - VSC8211XVW |
| Certification | CE, FCC |
| Plug and Play | Yes |
| Internal | No |
| LED indicators | Activity, Link, Power |
| Power | |
| USB powered | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| System requirements | |
| Server operating systems supported | Windows Server 2008,Windows Server 2012,Windows Server 2016,Windows Server 2019 |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Package width | 170 mm |
| Package depth | 142 mm |
| Package height | 30 mm |
| Package weight | 54 g |
| Width | 55 mm |
| Depth | 260 mm |
| Height | 20 mm |
| Weight | 100 g |
| Packaging data | |
| Package width | 170 mm |
| Package depth | 142 mm |
| Package height | 30 mm |
| Package weight | 54 g |
| Quick start guide | Yes |
| Certificates | |
| Certification | CE, FCC |
| Other features | |
| Chipset | Realtek - RTL8153-VB-CG, Microsemi - VSC8211XVW |
| Quick start guide | Yes |
| Cable length | 0.195 m |
| Packaging content | |
| Quick start guide | Yes |
Specifications
UNSPSC Code
43201404
Brand
StarTech.com
Categories
System Components
Category
Networking Cards
Connectivity technology
Wired
Host interface
Usb
Interface
Fiber
Internal
N
