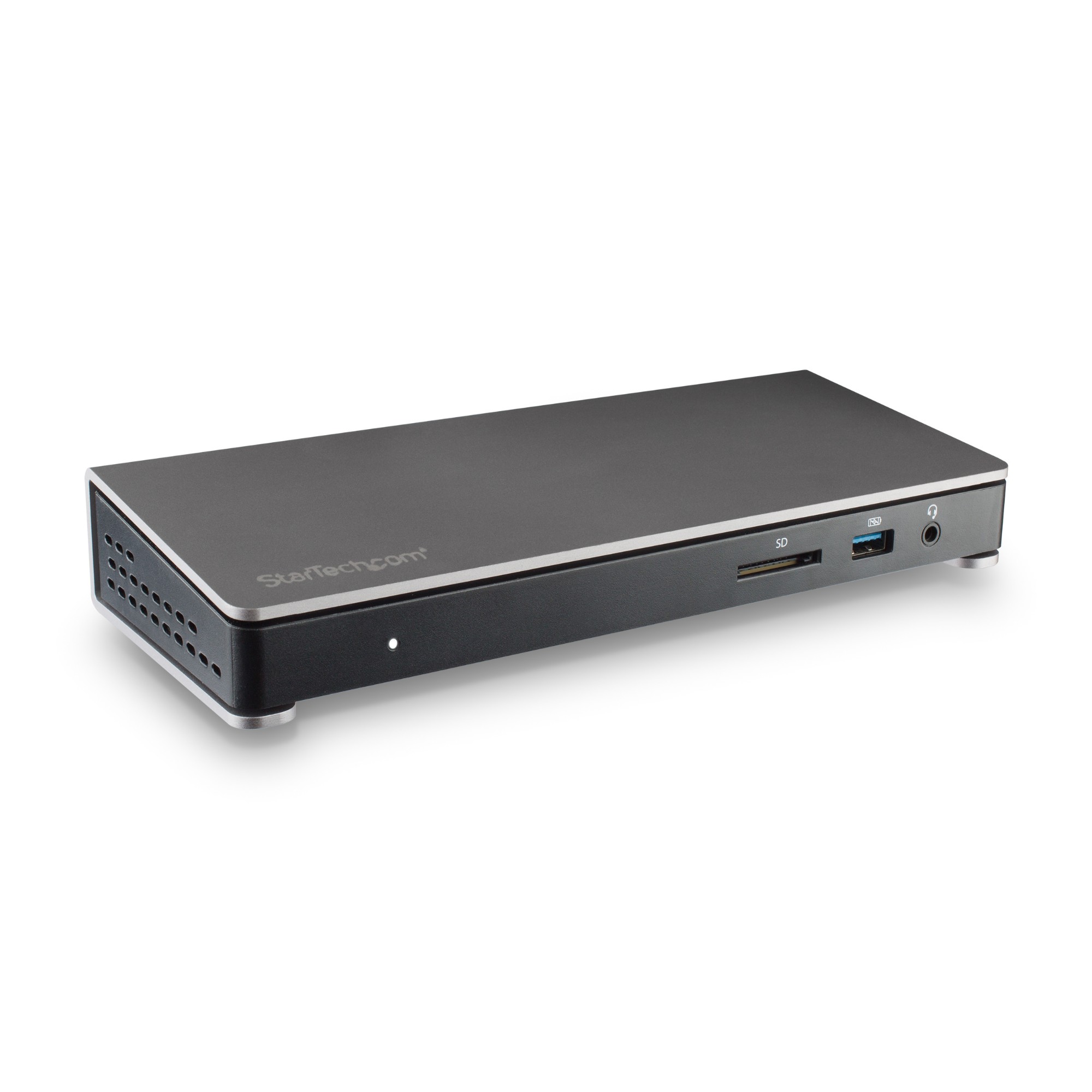

StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort - 85W Power Delivery Charging - 6-Port USB 3.0 Hub, SD 4.0, GbE, Audio - Windows & Mac
Description
Easily transform your Thunderbolt 3 equipped MacBook Pro or Windows laptop into a dual-4K workstation with up to 40Gbps of throughput. The high-quality TB3 dock features six USB 3.0 ports, 85W Power Delivery to charge your laptop, and an SD card reader.

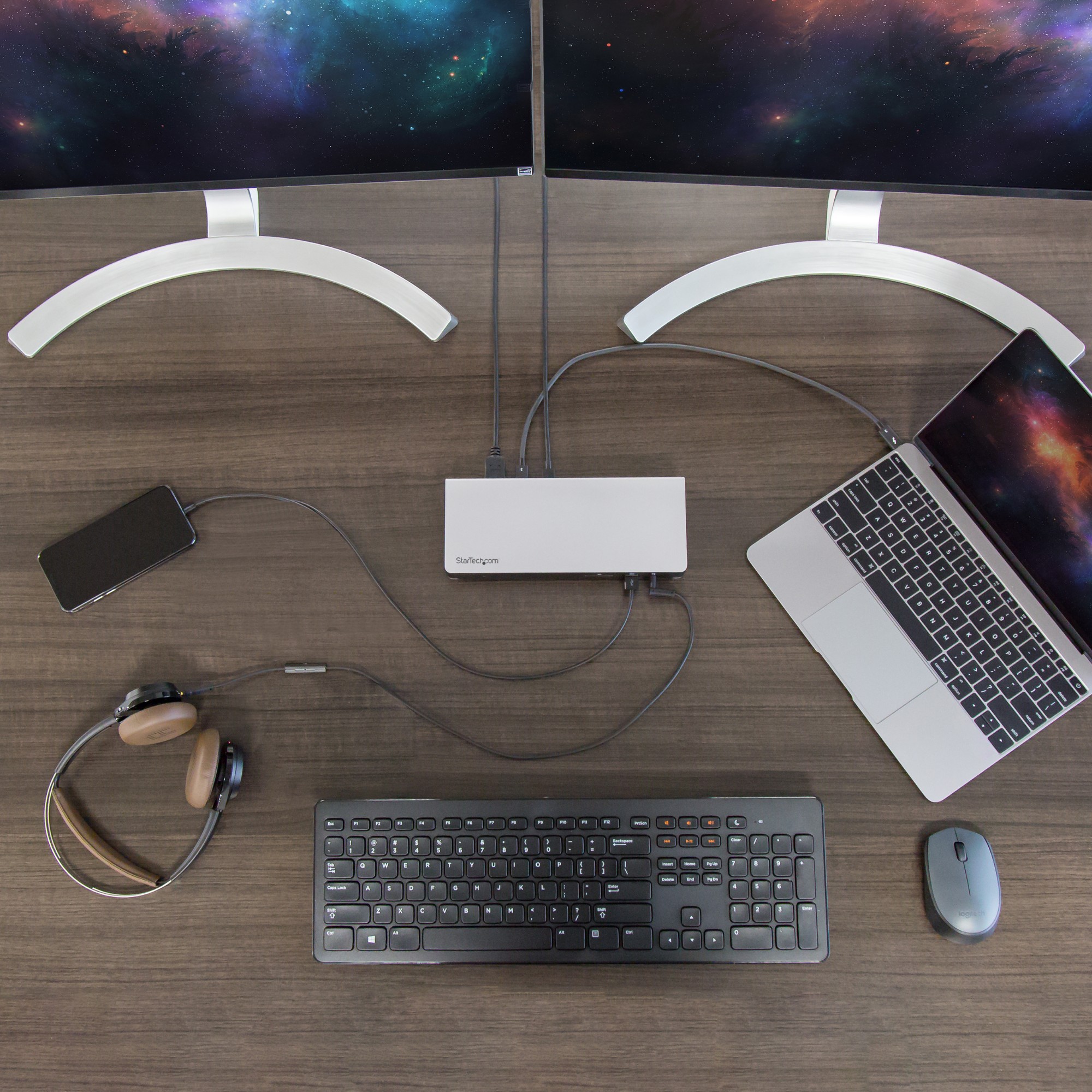

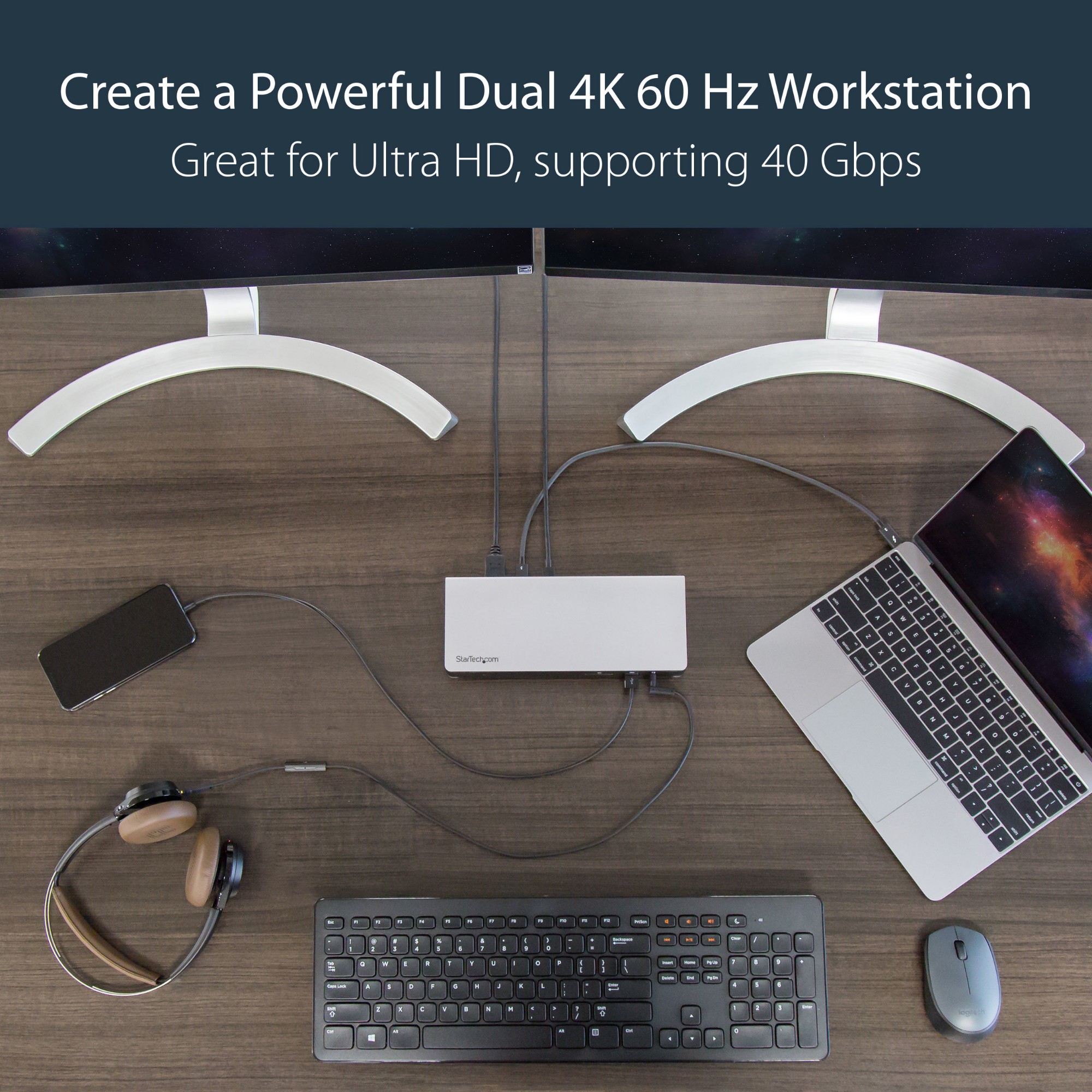

Create a Dual-4K 60Hz Workstation
This dual-monitor docking station supports 40Gbps speeds and 4K (4096 x 2160) resolution at 60Hz on two monitors, enabling resource-demanding applications on independent displays without draining system resources. The TB3 dock can support 5K (5120 x 2880) resolutions @ 60Hz on a single display.
Connect your laptop to:
1 x 4K monitor via the DP Port
1 x 4K monitor via the TB3 USB-C Port (1.8 m cable included)
OR
1 x 5K monitor via the DP and TB3 USB-C ports
Easy Installation & Deployment
Simply connect the TB3 dock to your laptop with the included TB3 cable and start working immediately. No time-consuming driver installations are required. Set up a second monitor using the included USB-C to DisplayPort cable adapter, eliminating the need for extra adapters.

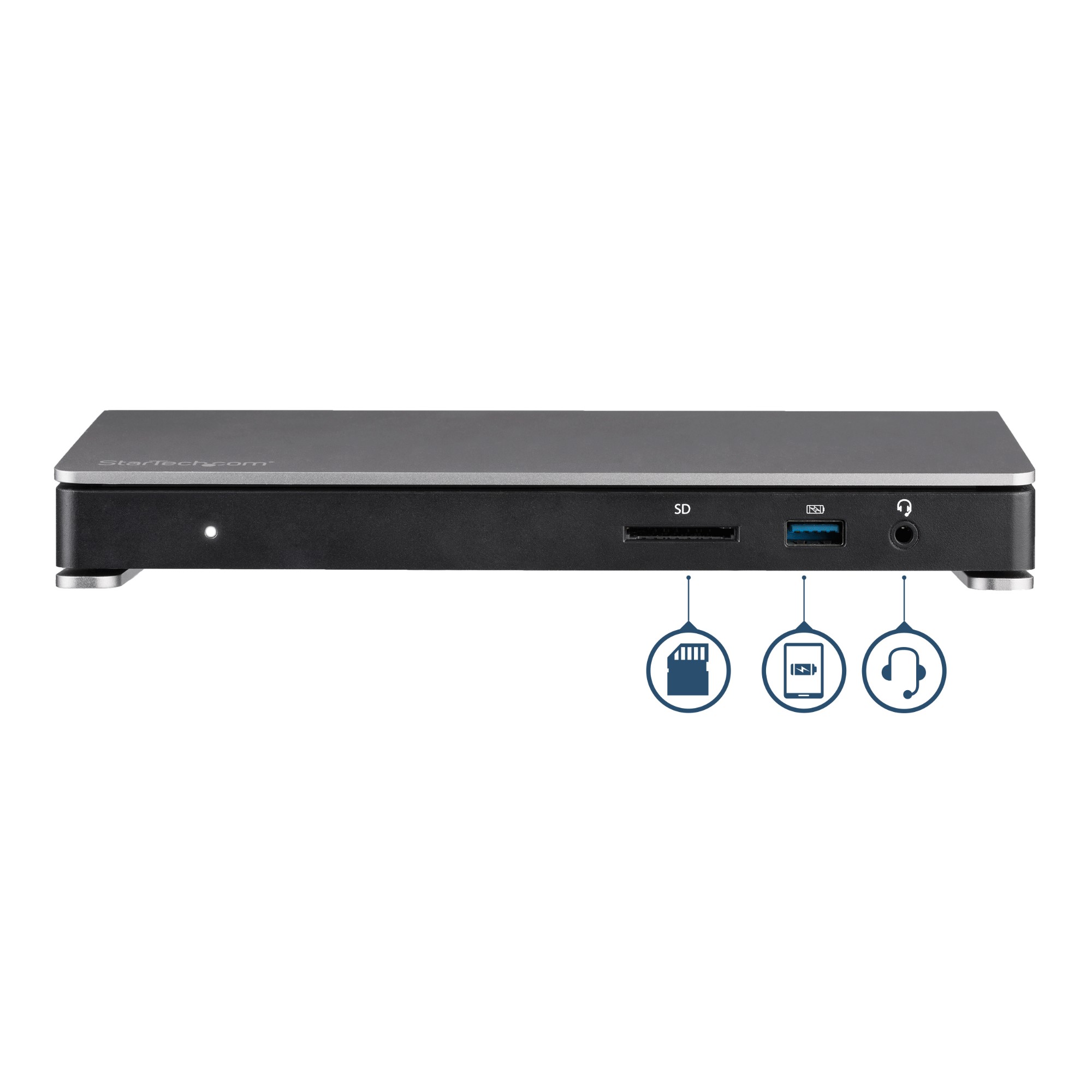

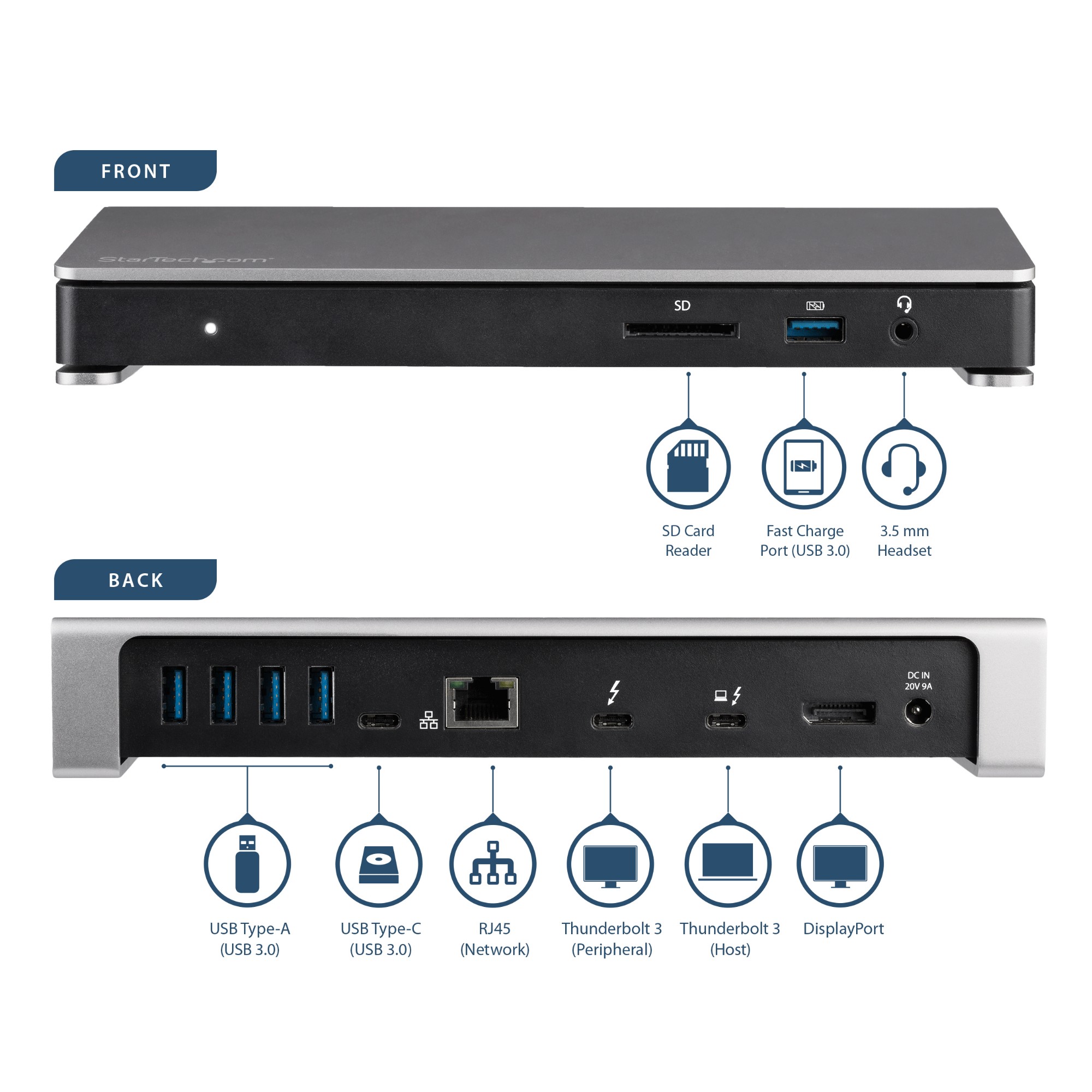

Plenty of Ports Including SD Card Reader

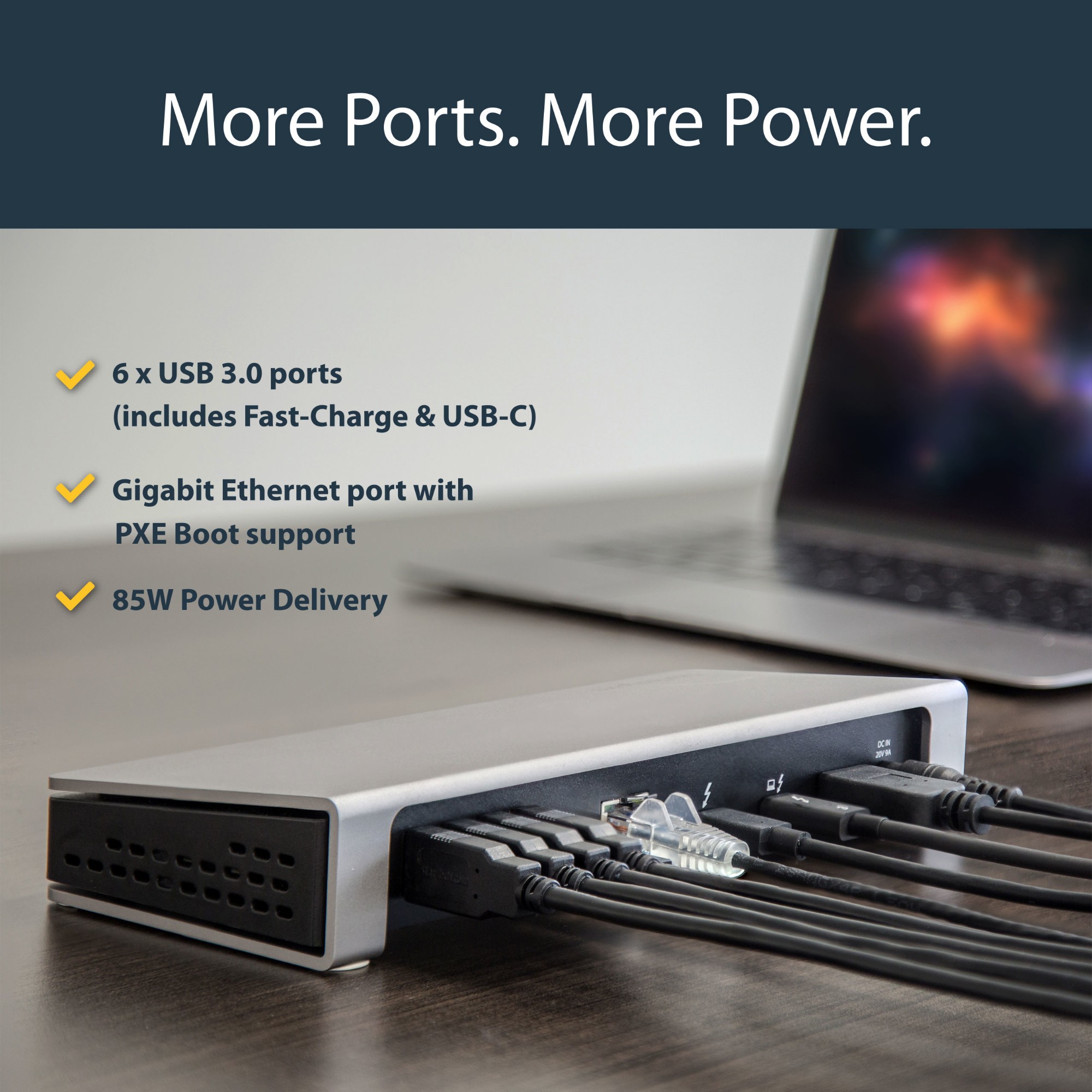

The TB3 docking station offers six USB 3.0 ports, including a Fast-Charge port and USB-C port, an GbE port and audio/microphone port. The built-in SD card reader adds storage not usually available on most docking stations.
85W Power Delivery
Using a single cable, the universal laptop docking station provides up to 85W of Power Delivery to power and charge your laptop, and power your peripherals with its 180W power adapter.
TB3DOCK2DPPU is backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- THUNDERBOLT 3 CERTIFIED DOCK: Aluminum, 40Gbps dual 4K 60Hz DP & TB3 (USB-C) video output or single monitor 5K 30Hz, 85W PD, USB 3.0 Hub, SD 4.0 card reader, Gigabit Ethernet & Headset port
- 85W POWER DELIVERY: Thunderbolt 3 Dock can power and charge Ultrabooks & workstation laptops such as MacBook Pro (15 & 16), MacBook Air, HP, Lenovo ThinkPad & Dell XPS using macOS and Windows.
- MORE USB DEVICE PORTS: TB3 docking station has a 6-port USB 3.1 Gen 1 5Gbps Hub (5x USB-A, 1x USB-C ports) w/ 1x BC 1.2 (1.5A) fast charging always-on port that works with or without laptop connected"
| Ports & interfaces | |
|---|---|
| Combo headphone/mic port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Thunderbolt 3 ports quantity | 2 |
| Headphone connectivity | 3.5 mm |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| Connectivity technology | Wired |
| USB Power Delivery | Yes |
| USB Power Delivery up to | 85 W |
| Network | |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| UASP support | Yes |
| Maximum digital resolution | 5120 x 2880 pixels |
| Full duplex | Yes |
| Auto MDI/MDI-X | Yes |
| Product colour | Black |
| Card reader integrated | Yes |
| Data transfer rate | 40 Gbit/s |
| Compatible memory cards | MMC,MicroSDHC,MicroSDXC,SD,SDHC,SDXC |
| Certification | CE, FCC, REACH |
| Housing material | Aluminium |
| Technical details | |
| Product colour | Black |
| Data transfer rate | 40 Gbit/s |
| Quantity per master (outer) case | 10 pc(s) |
| Master (outer) case width | 31 cm |
| Master (outer) case length | 48 cm |
| Master (outer) case height | 31.4 cm |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | MMC,MicroSDHC,MicroSDXC,SD,SDHC,SDXC |
| Power | |
| Input current | 2.5 A |
| Power plug type | Type N |
| Compatible power plug types | EU,UK |
| AC input voltage | 100 - 240 V |
| Power consumption (standby) | 180 W |
| Output voltage | 20 V |
| Output current | 9 A |
| Software | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina |
| Mac compatibility | Yes |
| Weight & dimensions | |
| Weight | 489 g |
| Width | 87 mm |
| Depth | 222 mm |
| Height | 34 mm |
| Package weight | 1.5 kg |
| Package width | 145 mm |
| Package depth | 295 mm |
| Package height | 90 mm |
| Design | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina |
| Product colour | Black |
| Certification | CE, FCC, REACH |
| Packaging data | |
| Package weight | 1.5 kg |
| Package width | 145 mm |
| Package depth | 295 mm |
| Package height | 90 mm |

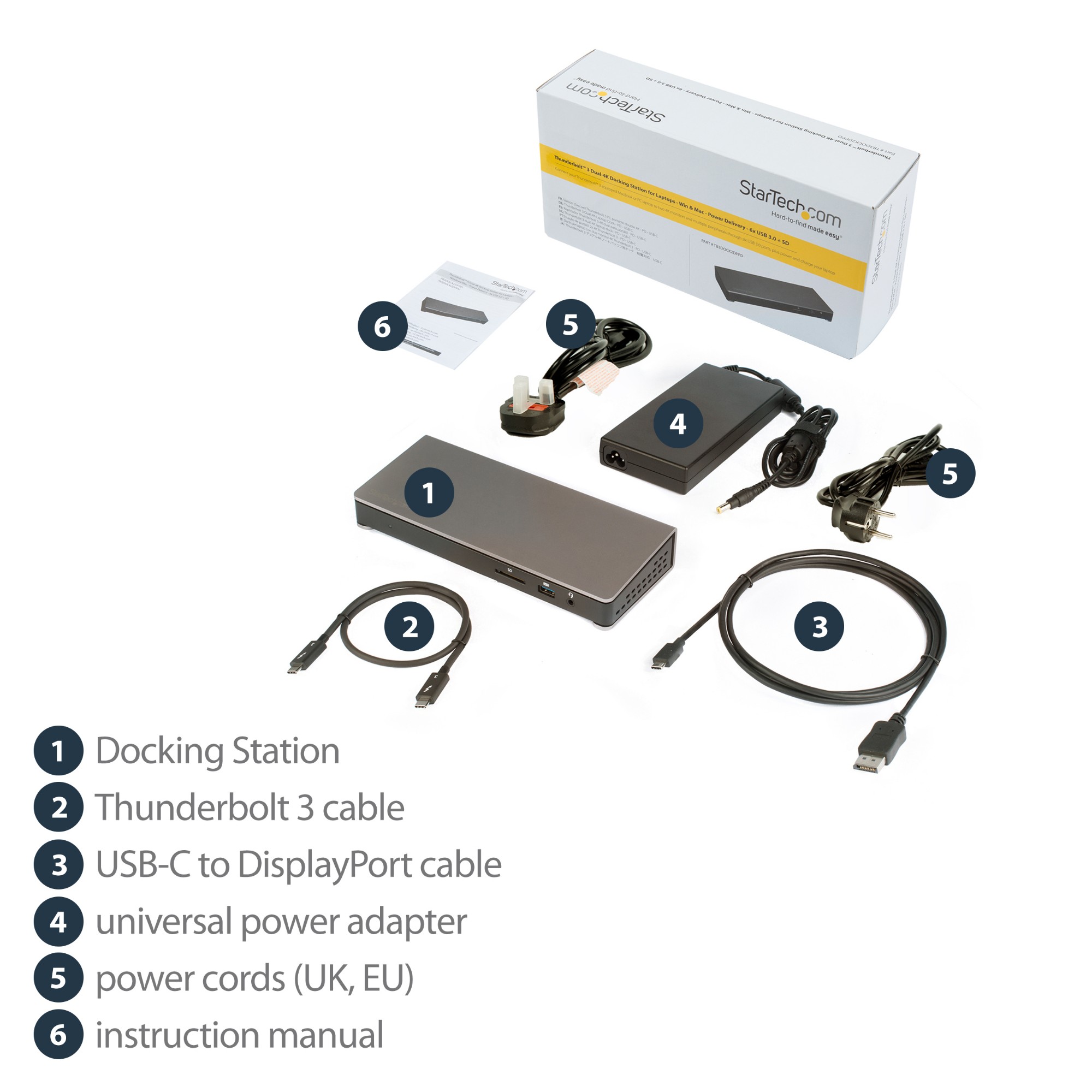

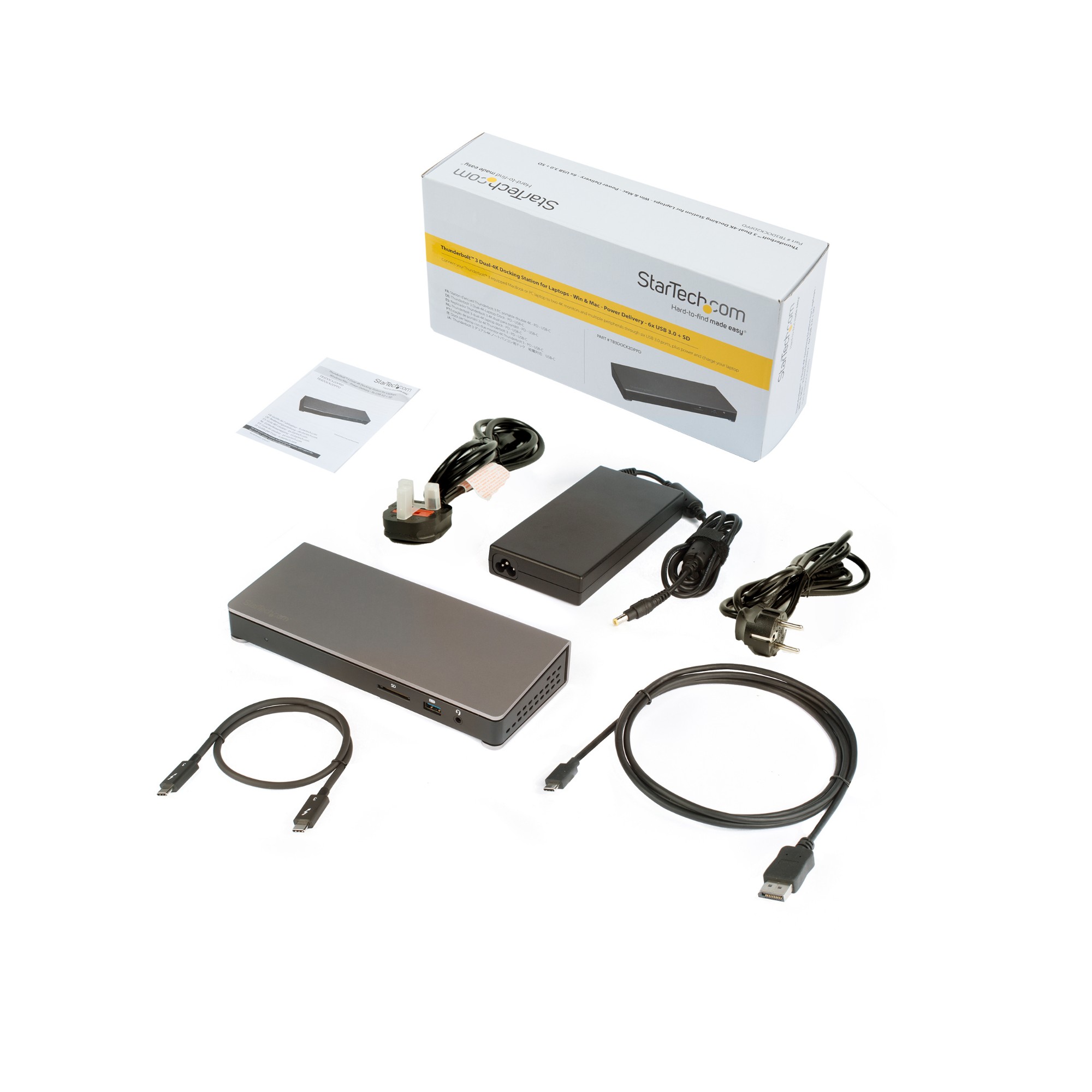

| Packaging content | |
| Manual | Yes |
| Cables included | AC, Thunderbolt, USB Type-C |
| AC adapter included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Certificates | |
| Certification | CE, FCC, REACH |
| Logistics data | |
| Quantity per master (outer) case | 10 pc(s) |
| Master (outer) case width | 31 cm |
| Master (outer) case length | 48 cm |
| Master (outer) case height | 31.4 cm |
| Other features | |
| Chipset | Intel - Alpine Ridge JHL6540, Texas Instruments - TPS65983, Fresco - FL1100EX, Intel - WGI210AT, C-Media - CM6533, Genesys Logic - GL3226 |
Specifications
UNSPSC Code
43211615
Brand
StarTech
Categories
Notebook Parts & Accessories
Category
Notebook Docks & Port Replicators
Product Colour
Black
StarTech.com Thunderbolt 3 Dock - Dual Monitor 4K 60Hz TB3 Laptop Docking Station with DisplayPort - 85W Power Delivery Charging - 6-Port USB 3.0 Hub, SD 4.0, GbE, Audio - Windows & Mac
