StarTech.com PCI Express to 2 PCI & 2 PCIe Expansion Enclosure System - Full Length
Description

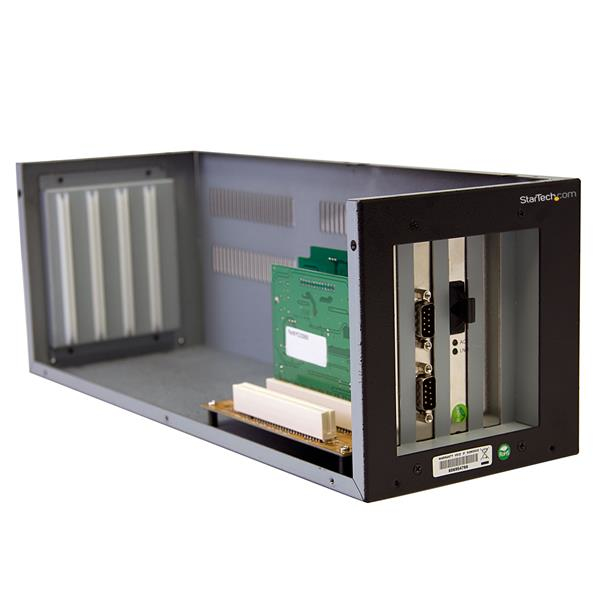

The external expansion chassis adds two full-length (38cm) PCI slots (32-bit/33MHz), as well as two PCIe x1 (single-lane) slots to a host computer through a single PCI Express connection. Providing total bandwidth up to 250MBps from the PCIe x1 host controller card allows the computer to function as though the expansion chassis cards were connected directly to the motherboard.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Control the power state of connected PCI/PCIe cards with the self-powered chassis and easily accessible on/off button
Install additional cards without opening your computer with the provided external expansion card slots
Easy installation and support for small form-factor computers with an included low-profile/half-height bracket
| Ports & interfaces | |
|---|---|
| Hub interfaces | PCI Express |
| Ports quantity | 4 |
| Cable length | 0.9 m |
| Features | |
| Certification | ROHS, CE, FCC |
| Cable length | 0.9 m |
| Data transfer rate | 250 Mbit/s |
| Housing material | Steel |
| Data transmission | |
| Data transfer rate | 250 Mbit/s |
| Power | |
| Power plug type | Type M |
| Output voltage | 12 V |
| Output current | 3 A |
| Input voltage | 115 - 230 V |
| Performance | |
| Certification | ROHS, CE, FCC |
| Data transfer rate | 250 Mbit/s |
| Weight & dimensions | |
| Weight | 2 kg |
| Width | 137 mm |
| Depth | 382 mm |
| Height | 143 mm |
| Package width | 208 mm |
| Package depth | 436 mm |
| Package height | 254 mm |
| Package weight | 2.1 kg |
| Packaging data | |
| Package width | 208 mm |
| Package depth | 436 mm |
| Package height | 254 mm |
| Package weight | 2.1 kg |
| Packaging content | |
| Manual | Yes |
| Included power plug types | EU,NA,UK |
| Cables included | AC, DVI |
| AC adapter included | Yes |
| Design | |
| Certification | ROHS, CE, FCC |
| Cable length | 0.9 m |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | ROHS, CE, FCC |
Specifications
UNSPSC Code
43211603
Brand
StarTech
Categories
Interface Components
Category
Interface Hubs
Ports quantity
4
StarTech.com PCI Express to 2 PCI & 2 PCIe Expansion Enclosure System - Full Length
