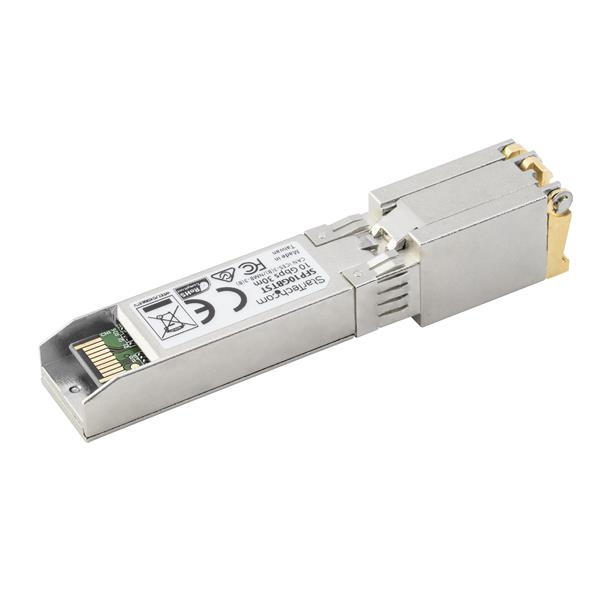

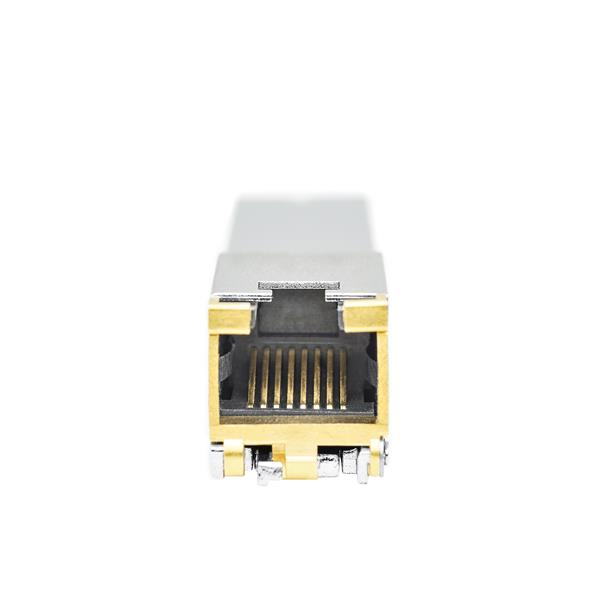

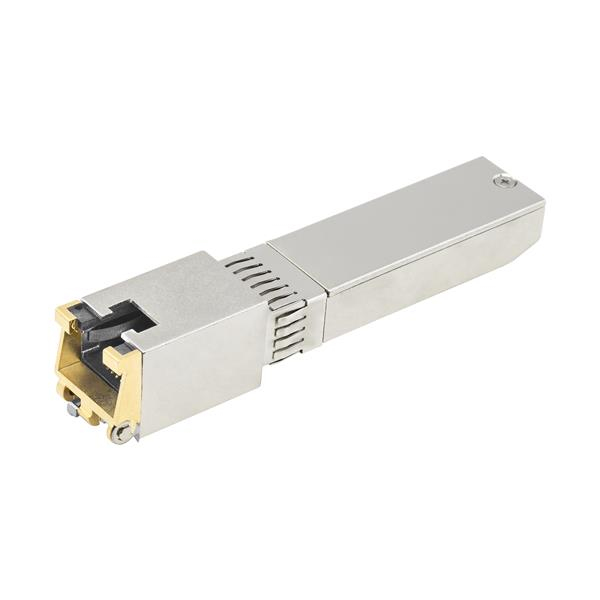

StarTech.com MSA Uncoded SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m
Description
The SFP10GBTST is an MSA compliant copper SFP transceiver that’s designed, programmed and tested to work with 10GBASE-T compatible switchess and routers. The SFP+ transceiver module supports a maximum distance of up to 30 m (98.4 ft.) and delivers dependable 10 GbE connectivity over copper cabling, which is a cost-effective alternative to fiber-optic cable setups.
Technical Specifications:
Maximum Data Transfer Rate: 10 Gbps
Type: Copper
Connection Type: RJ45 Connector
Maximum Transfer Distance: 30 m (98.4 ft.)
MTBF: 4,598,430 hours >
This SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% MSA UNCODED SFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 10GbE connectivity
- TESTED FOR COMPATIBILITY: Hot-swappable in MSA Compliant routers and switches
- TESTED FOR COMPATIBILITY: Hot-swappable in MSA Compliant routers and switches
| Network | |
|---|---|
| SFP transceiver type | Copper |
| Networking standards | IEEE 802.3an |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Technical details | |
| Package width | 74 mm |
| Package height | 30 mm |
| Hot-Plug support | Yes |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 30 m |
| Duplex system | Full |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Product colour | Silver |
| Housing material | Zinc steel |
| Hot-Plug support | Yes |
| SFP transceiver type | Copper |
| Digital Diagnostics Monitoring (DDM) | No |
| Networking standards | IEEE 802.3an |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum transfer distance | 30 m |
| Duplex system | Full |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Features | |
| Product colour | Silver |
| Housing material | Zinc steel |
| Hot-Plug support | Yes |
| Certification | CE, FCC |
| RoHS compliance | Yes |
| Power | |
| Power consumption (typical) | 2.3 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 13.9 mm |
| Depth | 70 mm |
| Height | 12.6 mm |
| Weight | 28 g |
| Package depth | 120 mm |
| Package width | 74 mm |
| Package height | 30 mm |
| Package weight | 60 g |
| Packaging data | |
| Package depth | 120 mm |
| Number of products included | 1 pc(s) |
| Package width | 74 mm |
| Package height | 30 mm |
| Package weight | 60 g |
| Certificates | |
| Certification | CE, FCC |
| RoHS compliance | Yes |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 34.5 cm |
| Master (outer) case length | 38.5 cm |
| Master (outer) case height | 30.5 cm |
| Quantity per master (outer) case | 100 pc(s) |
Specifications
UNSPSC Code
43201553
Brand
StarTech
Categories
Networking
Category
Network Transceiver Modules
Interface type
SFP+
Maximum Data Transfer Rate
10000 Mbit/s
StarTech.com MSA Uncoded SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m
