StarTech.com MSA Uncoded SFP+ Module - 10GBASE-SR - 10GbE Multi Mode Fiber (MMF) Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 300m - 850nm - DDM
Description

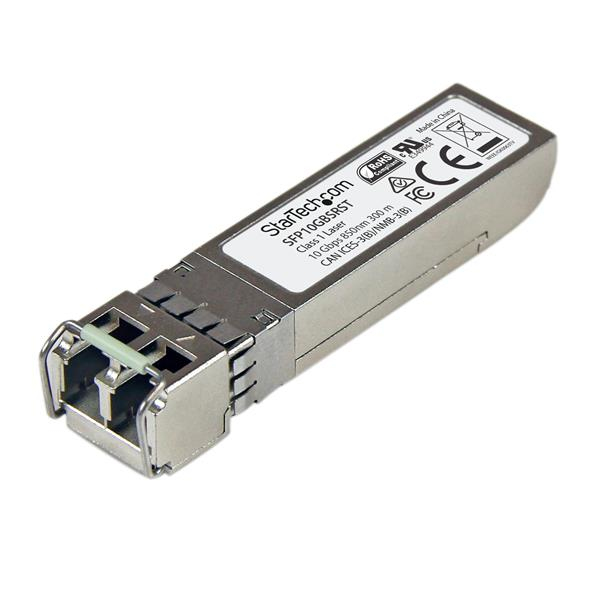

The SFP10GBSRST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 10GBASE-SR compatible MSA switches and routers. The SFP+ transceiver module supports a maximum distance of up to 300 m (984 ft) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
Wavelength: 850 nm
Maximum Data Transfer Rate: 10 Gbps
Type: Multi Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 300 m (984 ft)
Power Consumption: Less than 1.6 Watts
DDM: Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% MSA UNCODED SFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 10GbE connectivity
- TECHNICAL SPECS: 10GBASE-SR
- 10Gbps
| Network | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ae |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Technical details | |
| Package width | 90 mm |
| Package height | 30 mm |
| Hot-Plug support | Yes |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Duplex system | Full |
| Performance | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-Plug support | Yes |
| SFP transceiver type | Fiber optic |
| Wavelength-division multiplexing (WDM) | No |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ae |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Duplex system | Full |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SR |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-Plug support | Yes |
| Certification | CE, FCC, UR |
| RoHS compliance | Yes |
| Power | |
| Power consumption (typical) | 1.3 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 13.9 mm |
| Depth | 58.4 mm |
| Height | 12.6 mm |
| Weight | 20 g |
| Package depth | 115 mm |
| Package width | 90 mm |
| Package height | 30 mm |
| Package weight | 50 g |
| Packaging data | |
| Package depth | 115 mm |
| Number of products included | 1 pc(s) |
| Package width | 90 mm |
| Package height | 30 mm |
| Package weight | 50 g |
| Certificates | |
| Certification | CE, FCC, UR |
| RoHS compliance | Yes |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 34.5 cm |
| Master (outer) case length | 41 cm |
| Master (outer) case height | 35.5 cm |
| Quantity per master (outer) case | 100 pc(s) |
