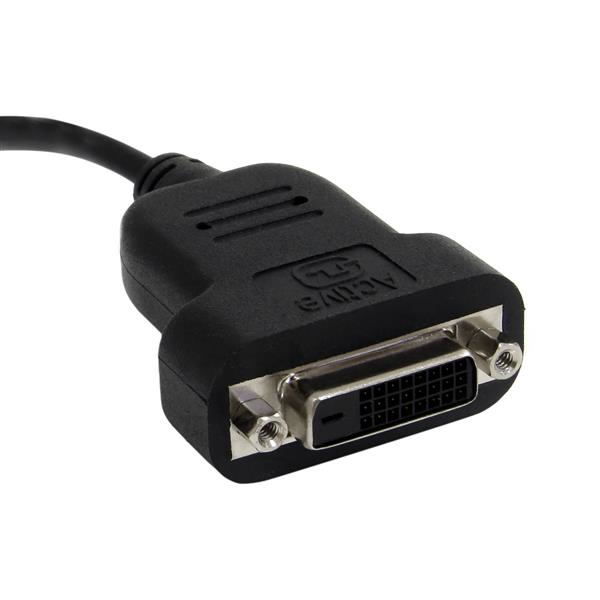

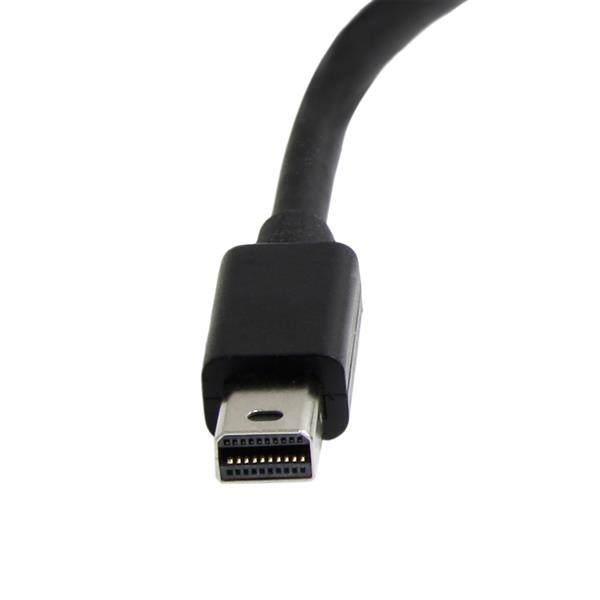

StarTech.com Mini DisplayPort to DVI Active Adapter
Description
The MDP2DVIS Mini DisplayPort to DVI Active Adapter (single-link) let's you connect your Mini DisplayPort video source (such as any of your MacBook or Microsoft Surface Pro devices with mDP) to a DVI-D display, including televisions and Apple Cinema Display HD, eliminating the expense of having to upgrade to a DisplayPort capable monitor.
Unlike passive video adapters, this Mini DisplayPort to DVI adapter offers an active conversion for use with any Mini DisplayPort output - ideal for graphics cards that are not capable of outputting multi-mode DP++ signals (e.g. ATI Eyefinity).
Supporting resolutions up to 1920x1200, this compact device provides a simple solution for adapting PC or Mac Mini-DisplayPort output for DVI monitors, televisions or projectors.
The Mini DP to DVI adapter is compatible with Intel Thunderbolt, when connected directly to a supporting DisplayPort over Thunderbolt I/O port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
The StarTech.com Advantage
- This Mini DisplayPort to DVI adapter offers active signal conversion, which helps overcome the limitation of some Mini DisplayPort video cards not being able to output a DP++ (multimode) signal
- Simple to use, small form-factor converter makes Mini-DisplayPort backwards compatible with your DVI-D single link display
| Features | |
|---|---|
| Converter type | Active video converter |
| Product colour | Black |
| Cable length | 0.12 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Jacket material | Low smoke zero halogen (LSZH) |
| Maximum resolution | 1920 x 1200 pixels |
| HDCP | Yes |
| Plug and Play | Yes |
| RoHS compliance | Yes |
| Certification | CE, FCC, REACH |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Dual Link DVI | No |
| Maximum refresh rate | 60 Hz |
| HDCP version | 1.3 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | 0 - 70 °C |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 19 mm |
| Package weight | 47 g |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Width | 44 mm |
| Height | 20 mm |
| Depth | 200 mm |
| Weight & dimensions | |
| Width | 44 mm |
| Height | 20 mm |
| Depth | 200 mm |
| Weight | 38 g |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 19 mm |
| Package weight | 47 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 49.5 cm |
| Master (outer) case length | 33.9 cm |
| Master (outer) case height | 22 cm |
| Quantity per master (outer) case | 90 pc(s) |
Specifications
UNSPSC Code
43202222
Brand
StarTech
Categories
Computer, AV & Power Cables
Category
Video Cable Adapters
Connector 1
Mini DisplayPort
Connector 1 gender
Male connector
Connector 2
DVI-D
Connector 2 gender
Female connector
