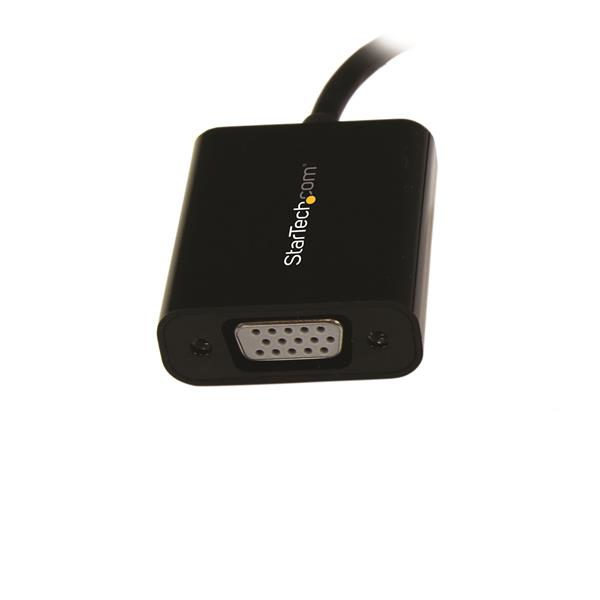

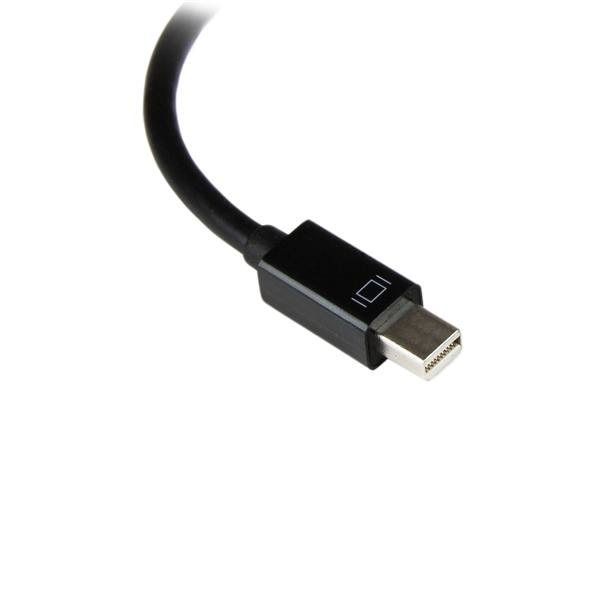

StarTech.com Mini DisplayPort 1.2 to VGA Adapter Converter – Mini DP to VGA – 1920x1200
Description
The MDP2VGA2 Mini DisplayPort to VGA converter enables you to connect your Mini DisplayPort video source (Macbook or any mDP-equipped Microsoft Surface Pro devices) to a VGA monitor or projector, saving the expense of upgrading to a Mini DisplayPort compatible display.
With a small foot print and no external power adapter this mDP to VGA adapter ensures maximum portability making it an ideal laptop accessory.
Compatible with Intel Thunderbolt, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920x1200 (WUXGA).
The MDP2VGA2 is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Save upgrade costs by connecting your Mini DisplayPort computer to a VGA monitor or Projector
- Maximum portability, with small foot print, and no external power adapter
| Technical details | |
|---|---|
| Converter type | Active video converter |
| Cable length | 0.18 m |
| Maximum video resolution | 1920 x 1200 pixels |
| Supported video modes | 720p,1080p |
| Plug and Play | Yes |
| Output interface | VGA |
| Maximum resolution | 1920 x 1200 pixels |
| Host interface | Mini DisplayPort |
| Chipset | Analogix - ANX9833 |
| Audio support | No |
| Colour | |
| Product colour | Black |
| Video | |
| Maximum video resolution | 1920 x 1200 pixels |
| Supported video modes | 720p,1080p |
| Audio | |
| Audio support | No |
| Other features | |
| Converter type | Active video converter |
| Cable length | 0.18 m |
| Plug and Play | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Product colour | Black |
| Certification | REACH, CE, FCC |
| Chipset | Analogix - ANX9833 |
| RoHS compliance | Yes |
| Ports & interfaces | |
| Output interface | VGA |
| Host interface | Mini DisplayPort |
| Certificates | |
| Certification | REACH, CE, FCC |
| RoHS compliance | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Weight & dimensions | |
| Width | 35 mm |
| Depth | 220 mm |
| Height | 8 mm |
| Weight | 27 g |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 18 mm |
| Package weight | 36 g |
Specifications
UNSPSC Code
52160000
Brand
StarTech.com
Categories
Computer, AV & Power Cables
Category
Video Cable Adapters
Connector 1
Mini DisplayPort
Connector 1 gender
Male connector
Connector 2
VGA (D-Sub)
Connector 2 gender
Female connector
