StarTech.com M.2 SSD to 2.5in SATA III Adapter - M.2 Solid State Drive Converter with Protective Housing
Description
Vastly increase system performance by replacing your 2.5” SATA hard drive with an M.2 solid state drive, using the SAT2M2NGFF25 M.2 SSD to SATA adapter.
The M.2 to SATA adapter features an enclosed housing that adds protection to your NGFF (Next Generation Form Factor) SSD. The added protection gives you the peace of mind to confidently use your M.2 drive in applications that require an added level of durability such as hot-swap drive bays, or external SATA docking stations.
Using an M.2 SSD in place of a platter drive better utilizes the full potential of your SATA III controller, by reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps -- an ideal solution for further increasing the performance of a HyperDuo array.

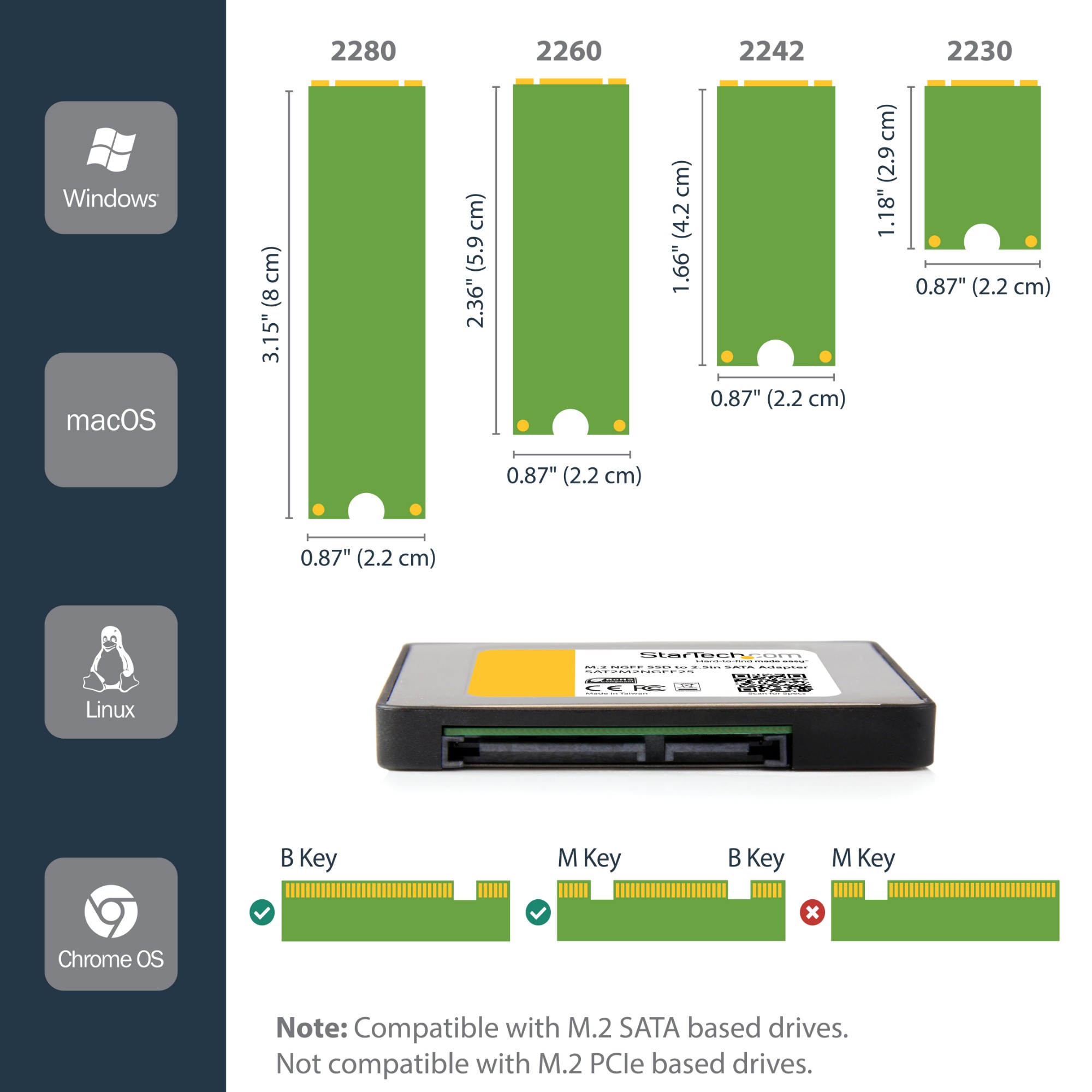

For wide compatibility with all of the common M.2 solid state drives, the SAT2M2NGFF25 supports multiple drive heights including: 2230, 2242, 2260, 2280.
The SAT2M2NGFF25 is backed by a StarTech.com 2-year warranty, and lifetime technical support.
The StarTech.com Advantage
- Added protection for your SSD with enclosed housing
- Maximize system performance by replacing you 2.5in SATA platter drive with an M.2 SSD
- Broad compatibility with support for the most common M.2 NGFF SSD heights (2242, 2260, 2280)
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | M.2 |
| SATA revision | 3.0 |
| Host interface | SATA |
| Technical details | |
| Plug and Play | Yes |
| Data transfer rate (max) | 6 Gbit/s |
| Material | Aluminium, Plastic |
| Performance | |
| Hot-swap | No |
| Plug and Play | Yes |
| Data transfer rate (max) | 6 Gbit/s |
| Product colour | Black |
| Certificates | |
| Certification | CE, FCC, TAA, REACH |
| RoHS compliance | Yes |
| Colour | |
| Product colour | Black |
| Design | |
| Hot-swap | No |
| Internal | Yes |
| Product colour | Black |
| Certification | CE, FCC, TAA, REACH |
| RoHS compliance | Yes |
| Features | |
| Plug and Play | Yes |
| Data transfer rate (max) | 6 Gbit/s |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |

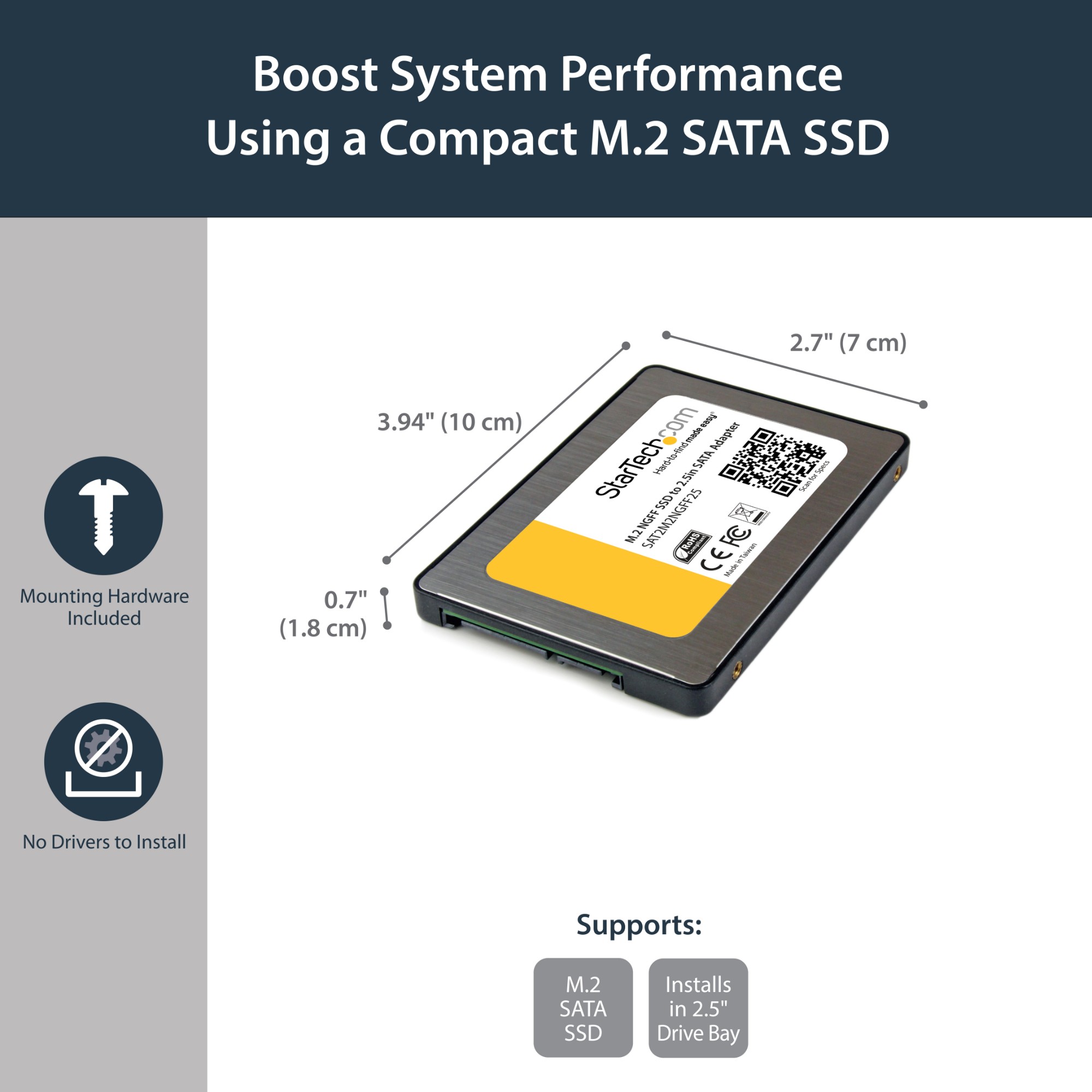

| Weight & dimensions | |
| Width | 68 mm |
| Depth | 98 mm |
| Height | 8 mm |
| Weight | 54 g |
| Package width | 162 mm |
| Package depth | 131 mm |
| Package height | 32 mm |
| Package weight | 116 g |
| Packaging data | |
| Manual | Yes |
| Package width | 162 mm |
| Package depth | 131 mm |
| Package height | 32 mm |
| Package weight | 116 g |
| Quantity | 1 |
| Other features | |
| Material | Aluminium, Plastic |

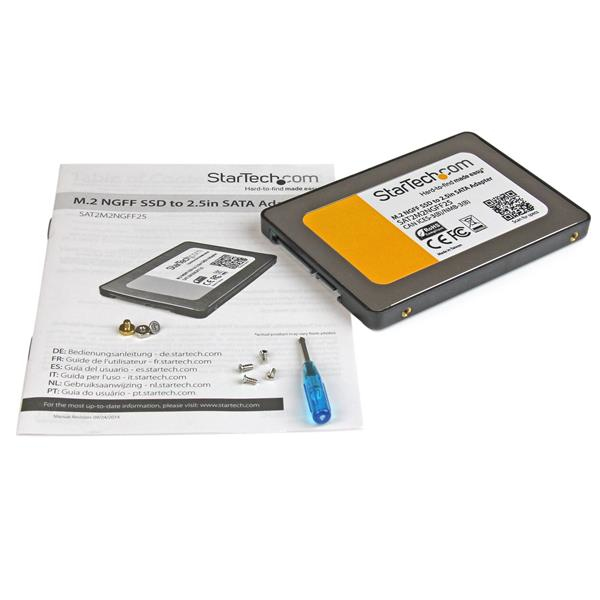

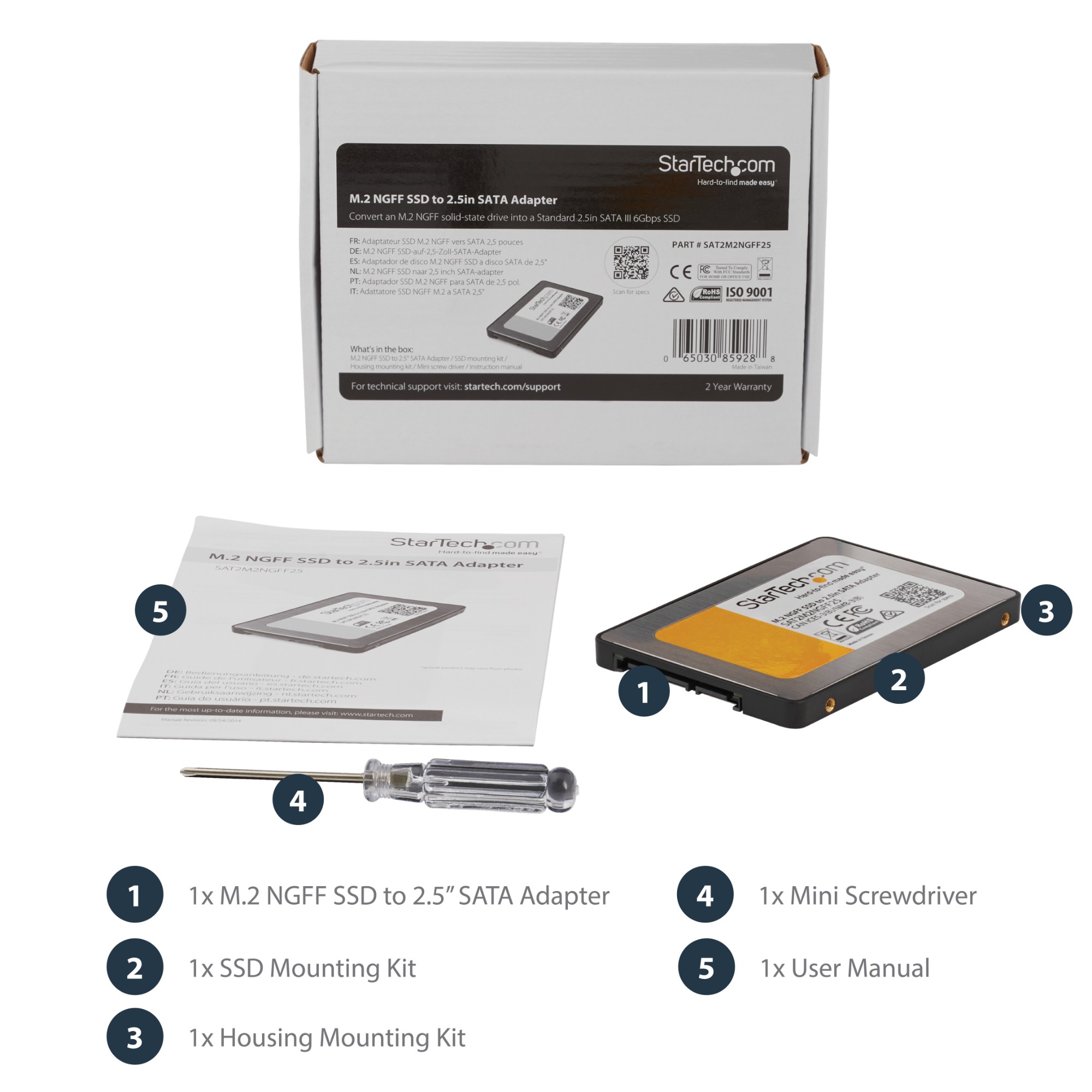

| Packaging content | |
| Manual | Yes |
| Quantity | 1 |
Specifications
UNSPSC Code
43201552
Brand
StarTech
Categories
System Components
Category
Interface Cards/Adapters
Host interface
SATA
Internal
Y
Output interface
M.2
