StarTech.com Juniper CTP-SFP-1GE-LX Compatible SFP Module - 1000BASE-LX - 1GbE Single Mode Fiber SMF Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - DDM
Description

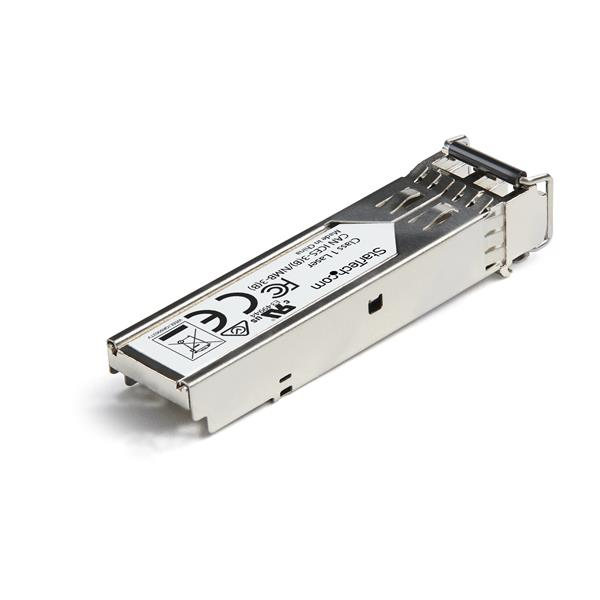

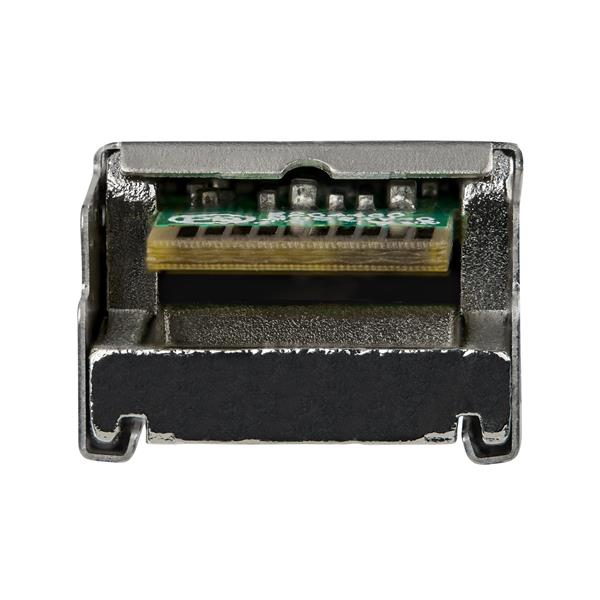

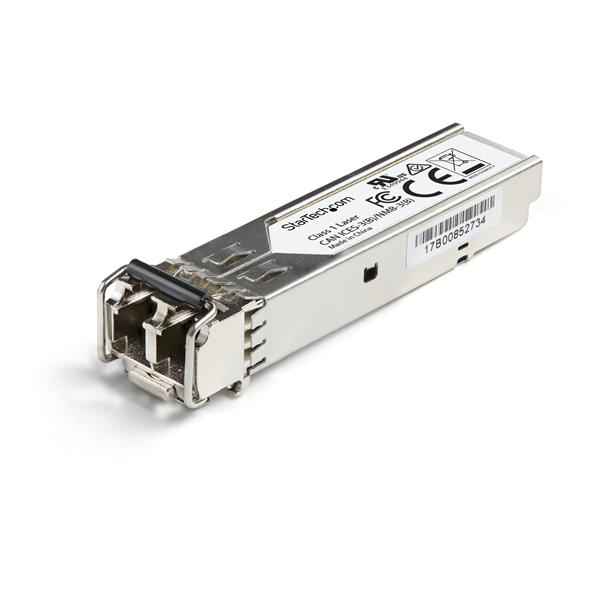

The CTPSFP1GELXS is a Juniper CTP-SFP-1GE-LX compatible fiber transceiver module that has been designed, programmed and tested to work with Juniper brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000Base-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
Wavelength: 1310nm
Maximum Data Transfer Rate: 1000 Mbps (1 Gbps)
Type: Single Mode Fiber

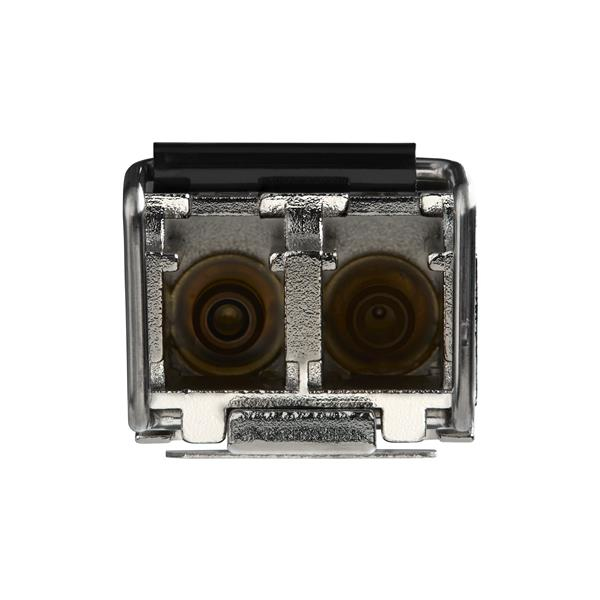

Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 53,972,659 hours
Power Consumption: < 1.3W
Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% JUNIPER CTP-SFP-1GE-LX COMPATIBLE SFP TRANSCEIVER: Designed, programmed and tested to work with compatible Juniper switches and routers to deliver dependable 1GbE connectivity
- TECHNICAL SPECS: 1000BASE-LX
- 1Gbps
| Network | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Technical details | |
| Package width | 207 mm |
| Package height | 15 mm |
| Hot-swap | Yes |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Duplex system | Full |
| Compatible products | CTP-SFP-1GE-LX |
| Performance | |
| Product colour | Silver |
| Hot-swap | Yes |
| Compatible products | CTP-SFP-1GE-LX |
| Mean time between failures (MTBF) | 53972659 h |
| Brand compatibility | Juniper |
| SFP transceiver type | Fiber optic |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Duplex system | Full |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| SFP transceiver standard | LX |
| Fiber ethernet cabling technology | 1000BASE‑LX |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Certification | REACH, CE, FCC, UR |
| Compatible products | CTP-SFP-1GE-LX |
| RoHS compliance | Yes |
| Mean time between failures (MTBF) | 53972659 h |
| Brand compatibility | Juniper |
| Power | |
| Power consumption (typical) | 1.3 W |
| Weight & dimensions | |
| Width | 14 mm |
| Depth | 65 mm |
| Height | 12 mm |
| Weight | 72 g |
| Package depth | 230 mm |
| Package width | 207 mm |
| Package height | 15 mm |
| Package weight | 80 g |
| Packaging data | |
| Package depth | 230 mm |
| Number of products included | 1 pc(s) |
| Package width | 207 mm |
| Package height | 15 mm |
| Package weight | 80 g |
| Certificates | |
| Certification | REACH, CE, FCC, UR |
| RoHS compliance | Yes |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 34.4 cm |
| Master (outer) case length | 29.5 cm |
| Master (outer) case height | 25.5 cm |
| Quantity per master (outer) case | 36 pc(s) |
Specifications
UNSPSC Code
43201553
Brand
StarTech
Categories
Networking
Category
Network Transceiver Modules
Interface type
SFP
Maximum Data Transfer Rate
1000 Mbit/s
SFP transceiver type
Fiber optic
