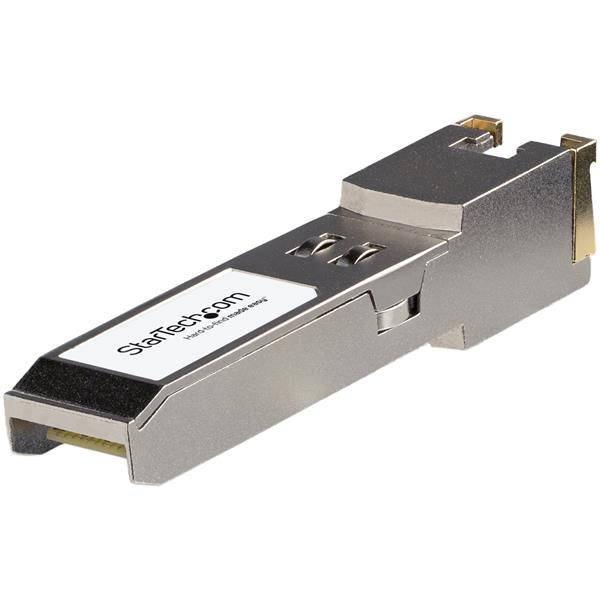

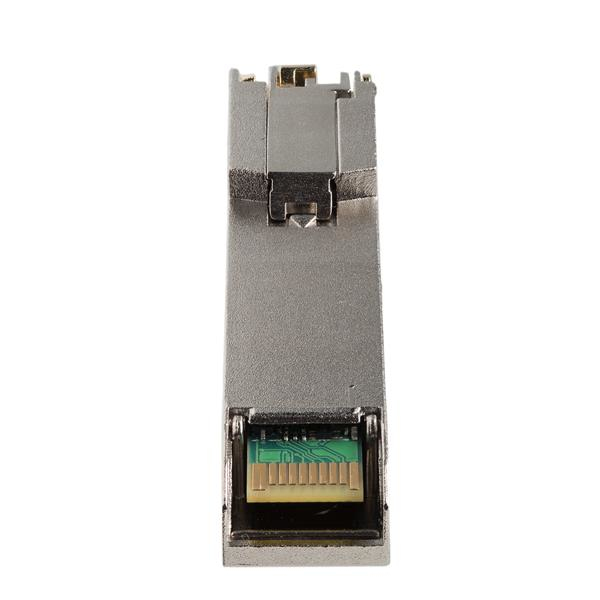

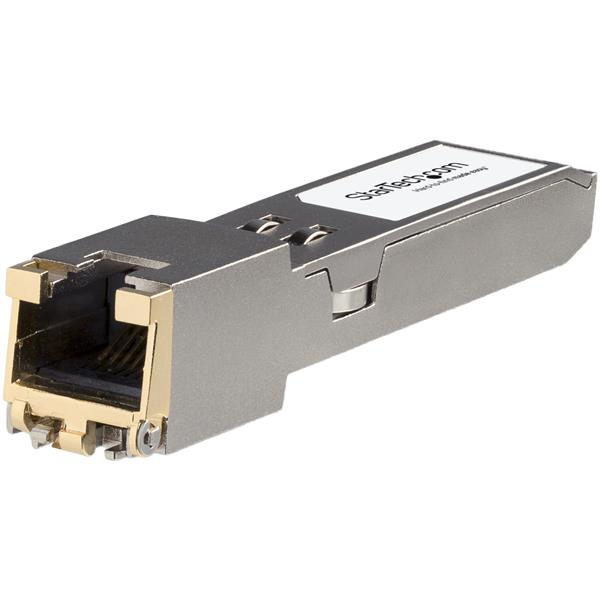

StarTech.com HPE JL563A Compatible SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m - HPE 8320, 8325-48Y8
Description
The JL563A-ST is a HP JL563A compatible copper transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 10 GbE connectivity over copper cable, for 10/100/1000/10000 compliant networks, with a maximum distance of up to 30 m (98.4 ft).
Technical Specifications:
Maximum Data Transfer Rate: 10 Gbps
Type: Copper
Connection Type: RJ-45
Maximum Transfer Distance: 30 m (98.4 ft)
MTBF: 510,469,759 hours
This copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% HPE JL563A COMPATIBLE: Works with HPE switches like 8320, 8325-48Y8 and others
- TECHNICAL SPECS: 10GBASE-T
- 10Gbps
| Network | |
|---|---|
| SFP transceiver type | Copper |
| Networking standards | IEEE 802.3ae |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Technical details | |
| Package width | 90 mm |
| Package height | 31 mm |
| Hot-swap | Yes |
| Maximum transfer distance | 30 m |
| Compatible products | JL563A |
| Ethernet LAN | Yes |
| Sustainability certificates | RoHS |
| Performance | |
| Product colour | Silver |
| Hot-swap | Yes |
| Compatible products | JL563A |
| Mean time between failures (MTBF) | 510469759 h |
| Brand compatibility | HP |
| SFP transceiver type | Copper |
| Ethernet LAN | Yes |
| Digital Diagnostics Monitoring (DDM) | No |
| Networking standards | IEEE 802.3ae |
| Maximum transfer distance | 30 m |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Ethernet interface type | 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Certification | CE, FCC, UR, REACH |
| Compatible products | JL563A |
| Mean time between failures (MTBF) | 510469759 h |
| Brand compatibility | HP |
| Weight & dimensions | |
| Width | 68 mm |
| Depth | 13.7 mm |
| Height | 13.8 mm |
| Weight | 15 g |
| Package depth | 115 mm |
| Package width | 90 mm |
| Package height | 31 mm |
| Package weight | 50 g |
| Packaging data | |
| Package depth | 115 mm |
| Number of products included | 1 pc(s) |
| Package width | 90 mm |
| Package height | 31 mm |
| Package weight | 50 g |
| Certificates | |
| Certification | CE, FCC, UR, REACH |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 9 cm |
| Master (outer) case length | 11.5 cm |
| Master (outer) case height | 3.1 cm |
| Quantity per master (outer) case | 1 pc(s) |
Specifications
UNSPSC Code
43201553
Brand
StarTech.com
Categories
Networking
Category
Network Transceiver Modules
Interface type
SFP+
Maximum Data Transfer Rate
10000 Mbit/s
SFP transceiver type
Copper
