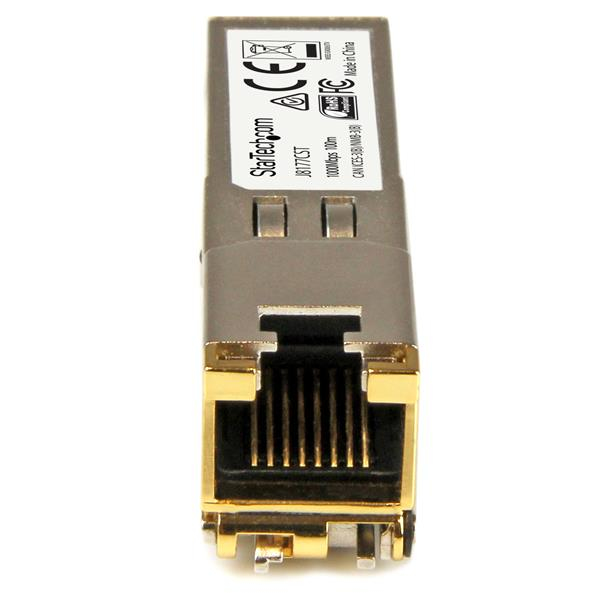

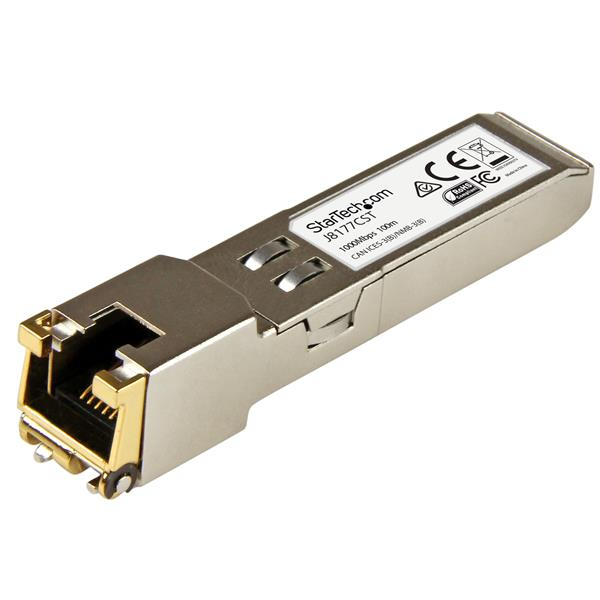

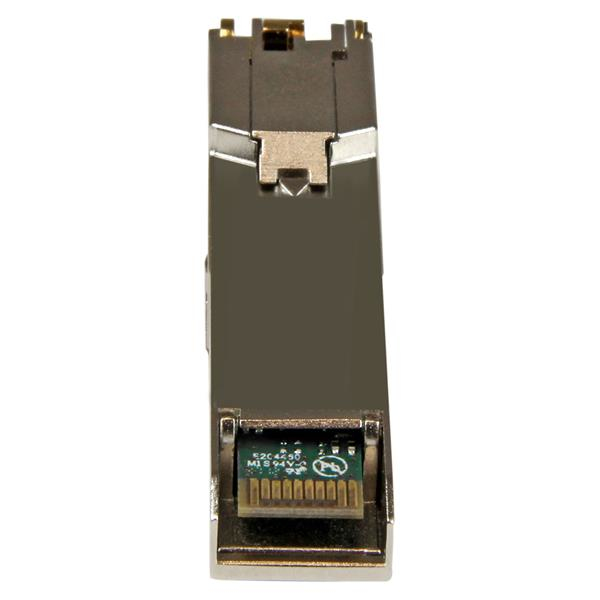

StarTech.com HPE J8177C Compatible SFP Module - 1000BASE-T - SFP to RJ45 Cat6/Cat5e - 1GE Gigabit Ethernet SFP - RJ-45 100m - HPE 1810, 1820, 2530
Description
The J8177CST is an HP J8177C compatible copper transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
Maximum Data Transfer Rate: 1000 Mbps
Type: Copper
Connection Type: RJ45 Connector
Maximum Transfer Distance: 100 m (328 ft)
MTBF: 4,655,371 hours
Power Consumption: Less than 1.3 Watts
Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% HPE J8177C COMPATIBLE: Works with HPE switches like 1810, 1820, 2530, 2610, 2620 and others
- TECHNICAL SPECS: 1000BASE-T
- 1Gbps
| Network | |
|---|---|
| SFP transceiver type | Copper |
| Fiber optic connector | MiniGBIC |
| Networking standards | IEEE 802.3ab |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Technical details | |
| Package width | 118 mm |
| Package height | 34 mm |
| Hot-swap | Yes |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 100 m |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 4655371 h |
| SFP transceiver type | Copper |
| Digital Diagnostics Monitoring (DDM) | No |
| Auto-negotiation | Yes |
| Fiber optic connector | MiniGBIC |
| Networking standards | IEEE 802.3ab |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum transfer distance | 100 m |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-swap | Yes |
| Certification | CE, FCC |
| RoHS compliance | Yes |
| Mean time between failures (MTBF) | 4655371 h |
| Power | |
| Power consumption (typical) | 1.3 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 30 - 75% |
| Weight & dimensions | |
| Width | 14 mm |
| Depth | 68 mm |
| Height | 14 mm |
| Weight | 25 g |
| Package depth | 92 mm |
| Package width | 118 mm |
| Package height | 34 mm |
| Package weight | 53 g |
| Packaging data | |
| Package depth | 92 mm |
| Number of products included | 1 pc(s) |
| Package width | 118 mm |
| Package height | 34 mm |
| Package weight | 53 g |
| Certificates | |
| Certification | CE, FCC |
| RoHS compliance | Yes |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 35.5 cm |
| Master (outer) case length | 41 cm |
| Master (outer) case height | 34 cm |
| Quantity per master (outer) case | 100 pc(s) |
