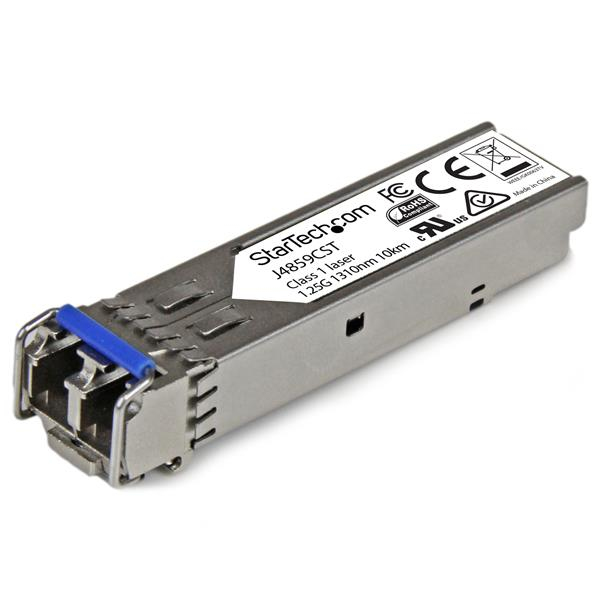

StarTech.com HPE J4859C Compatible SFP Module - 1000BASE-LX - 1GbE Single Mode /Multi Mode Fiber Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - DDM HPE 1400, 1700, 1820
Description
The J4859CST is an HP J4859C compatible fiber transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
Wavelength: 1310 nm
Maximum Data Transfer Rate: 1.25 Gbps
Type: Single Mode / Multi Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi) - SM / 1 km (0.6 mi) - MM
MTBF: 3,092,408 hours
Power Consumption: Less than 1 Watt
Digital Diagnostics Monitoring (DDM): Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% HPE J4859C COMPATIBLE: Works with HPE switches like 1400, 1700, 1820, 2520, 2530 and others
- TECHNICAL SPECS: 1000BASE-LX
- 1Gbps
| Network | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Technical details | |
| Package width | 118 mm |
| Package height | 32 mm |
| Hot-swap | Yes |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Duplex system | Full |
| Performance | |
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 3092408 h |
| SFP transceiver type | Fiber optic |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3z |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Duplex system | Full |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Multi-mode fiber (MMF) supported | Yes |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Certification | FCC, UL, CE |
| RoHS compliance | Yes |
| Mean time between failures (MTBF) | 3092408 h |
| Power | |
| Power consumption (typical) | 1 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 14 mm |
| Depth | 57 mm |
| Height | 13 mm |
| Weight | 16 g |
| Package depth | 93 mm |
| Package width | 118 mm |
| Package height | 32 mm |
| Package weight | 45 g |
| Packaging data | |
| Package depth | 93 mm |
| Number of products included | 1 pc(s) |
| Package width | 118 mm |
| Package height | 32 mm |
| Package weight | 45 g |
| Certificates | |
| Certification | FCC, UL, CE |
| RoHS compliance | Yes |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 34.7 cm |
| Master (outer) case length | 41.2 cm |
| Master (outer) case height | 35.5 cm |
| Quantity per master (outer) case | 100 pc(s) |
Specifications
UNSPSC Code
43201553
Brand
StarTech
Categories
Networking
Category
Network Transceiver Modules
Interface type
SFP
Maximum Data Transfer Rate
1250 Mbit/s
StarTech.com HPE J4859C Compatible SFP Module - 1000BASE-LX - 1GbE Single Mode /Multi Mode Fiber Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 10km - 1310nm - DDM HPE 1400, 1700, 1820
