StarTech.com HPE 813874-B21 Compatible SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m - HPE BladeSystem, c-Class
Description

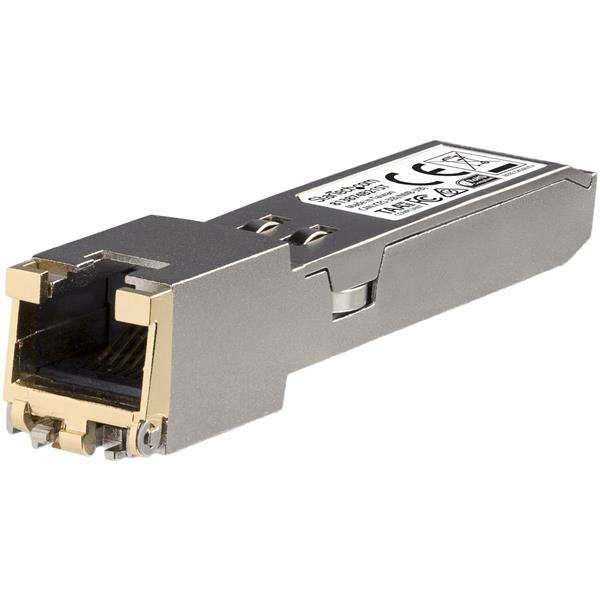

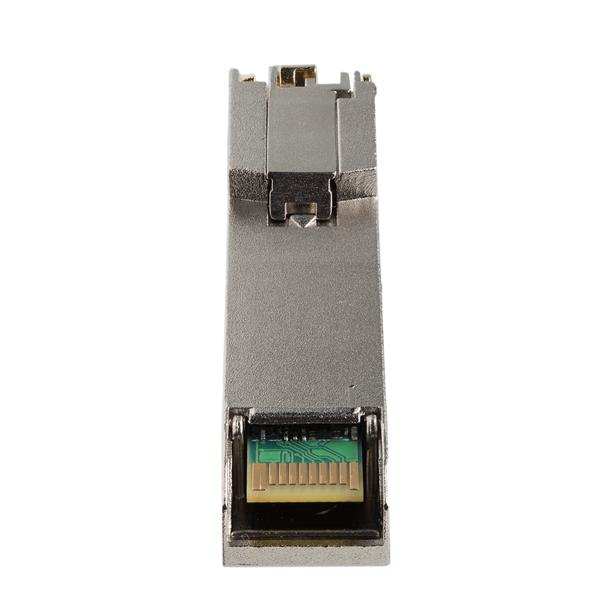

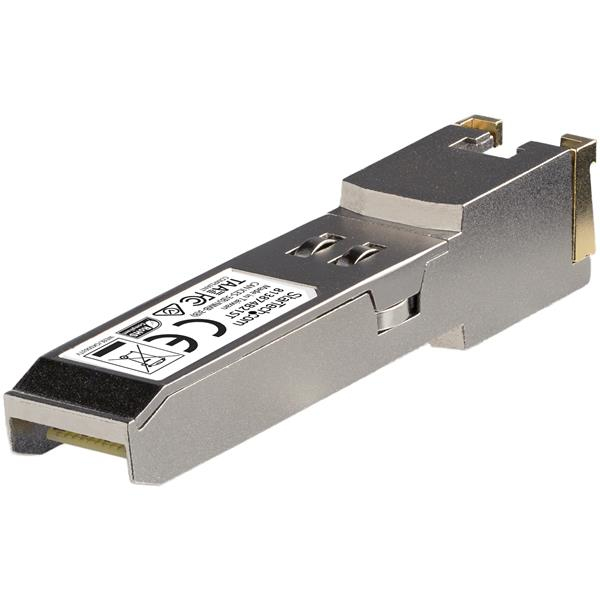

The 813874B21ST is an HP 813874-B21 compatible copper transceiver module that has been designed, programmed and tested to work with HP brand switches and routers. It delivers dependable 10 GbE connectivity over copper cable, for 10GBASE-T compliant networks, with a maximum distance of up to 30 m (98.4 ft).
Technical Specifications:
Maximum Data Transfer Rate: 10 Gbps
Type: Copper
Connection Type: RJ45 Connector
Maximum Transfer Distance: 30 m (98.4 ft)
MTBF: 4,598,430 hours
Digital Diagnostics Monitoring (DDM): No
This SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% HPE 813874-B21 COMPATIBLE: Works with HPE switches like BladeSystem, c-Class and others
- TECHNICAL SPECS: 10GBASE-T
- 10Gbps
| Network | |
|---|---|
| SFP transceiver type | Copper |
| Networking standards | IEEE 802.3an |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Technical details | |
| Package width | 75 mm |
| Package height | 33 mm |
| Hot-swap | Yes |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 30 m |
| Compatible products | HP |
| Sustainability certificates | RoHS |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Product colour | Silver |
| Housing material | Zinc steel |
| Hot-swap | Yes |
| Compatible products | HP |
| Mean time between failures (MTBF) | 4598430 h |
| SFP transceiver type | Copper |
| Digital Diagnostics Monitoring (DDM) | No |
| Networking standards | IEEE 802.3an |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum transfer distance | 30 m |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Features | |
| Product colour | Silver |
| Housing material | Zinc steel |
| Hot-swap | Yes |
| Certification | CE, FCC |
| Compatible products | HP |
| Mean time between failures (MTBF) | 4598430 h |
| Power | |
| Power consumption (typical) | 2.3 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 90 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 13.4 mm |
| Depth | 69.8 mm |
| Height | 13.8 mm |
| Weight | 24.2 g |
| Package depth | 120 mm |
| Package width | 75 mm |
| Package height | 33 mm |
| Package weight | 31 g |
| Packaging data | |
| Package depth | 120 mm |
| Number of products included | 1 pc(s) |
| Package width | 75 mm |
| Package height | 33 mm |
| Package weight | 31 g |
| Certificates | |
| Certification | CE, FCC |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 34 cm |
| Master (outer) case length | 63.8 cm |
| Master (outer) case height | 29 cm |
| Quantity per master (outer) case | 150 pc(s) |
Specifications
UNSPSC Code
43201553
Brand
StarTech
Categories
Networking
Category
Network Transceiver Modules
Interface type
SFP+
Maximum Data Transfer Rate
10000 Mbit/s
StarTech.com HPE 813874-B21 Compatible SFP+ Module - 10GBASE-T - SFP to RJ45 Cat6/Cat5e - 10GE Gigabit Ethernet SFP+ - RJ-45 30m - HPE BladeSystem, c-Class
