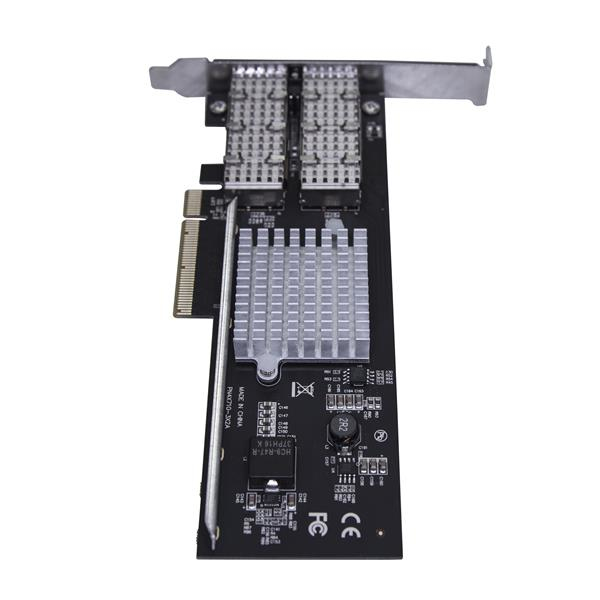

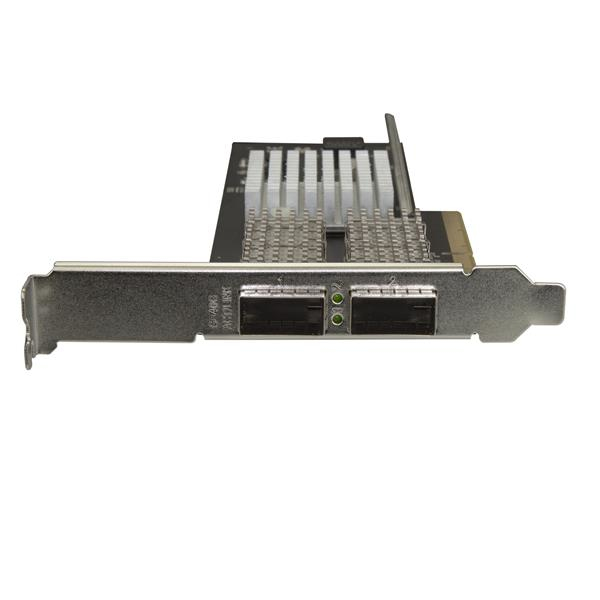

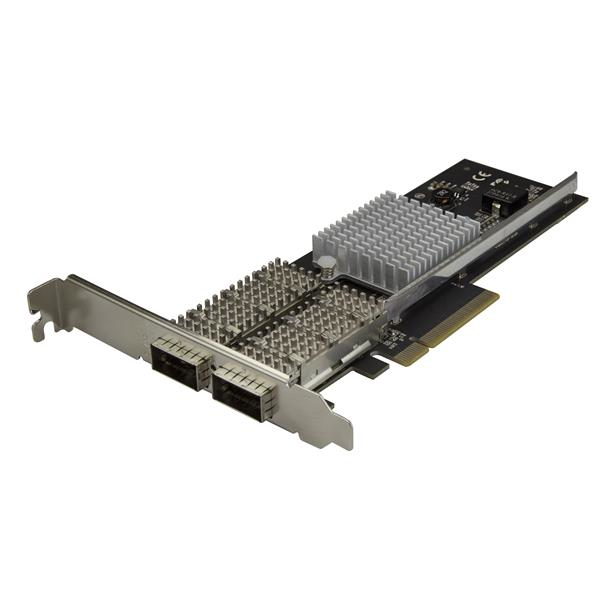

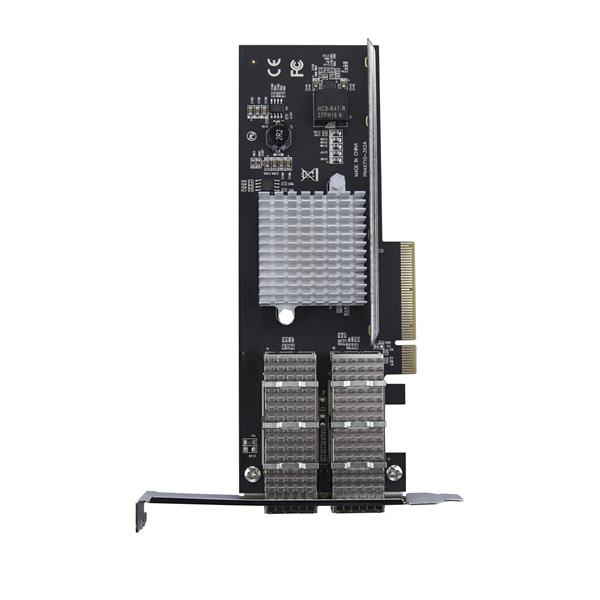

StarTech.com Dual Port 40G QSFP+ Network Card - Intel XL710 Open QSFP+ Converged Adapter - PCIe 40 Gigabit Ethernet Server NIC - 40GbE Fiber Optic LAN Card - Dell PowerEdge HPE ProLiant
Description
Get fast, high-bandwidth connectivity with this dual-port QSFP+ Network Interface Card. It adds two open QSFP+ slots to your server or workstation. The 40G NIC features an Intel controller and provides redundant network links with reliable performance. It’s ideal for high-demand database servers, virtualized servers and agile data centers that require infrastructure updates with no downtime.
Increase your network speed
This dual port QSFP+ server NIC card lets you take advantage of the speed and stability of a 40 Gigabit network, with data transfers of up to 40Gbps.
Add redundant connections in zero-downtime environments
With two QSFP+ ports, the PCIe NIC helps to prevent network downtime by adding fault-tolerant connections using two modules, to provide high-bandwidth network links to your mission-critical servers or workstations.
Add scalable network connections
With its open QSFP+ slots, the network interface card supports QSFP+ transceiver modules and is compatible with multimode and single-mode fiber, providing a scalable networking solution.
Enhance your network capabilities
The 40G NIC uses an Intel XL710 chipset providing reliable connectivity and convergent network features. It offers many advanced features including Intel Virtualization Technology for Connectivity.
The PEX40GQSFDPI is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- DUAL QSFP+ NETWORK CARD: Two port 40GbE converged network adapter for redundancy or can be aggregated for demanding applications; Data Center Bridging (DCB), virtualization & iSCSI offload support
- TECH SPECS: 2x 40 Gbps Open QSFP+ Ports
- MSA Compliant
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| PCI version | 3.0 |
| Fiber ports quantity | 2 |
| Fiber optic connector | QSFP+ |
| Interface | Fiber |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Full duplex | Yes |
| Maximum data transfer rate | 40000 Mbit/s |
| Network | |
| Chipset | Intel - XL710-BM2 |
| VLAN tagging | Yes |
| Jumbo frames | 9000 |
| Ethernet LAN | No |
| Networking standards | IEEE 802.1Q,IEEE 802.3ad,IEEE 802.3ba,IEEE 802.3x |
| Jumbo frames support | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Fiber ethernet cabling technology | 40GBASE-LR4,40GBASE-SR4 |
| Maximum data transfer rate | 40000 Mbit/s |
| Technical details | |
| Product colour | Black |
| Sustainability certificates | RoHS |
| Software | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Linux operating systems supported | Yes |
| Indication | |
| LED indicators | Activity, Link |
| Performance | |
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Linux operating systems supported | Yes |
| Design | |
| Product colour | Black |
| Chipset | Intel - XL710-BM2 |
| Certification | CE, FCC, REACH |
| Internal | Yes |
| LED indicators | Activity, Link |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 57 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| System requirements | |
| Server operating systems supported | Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Package width | 145 mm |
| Package depth | 207 mm |
| Package height | 40 mm |
| Package weight | 212 g |
| Width | 121 mm |
| Depth | 181 mm |
| Height | 21 mm |
| Weight | 127 g |
| Packaging data | |
| Low-profile bracket | Yes |
| Package width | 145 mm |
| Package depth | 207 mm |
| Package height | 40 mm |
| Package weight | 212 g |
| Quick start guide | Yes |
| Logistics data | |
| Master (outer) case width | 42 cm |
| Master (outer) case length | 44 cm |
| Master (outer) case height | 32 cm |
| Quantity per master (outer) case | 40 pc(s) |
| Certificates | |
| Certification | CE, FCC, REACH |
| Other features | |
| Jumbo frames | 9000 |
| Chipset | Intel - XL710-BM2 |
| Quick start guide | Yes |
| Flow control support | Yes |
| Packaging content | |
| Low-profile bracket | Yes |
| Quick start guide | Yes |
Specifications
UNSPSC Code
43201404
Brand
StarTech
Categories
System Components
Category
Networking Cards
Connectivity technology
Wired
Host interface
PCI Express
Interface
Fiber
Internal
Y
StarTech.com Dual Port 40G QSFP+ Network Card - Intel XL710 Open QSFP+ Converged Adapter - PCIe 40 Gigabit Ethernet Server NIC - 40GbE Fiber Optic LAN Card - Dell PowerEdge HPE ProLiant
