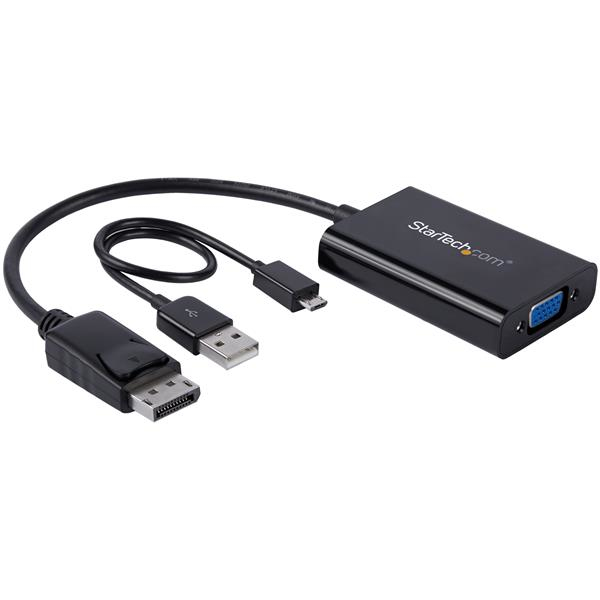

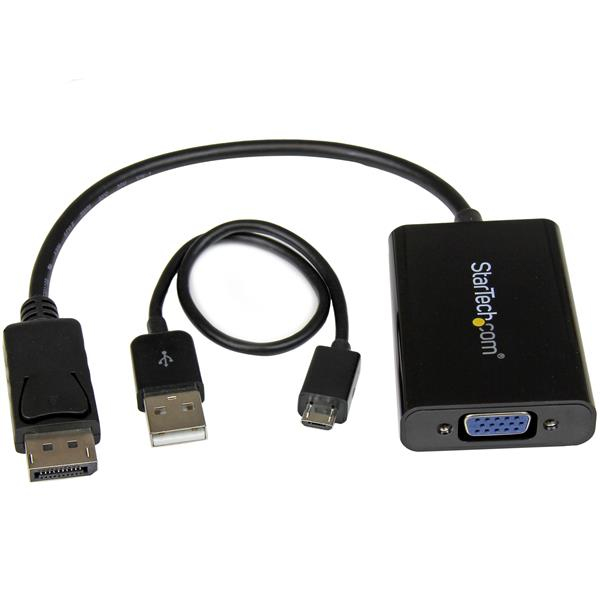

StarTech.com DisplayPort to VGA Adapter with Audio
Description
This unique DisplayPort to VGA adapter is equipped with a built-in audio port which lets you connect DisplayPort equipped devices, such as an HP EliteBook Folio 9470m laptop, to a VGA display or projector with audio.
Share your presentations and videos
Because most boardrooms are set up differently, the length of cables available in each room varies. Not all laptops have the DisplayPort (DP) and audio ports positioned on the same side, which can become awkward when you’re trying to deliver your presentations. It can also mean that some ports may be just out of reach during a meeting.
This convenient adapter positions your audio and video ports on the same side of your laptop, to ensure that all of the ports you need are accessible when you need them.
Substitute for a damaged audio port
If the audio port on your mobile device is damaged or blocked by other connections, this convenient adapter guarantees that you’ll always have all of the ports you need for every presentation. By connecting audio to your laptop through the adapter, you can be prepared for any situation.
In order to use the audio function of the adapter you need to power the adapter through a USB port on your laptop, or through a charge port on a USB grommet. Simply plug a Micro USB cable from the adapter into the USB port and audio will be available when you deliver your presentation.
Create a clutter-free environment
The adapter can also be used for connecting your laptop or desktop computer to your monitor and speakers. The adapter and connected cables can be placed nicely at the back of your monitor to create a tidy setup between all of your devices.
Arrive prepared, wherever you go
This DisplayPort to VGA adapter is extremely portable with a lightweight, small-footprint design. It’s the perfect accessory to carry with your mobile devices, fitting easily into your laptop bag or carrying case. Its ultra-portable design makes the adapter ideal for BYOD (Bring Your Own Device) applications at the office.
It also enables you to arrive prepared when you’re presenting to a potential client, teaching off-site, or traveling to a meet with a customer.
The DP2VGAA is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Group your VGA and audio ports together, to ensure they’re all accessible when you need them
- Substitute a damaged or blocked audio port by connecting your audio directly through the adapter
- Provide crystal-clear picture quality with support for high-definition video resolutions up to 1920x1200 or 1080p
| Technical details | |
|---|---|
| Converter type | Active video converter |
| Cable length | 0.184 m |
| Audio output channels | 2.0 channels |
| Maximum video resolution | 1920 x 1200 pixels |
| Supported video modes | 1080p |
| Plug and Play | Yes |
| Output interface | VGA + 3.5 mm |
| Maximum resolution | 1920 x 1200 pixels |
| Host interface | DisplayPort |
| Audio support | Yes |
| Colour | |
| Product colour | Black |
| Video | |
| Maximum video resolution | 1920 x 1200 pixels |
| Supported video modes | 1080p |
| Audio | |
| Audio output channels | 2.0 channels |
| Audio support | Yes |
| Other features | |
| Converter type | Active video converter |
| Cable length | 0.184 m |
| Plug and Play | Yes |
| Maximum resolution | 1920 x 1200 pixels |
| Product colour | Black |
| Certification | CE, FCC, REACH |
| RoHS compliance | Yes |
| Ports & interfaces | |
| Output interface | VGA + 3.5 mm |
| Host interface | DisplayPort |
| Certificates | |
| Certification | CE, FCC, REACH |
| RoHS compliance | Yes |
| Power | |
| USB powered | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 40 - 50% |
| Weight & dimensions | |
| Width | 42 mm |
| Depth | 67 mm |
| Height | 17 mm |
| Weight | 50.8 g |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 16 mm |
| Package weight | 64 g |
| Cables included | Micro-USB |
| Packaging content | |
| Cables included | Micro-USB |
