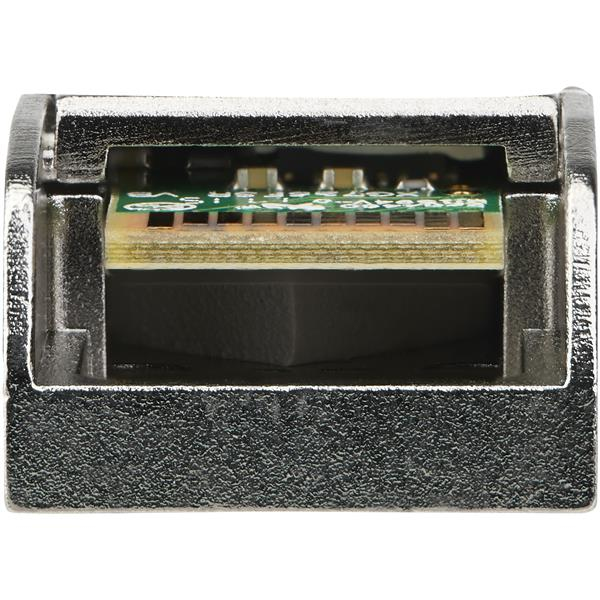

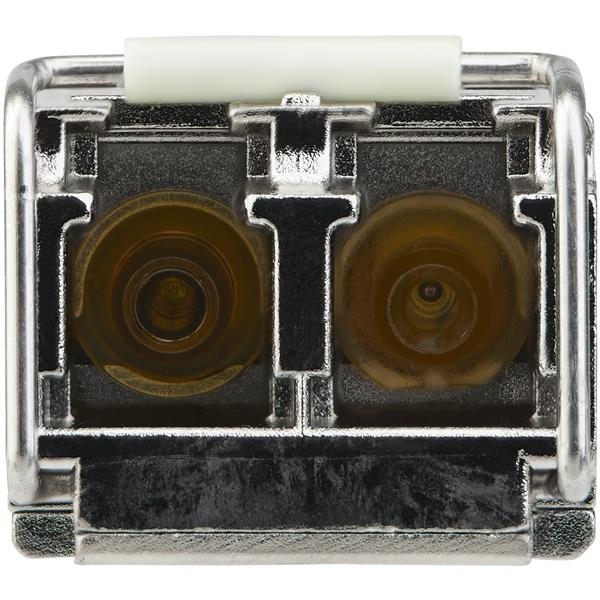

StarTech.com Dell EMC SFP-10G-LR Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber SMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM
Description
The SFP10GLREMST is a Dell EMC SFP-10G-LR compatible fiber transceiver module that has been designed, programmed and tested to work with Dell EMC brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 1000Base-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi).
Technical Specifications:
Wavelength: 1310nm
Maximum Data Transfer Rate: 10 Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 10 km (6.2 mi)
MTBF: 38,631,862 hours
Power Consumption: < 1.3W
Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% DELL EMC SFP-10G-LR COMPATIBLE SFP+ TRANSCEIVER: Designed, programmed and tested to work with compatible Dell EMC switches and routers to deliver dependable 10GbE connectivity
- TECHNICAL SPECS: 10GBASE-LR
- 10Gbps
| Network | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Technical details | |
| Package width | 90 mm |
| Package height | 31 mm |
| Hot-swap | Yes |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Compatible products | SFP-10G-LR |
| Performance | |
| Product colour | Silver |
| Hot-swap | Yes |
| Compatible products | SFP-10G-LR |
| Mean time between failures (MTBF) | 38631862 h |
| Brand compatibility | Dell |
| SFP transceiver type | Fiber optic |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC |
| Maximum transfer distance | 10000 m |
| Wavelength | 1310 nm |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Single-mode fiber (SMF) supported | Yes |
| Multi-mode fiber (MMF) supported | No |
| SFP transceiver standard | LR |
| Fiber ethernet cabling technology | 10GBASE-LR |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Certification | CE, FCC, UL, REACH |
| Compatible products | SFP-10G-LR |
| RoHS compliance | Yes |
| Mean time between failures (MTBF) | 38631862 h |
| Brand compatibility | Dell |
| Power | |
| Power consumption (typical) | 1.3 W |
| Weight & dimensions | |
| Width | 58.4 mm |
| Depth | 13.9 mm |
| Height | 12.6 mm |
| Weight | 30 g |
| Package depth | 115 mm |
| Package width | 90 mm |
| Package height | 31 mm |
| Package weight | 50 g |
| Packaging data | |
| Package depth | 115 mm |
| Number of products included | 1 pc(s) |
| Package width | 90 mm |
| Package height | 31 mm |
| Package weight | 50 g |
| Certificates | |
| Certification | CE, FCC, UL, REACH |
| RoHS compliance | Yes |
| Packaging content | |
| Number of products included | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 9 cm |
| Master (outer) case length | 11.5 cm |
| Master (outer) case height | 3.1 cm |
| Quantity per master (outer) case | 1 pc(s) |
Specifications
UNSPSC Code
43201553
Brand
StarTech
Categories
Networking
Category
Network Transceiver Modules
Interface type
SFP+
Maximum Data Transfer Rate
10000 Mbit/s
SFP transceiver type
Fiber optic
StarTech.com Dell EMC SFP-10G-LR Compatible SFP+ Module - 10GBASE-LR - 10GbE Single Mode Fiber SMF Optic Transceiver - 10GE Gigabit Ethernet SFP+ - LC 10km - 1310nm - DDM
