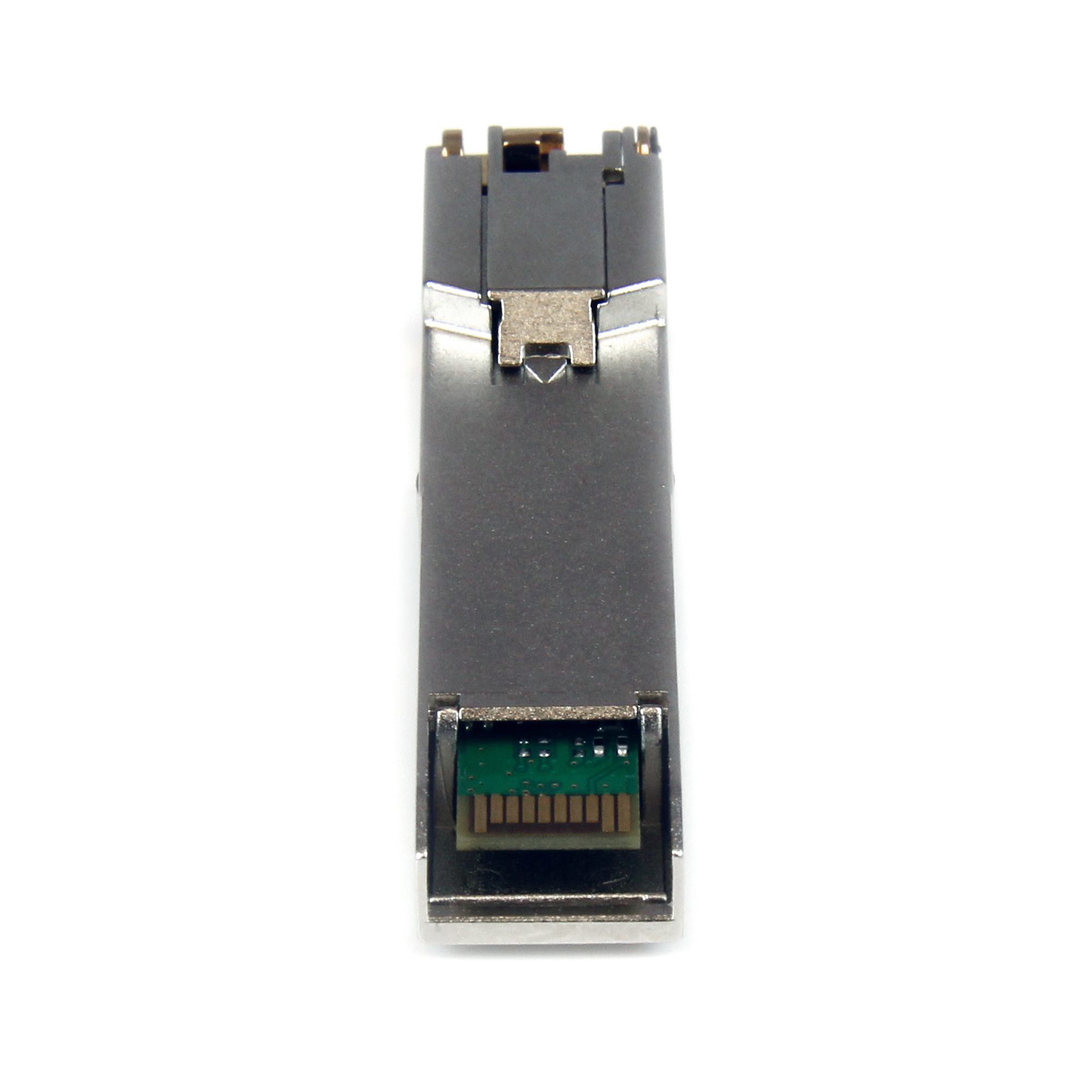

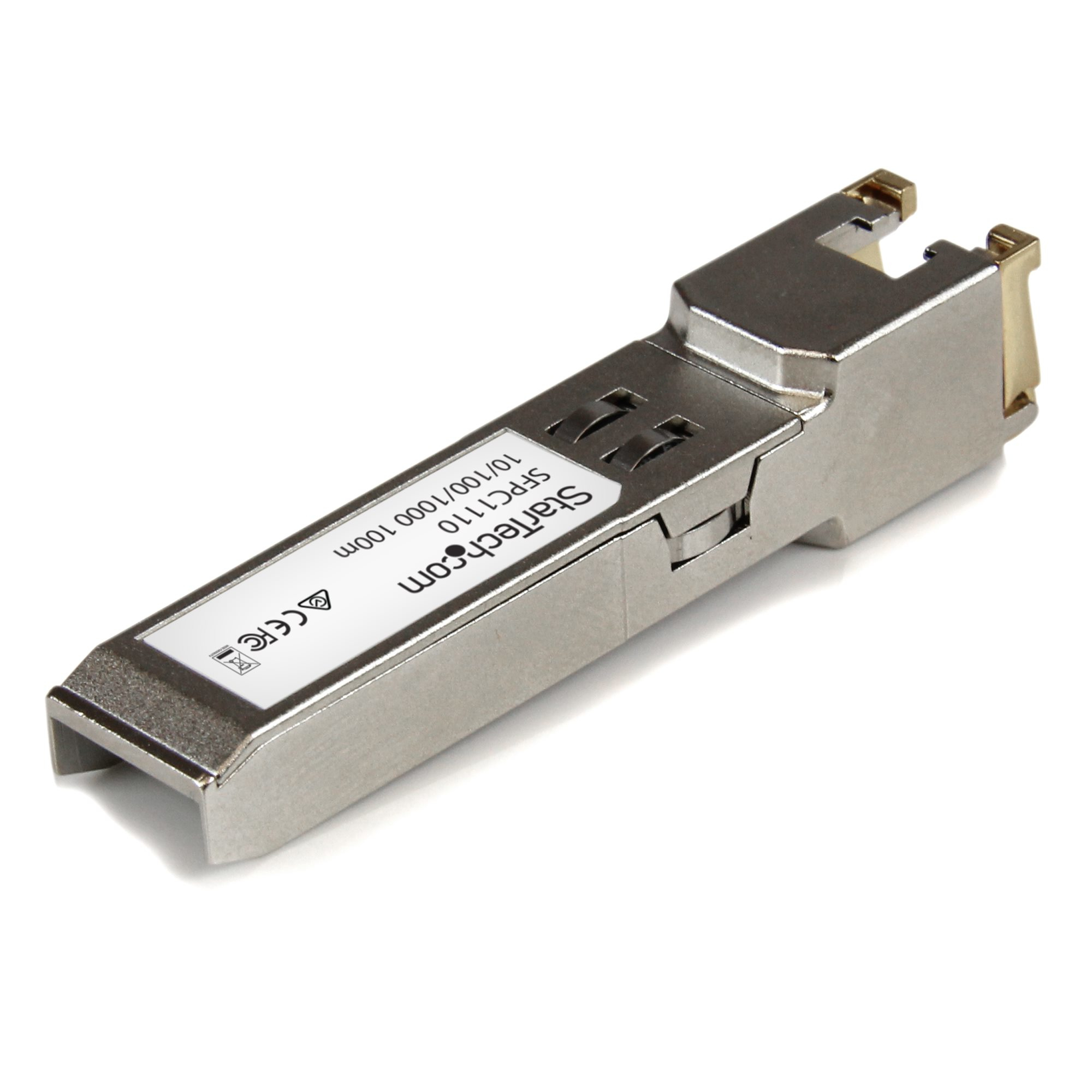

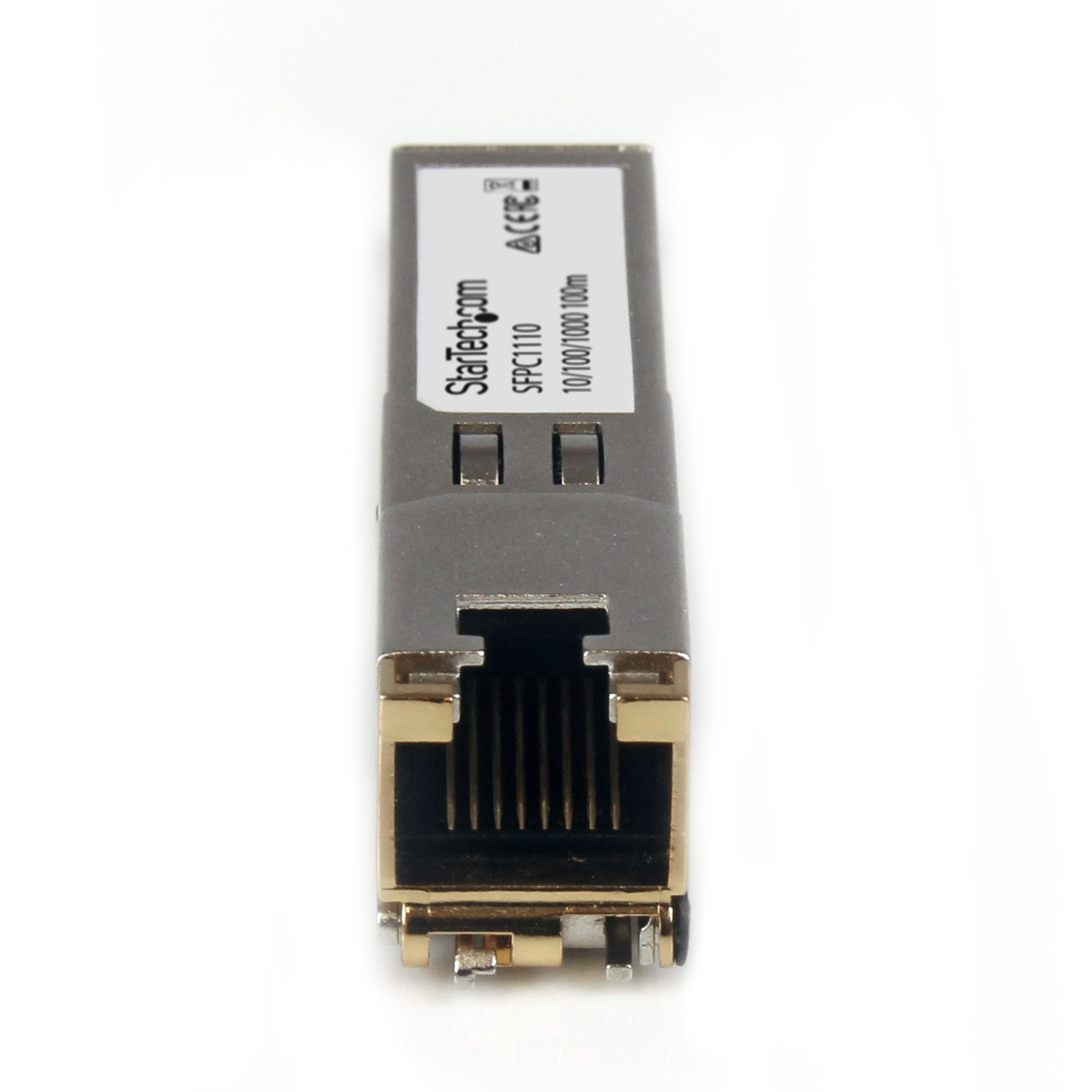

StarTech.com Cisco SFP-GE-T Compatible SFP Transceiver Module - 1000BASE-T
Description
The SFPC1110 is a Cisco SFP-GE-T compatible copper transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 1000BASE-T compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
Maximum Data Transfer Rate: 1.25 Gbps
Type: Copper
Connection Type: RJ45 Connector
Maximum Transfer Distance: 100 m (328 ft)
MTBF: 4,655,371 hours
Power Consumption: Less than 1.3 Watts
Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% compatibility with Cisco SFP-GE-T guaranteed
- StarTech.com SFP modules are backed by a lifetime warranty
- Uses a cost-effective cabling alternative to fiber-optic set ups
| Network | |
|---|---|
| SFP transceiver type | Copper |
| Fiber optic connector | SFP |
| Networking standards | IEEE 802.3ab |
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 1000BASE-T |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Technical details | |
| Package width | 92 mm |
| Package height | 33 mm |
| Hot-swap | Yes |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 100 m |
| Cabling technology | 1000BASE-T |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Product colour | Silver |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 4655371 h |
| SFP transceiver type | Copper |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Auto-negotiation | Yes |
| Fiber optic connector | SFP |
| Networking standards | IEEE 802.3ab |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum transfer distance | 100 m |
| Cabling technology | 1000BASE-T |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | SFP |
| Features | |
| Product colour | Silver |
| Hot-swap | Yes |
| Certification | CE, FCC, UL, REACH |
| RoHS compliance | Yes |
| Mean time between failures (MTBF) | 4655371 h |
| Power | |
| Power consumption (typical) | 1.3 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 30 - 70% |
| Weight & dimensions | |
| Width | 13 mm |
| Depth | 70 mm |
| Height | 13 mm |
| Weight | 46 g |
| Package depth | 116 mm |
| Package width | 92 mm |
| Package height | 33 mm |
| Package weight | 55 g |
| Packaging data | |
| Package depth | 116 mm |
| Number of products included | 1 pc(s) |
| Package width | 92 mm |
| Package height | 33 mm |
| Package weight | 55 g |
| Certificates | |
| Certification | CE, FCC, UL, REACH |
| RoHS compliance | Yes |
| Packaging content | |
| Number of products included | 1 pc(s) |
Specifications
UNSPSC Code
43201553
Brand
StarTech
Categories
Networking
Category
Network Transceiver Modules
Interface type
SFP
Maximum Data Transfer Rate
1250 Mbit/s
StarTech.com Cisco SFP-GE-T Compatible SFP Transceiver Module - 1000BASE-T
