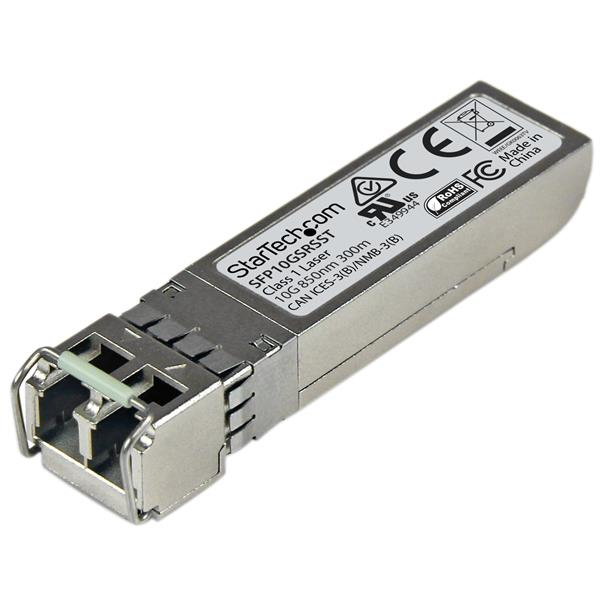

StarTech.com Cisco SFP-10G-SR-S Compatible SFP+ Transceiver Module - 10GBASE-SR
Description
The SFP10GSRSST is a Cisco SFP-10G-SR-S compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 10GbE connectivity over fiber cable, for 10GBASE-SR compliant networks, with a maximum distance of up to 300 m (984 ft.).
Technical Specifications:
Wavelength: 850 nm
Maximum Data Transfer Rate: 10Gbps
Type: Multimode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 300 m (984 ft.)
MTBF: 1,967,709 hours
Power Consumption: Less than 1.3 Watts
Digital Diagnostics Monitoring (DDM): Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% compatibility with Cisco SFP-10G-SR-S guaranteed
- StarTech.com SFP modules are backed by a lifetime warranty
- Meets or exceeds OEM specifications and Multi-Source Agreement (MSA) industry standards
| Network | |
|---|---|
| SFP transceiver type | Fiber optic |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ae |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Technical details | |
| Package width | 118 mm |
| Package height | 33 mm |
| Hot-swap | Yes |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Duplex system | Full |
| Performance | |
| Country of origin | China |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 1967709 h |
| Brand compatibility | Cisco |
| SFP transceiver type | Fiber optic |
| Wavelength-division multiplexing (WDM) | No |
| Digital Diagnostics Monitoring (DDM) | Yes |
| Fiber optic connector | LC |
| Networking standards | IEEE 802.3ae |
| Maximum transfer distance | 300 m |
| Wavelength | 850 nm |
| Duplex system | Full |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Multi-mode fiber (MMF) supported | Yes |
| SFP transceiver standard | SR |
| Fiber ethernet cabling technology | 10GBASE-SR |
| Features | |
| Country of origin | China |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-swap | Yes |
| Certification | CE, FCC, UR, REACH |
| RoHS compliance | Yes |
| Mean time between failures (MTBF) | 1967709 h |
| Brand compatibility | Cisco |
| Power | |
| Power consumption (typical) | 1.3 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 13.9 mm |
| Depth | 58.4 mm |
| Height | 13 mm |
| Weight | 19 g |
| Package depth | 92 mm |
| Package width | 118 mm |
| Package height | 33 mm |
| Package weight | 47 g |
| Packaging data | |
| Package depth | 92 mm |
| Number of products included | 1 pc(s) |
| Package width | 118 mm |
| Package height | 33 mm |
| Package weight | 47 g |
| Certificates | |
| Certification | CE, FCC, UR, REACH |
| RoHS compliance | Yes |
| Packaging content | |
| Number of products included | 1 pc(s) |
Specifications
UNSPSC Code
43201553
Brand
StarTech
Categories
Networking
Category
Network Transceiver Modules
Interface type
SFP+
Maximum Data Transfer Rate
10000 Mbit/s
