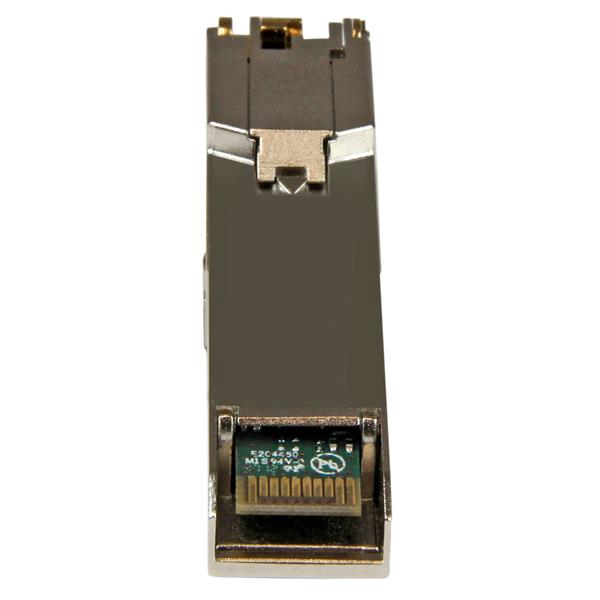

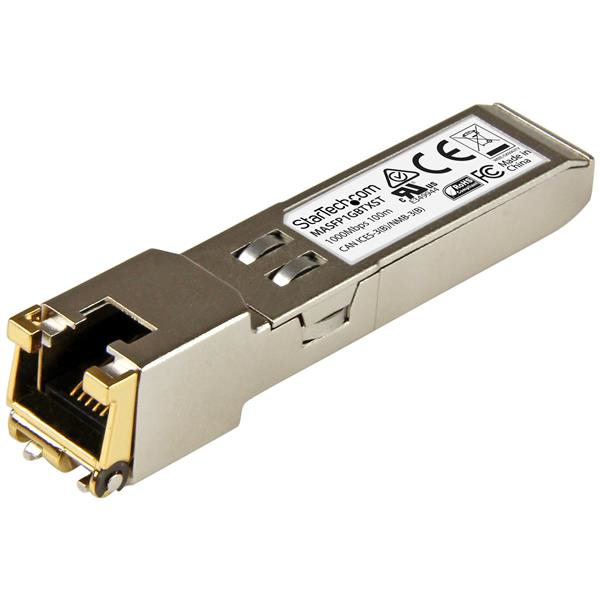

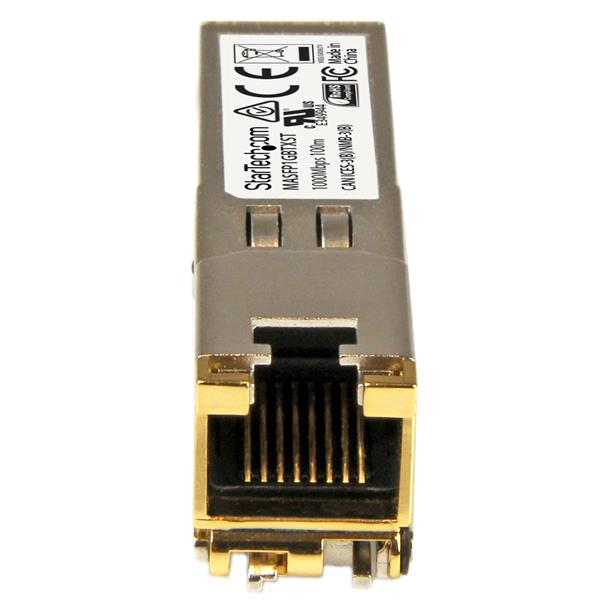

StarTech.com Cisco Meraki MA-SFP-1GB-TX Compatible SFP Transceiver Module - 10/100/1000BASE-TX
Description
The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible copper transceiver module that has been designed, programmed and tested to work with Cisco Meraki brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over copper cable, for 10BASE-T, 1000BASE-T and 100BASE-TX compliant networks, with a maximum distance of up to 100 m (328 ft).
Technical Specifications:
Maximum Data Transfer Rate: 1000 Mbps
Type: Copper
Connection Type: RJ45 Connector
Maximum Transfer Distance: 100 m (328 ft)
MTBF: 4,655,371 hours
Power Consumption: Less than 1.3 Watts
Digital Diagnostics Monitoring (DDM): No
This SFP copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% compatibility with Cisco Meraki MA-SFP-1GB-TX guaranteed
- StarTech.com SFP modules are backed by a lifetime warranty
- Uses a cost-effective cabling alternative to fiber-optic set ups
| Network | |
|---|---|
| SFP transceiver type | Copper |
| Networking standards | IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| Technical details | |
| Package width | 118 mm |
| Package height | 35 mm |
| Hot-Plug support | Yes |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 100 m |
| Duplex system | Full |
| Ethernet LAN | Yes |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-Plug support | Yes |
| Mean time between failures (MTBF) | 4655371 h |
| SFP transceiver type | Copper |
| Ethernet LAN | Yes |
| Digital Diagnostics Monitoring (DDM) | No |
| Auto-negotiation | Yes |
| Networking standards | IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum transfer distance | 100 m |
| Duplex system | Full |
| Maximum data transfer rate | 1000 Mbit/s |
| Interface type | SFP |
| SFP transceiver standard | TX |
| Features | |
| Product colour | Silver |
| Housing material | Aluminium |
| Hot-Plug support | Yes |
| Certification | CE, FCC, UR |
| RoHS compliance | Yes |
| Mean time between failures (MTBF) | 4655371 h |
| Power | |
| Power consumption (typical) | 1.3 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Width | 18 mm |
| Depth | 68 mm |
| Height | 13.8 mm |
| Weight | 21 g |
| Package depth | 93 mm |
| Package width | 118 mm |
| Package height | 35 mm |
| Package weight | 51 g |
| Packaging data | |
| Package depth | 93 mm |
| Number of products included | 1 pc(s) |
| Package width | 118 mm |
| Package height | 35 mm |
| Package weight | 51 g |
| Certificates | |
| Certification | CE, FCC, UR |
| RoHS compliance | Yes |
| Packaging content | |
| Number of products included | 1 pc(s) |
Specifications
UNSPSC Code
43201553
Brand
StarTech
Categories
Networking
Category
Network Transceiver Modules
Interface type
SFP
Maximum Data Transfer Rate
1000 Mbit/s
StarTech.com Cisco Meraki MA-SFP-1GB-TX Compatible SFP Transceiver Module - 10/100/1000BASE-TX
