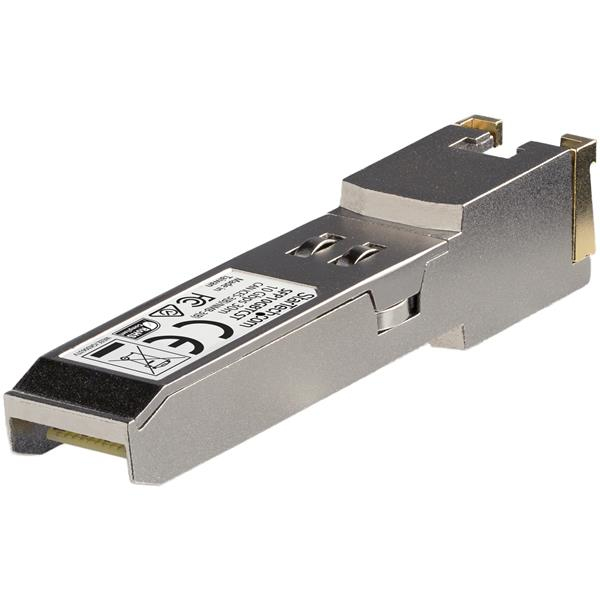

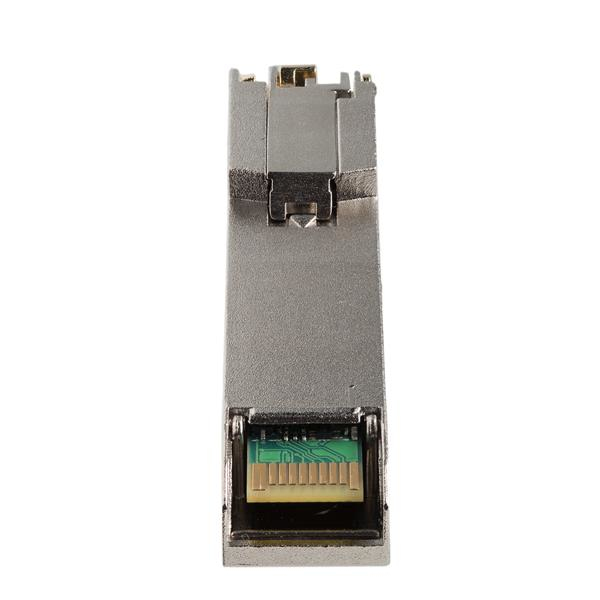

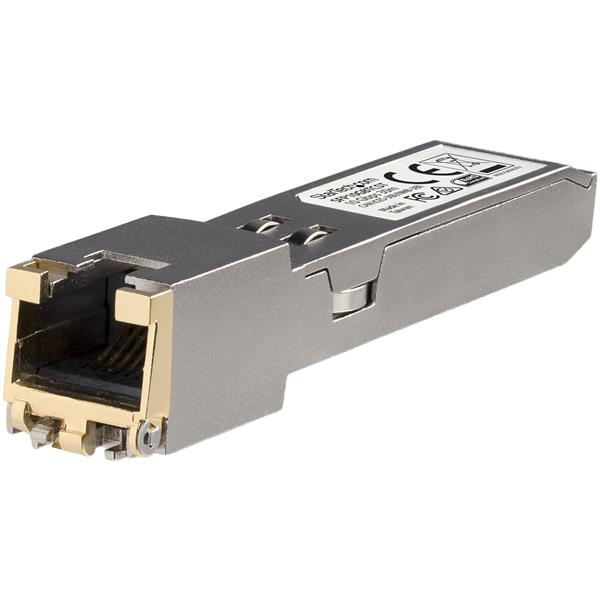

StarTech.com Cisco Compatible SFP+ Transceiver Module - 10GBASE-T
Description
The SFP10GBTCST is an Cisco compatible copper transceiver module that has been designed, programmed and tested to work with Cisco brand switches and routers. It delivers dependable 10 GbE connectivity over copper cable, for 10GBASE-T compliant networks, with a maximum distance of up to 30 m (98.4 ft).
Technical Specifications:
Maximum Data Transfer Rate: 10 Gbps
Type: Copper
Connection Type: RJ45 Connector
Maximum Transfer Distance: 30 m (98.4 ft)
MTBF: 4,598,430 hours
Digital Diagnostics Monitoring (DDM): No
This SFP+ copper module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% compatible with Cisco switches and routers
- StarTech.com SFP modules are backed by a lifetime warranty
- Uses a cost-effective cabling alternative to fiber-optic set ups
| Network | |
|---|---|
| SFP transceiver type | Copper |
| Networking standards | IEEE 802.3an |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Technical details | |
| Package width | 75 mm |
| Package height | 33 mm |
| Hot-swap | Yes |
| Auto MDI/MDI-X | Yes |
| Maximum transfer distance | 30 m |
| Duplex system | Full, Half |
| Ports & interfaces | |
| Ethernet LAN (RJ-45) ports | 1 |
| Performance | |
| Product colour | Silver |
| Housing material | Zinc steel |
| Hot-swap | Yes |
| Mean time between failures (MTBF) | 4598430 h |
| SFP transceiver type | Copper |
| Digital Diagnostics Monitoring (DDM) | No |
| Networking standards | IEEE 802.3an |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Maximum transfer distance | 30 m |
| Duplex system | Full, Half |
| Maximum data transfer rate | 10000 Mbit/s |
| Interface type | SFP+ |
| Features | |
| Product colour | Silver |
| Housing material | Zinc steel |
| Hot-swap | Yes |
| Certification | CE, FCC |
| RoHS compliance | Yes |
| Mean time between failures (MTBF) | 4598430 h |
| Power | |
| Power consumption (typical) | 2.3 W |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 90 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
| Width | 13.4 mm |
| Depth | 69.8 mm |
| Height | 13.8 mm |
| Weight | 24.2 g |
| Package depth | 120 mm |
| Package width | 75 mm |
| Package height | 33 mm |
| Package weight | 31 g |
| Packaging data | |
| Package depth | 120 mm |
| Number of products included | 1 pc(s) |
| Package width | 75 mm |
| Package height | 33 mm |
| Package weight | 31 g |
| Certificates | |
| Certification | CE, FCC |
| RoHS compliance | Yes |
| Packaging content | |
| Number of products included | 1 pc(s) |
