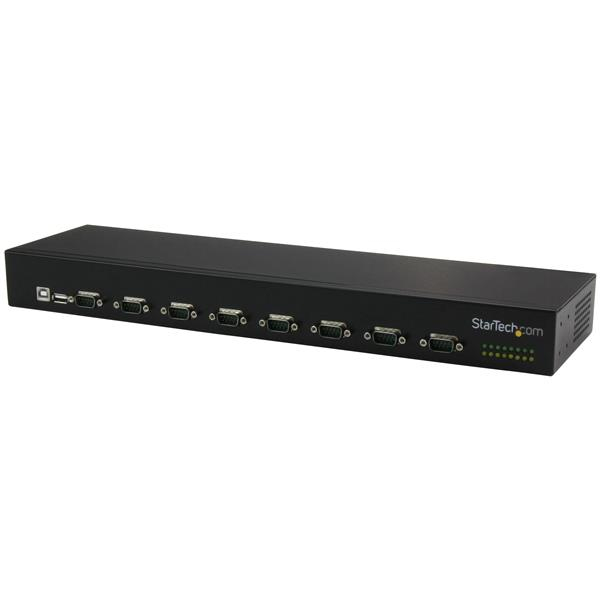

StarTech.com 8-Port USB-to-Serial Adapter Hub
Description
A scalable solution for changing needs
This rack-mountable USB serial hub (FTDI) lets you add eight serial ports (RS232), with full control from your desktop or laptop computer system using a single USB port. The daisy-chain function gives you a cost-effective and scalable way to increase your serial port count and expand as your needs grow, without investing in a more expensive serial hub.
Providing full control of your serial components from a single device, the USB serial hub is ideal for a multitude of applications including industrial automation, self-serve automated kiosks, and monitoring of cameras and security systems.
Built-in convenience
The hub features COM port retention, which retains the assigned serial COM port values. This ensures that the same values are automatically re-assigned to the port provided by the adapter, in the event it is disconnected and re-connected to the host computer.
The hub features a reliable FTDI USB-to-serial chipset, which provides easy installation into a broad range of operating systems.
Meets the demands of industrial environments

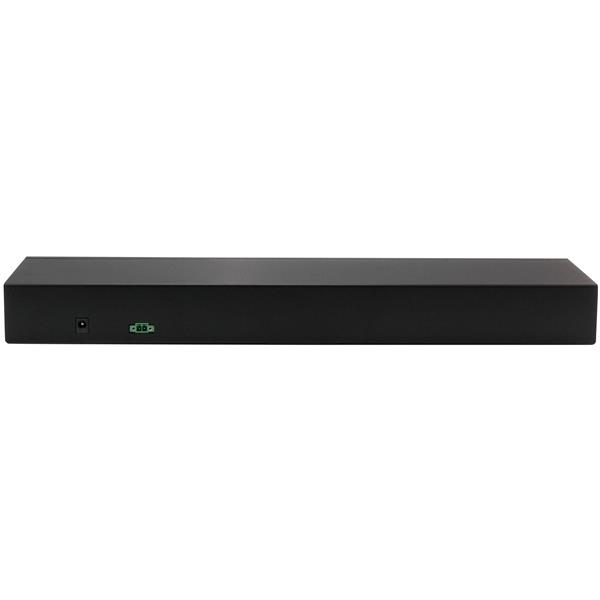

With its all-metal chassis, this rugged, rack-mountable hub fits into standard 19-inch server storage racks to provide an efficient industrial serial solution. It supports an extended operating temperature range of -40°C to 85°C (-40°F to 185°F), ensuring reliable performance even in the harshest environments. The USB-serial hub includes both an AC adapter and terminal block power, providing versatile power options.
The ICUSB23208FD is backed by a StarTech.com 2-year warranty and free lifetime technical support.
| Ports & interfaces | |
|---|---|
| Host interface | USB 2.0 |
| Terminal block port | Yes |
| RS-232 ports | 8 |
| Hub interfaces | Serial |
| USB 2.0 ports quantity | 1 |
| DC-in jack | Yes |
| Ports quantity | 8 |
| Features | |
| LED indicators | Yes |
| Product colour | Black |
| Certification | CE, FCC, RoHS |
| Housing material | Aluminium |
| Host interface | USB 2.0 |
| Power | |
| Power consumption (max) | 36 W |
| Input current | 1.5 A |
| Power plug type | Type B |
| Output voltage | 12 V |
| Output current | 3 A |
| Input voltage | 100 - 240 V |
| Technical details | |
| Product colour | Black |
| Performance | |
| Certification | CE, FCC, RoHS |
| Weight & dimensions | |
| Weight | 1.36 kg |
| Width | 120 mm |
| Depth | 430 mm |
| Height | 45 mm |
| Package width | 449 mm |
| Package depth | 217 mm |
| Package height | 64 mm |
| Package weight | 2.1 kg |
| Packaging data | |
| Package width | 449 mm |
| Package depth | 217 mm |
| Package height | 64 mm |
| Package weight | 2.1 kg |

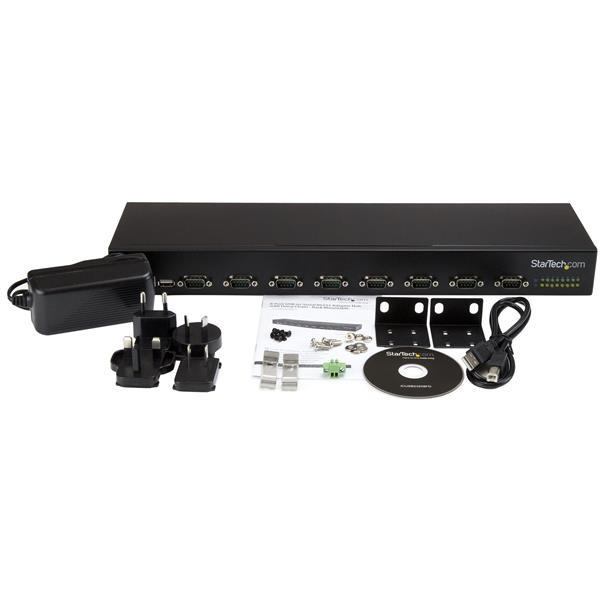

| Packaging content | |
| Terminal block included | Yes |
| Quick installation guide | Yes |
| Included power plug types | AU,EU,NA,UK |
| Cables included | USB |
| Design | |
| LED indicators | Yes |
| Product colour | Black |
| Certification | CE, FCC, RoHS |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 85 °C |
| Storage temperature (T-T) | -65 - 150 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Indication | |
| LED indicators | Yes |
| Other features | |
| Chipset | FTDI - FT4232 |
Specifications
UNSPSC Code
43211603
Brand
StarTech
Categories
Interface Components
Category
Interface Hubs
Ports quantity
8
StarTech.com 8-Port USB-to-Serial Adapter Hub
