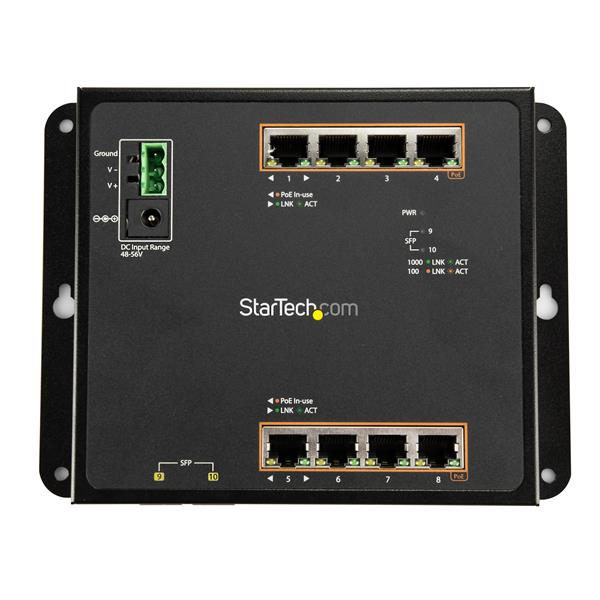

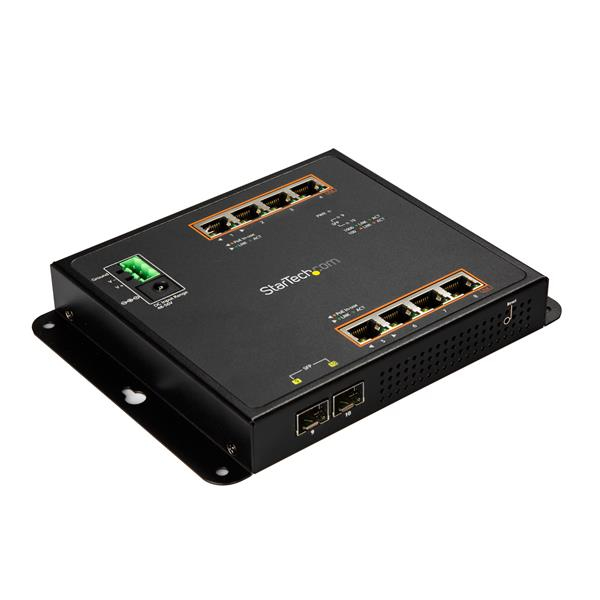

StarTech.com 8-Port PoE+ Gigabit Ethernet Switch plus 2 SFP Connections - Managed - Wall Mount with Front Access

Category Network Switches
IES101GP2SFW IES101GP2SFW
StarTech.com 8-Port PoE+ Gigabit Ethernet Switch plus 2 SFP Connections - Managed - Wall Mount with Front Access StarTech.com 8-Port PoE+ Gigabit Ethernet Switch plus 2 SFP Connections - Managed - Wall Mount with Front Access
StarTech.com 8-Port PoE+ Gigabit Ethernet Switch plus 2 SFP Connections - Managed - Wall Mount with Front Access StarTech.com 8-Port PoE+ Gigabit Ethernet Switch plus 2 SFP Connections - Managed - Wall Mount with Front Access
StarTech.com 8-Port PoE+ Gigabit Ethernet Switch plus 2 SFP Connections - Managed - Wall Mount with Front Access StarTech.com 8-Port PoE+ Gigabit Ethernet Switch plus 2 SFP Connections - Managed - Wall Mount with Front Access
Own Brand

StarTech.com 8-Port PoE+ Gigabit Ethernet Switch plus 2 SFP Connections - Managed - Wall Mount with Front Access

1 Location: 10 In Stock
Product Code: IES101GP2SFW
Category Network Switches

Description

Easily deploy or scale your network with this Gigabit Ethernet switch, by adding eight copper Gigabit Ethernet ports (PoE+) and two fiber-optic SFP slots. This IP30 industrial network switch provides intelligent Layer 2 management. Its rugged, compact design and wall-mount option with front access make it ideal for demanding applications, even where space is limited. Expand your network This versatile switch adapts to your network needs by providing two open SFP slots and eight RJ45 Ethernet ports (PoE+), providing both fiber and copper connections in a single network device. The MSA compliant SFP ports are compatible with 100/1000Mbps networks. The network switch enables you to connect up to eight RJ45 PoE+ devices, so different users can share files and devices, such as printers and scanners, over a LAN connection. Supports PoE+ for flexible use Dual power input (terminal block and DC plug) provides flexible power options. The switch gives you the freedom to place your equipment in locations where power outlets are not available, with support for Power over Ethernet Plus. The network switch provides abundant PoE power, with up to 30 watts for each PoE port (200W budget). Wall-mountable with front access Wall-mount the compact Gigabit switch to provide convenient front access to ports and indicators. It’s ideal for a wide range of applications, including tight installation areas with significant electromagnetic interference, such as control cabinets and panels. The network switch is also DIN-rail mountable. Efficient Layer 2 management The switch delivers efficient and stable performance, with Layer 2 management capabilities. This lets you control packet traffic on a busy network, and customize your settings to achieve optimal network performance, offering improved efficiency and reliability. Rugged IP30 industrial design This rugged network switch features an IP30-rated metal housing and extended temperature range of -40°C to 75°C, which makes it ideal for a wide range of operating conditions. The sturdy metal enclosure offers durability, even in harsh industrial environments. Reliable connection for seamless network performance With support for 10/100/1000Mbps transfer speeds, this managed switch supports full/half-duplex auto-negotiation, jumbo frames and auto MDI/MDIX operation. This lets you connect your network devices quickly and easily, with little to no configuration required. The IES101GP2SFW is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Ports & interfaces
Terminal block portYes
SFP module slots quantity2
Basic switching RJ-45 Ethernet ports quantity8
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Virtual LAN features
Virtual LAN featuresTagged VLAN
Power
Input voltage12 - 48 V
Power plug typeType M
Input current1 A
Technical details
Product colourBlack
Mean time between failures (MTBF)100000 h
Housing materialSteel
Management features
Switch typeManaged
Quality of Service (QoS) supportYes
Switch layerL2
Network
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Full duplexYes
Spanning tree protocolYes
Link aggregationYes
Flow control supportYes
Auto MDI/MDI-XYes
10G supportNo
Virtual LAN featuresTagged VLAN
Data transmission
Store-and-forwardYes
Security
Access Control List (ACL)Yes
Certificates
CertificationCE, FCC, RoHS
Design
Wall mountableYes
International Protection (IP) codeIP30
Product colourBlack
LED indicatorsActivity, Link
Housing materialSteel
CertificationCE, FCC, RoHS
Performance
Maximum data transfer rate2000 Mbit/s
Maximum cable length100 m
Buffer size512 KB
Mean time between failures (MTBF)100000 h
Indication
LED indicatorsActivity, Link
Power over Ethernet (PoE)
Power over Ethernet (PoE) power per port30 W
Power over Ethernet plus (PoE+) ports quantity8
Total Power over Ethernet (PoE) budget200 W
Power over Ethernet (PoE)Yes
Operational conditions
Storage temperature (T-T)-40 - 90 °C
Operating temperature (T-T)-40 - 75 °C
Operating relative humidity (H-H)5 - 95%
Weight & dimensions
Width178 mm
Depth134 mm
Height25 mm
Weight618 g
Packaging data
Terminal block includedYes
Quick start guideYes
Package width170 mm
Package depth300 mm
Package height90 mm
Package weight932 g
Other features
Terminal block portYes
Input voltage12 - 48 V
Packaging content
Terminal block includedYes
Quick start guideYes
UNSPSC Code

43222612

Basic switching RJ-45 Ethernet ports quantity

7 to 8

Basic switching RJ-45 Ethernet ports type

Gigabit Ethernet (10/100/1000)

Brand

StarTech.com

Categories

Networking

Category

Network Switches

Power over Ethernet (PoE)

Y

Rack mounting

N

Switch Type

Managed
