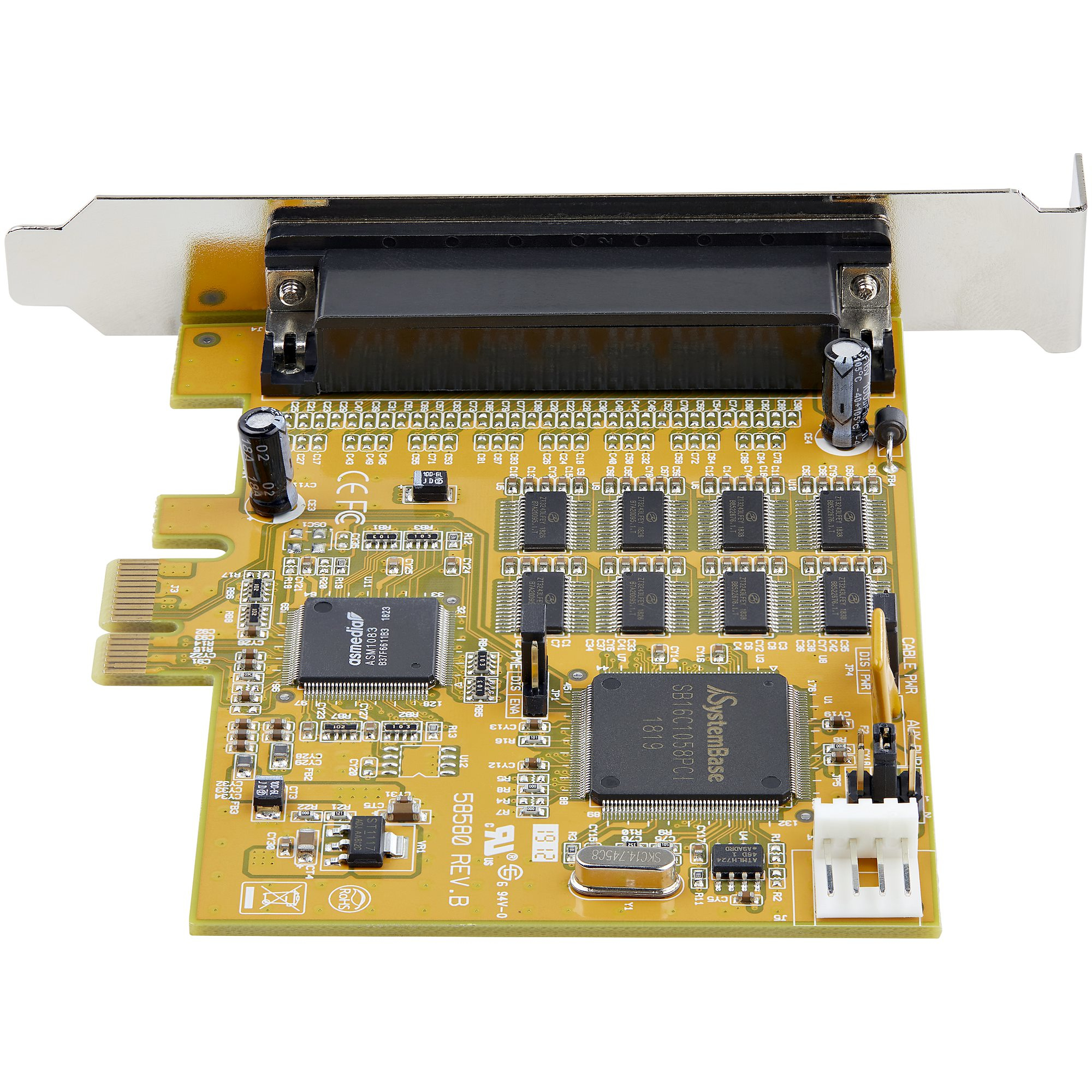

StarTech.com 8-Port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Card - 16C1050 UART - Multiport Serial DB9 Controller/Expansion Card - 15kV ESD Protection - Windows & Linux
Description
Add eight RS-232 DB9 serial ports to your desktop computer, through a PCIe expansion card slots. This PCI express serial card, with 8-port breakout cable, provides you with multiple ports to connect a wide variety of serial peripherals, at speeds of up to 921.4Kbps.
Connect your Peripherals with 8 Serial Ports
The PCI express serial port card makes it easy to add serial ports to connect your peripherals including printers, scanners, credit/debit card readers, PIN pads and modems, industrial controls and more. The 8 port PCIe serial card includes a breakout cable - with 8 DB9 connectors.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments.
PEX8S1050 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- 8 PORT SERIAL CARD: Serial controller card w/ 16C1050 UART based on the Systembase SB16C1058PCI, w/15kV ESD, 8x DB9 ports, bi-directional RS232 speeds up to 921.6Kbps per port & 256 byte FIFO buffer
- OPTIONAL CONFIGURABLE POWER: Multiport serial card provides 12v/5v, or none on pin 9 w/up to 3A total shared; 18"/48cm DB62 to 8x DB9 breakout cable incl; Hex nuts incl for opt screw/nut DB9 interface
- COMPATABILITY: Full profile PCI-e 1x card and fully compliant w/ PCI Express Base Specifications, Revision 1.0a/1.1; Supports Windows (incl. XP and up) and Linux; For standard profile desktop/servers
| Ports & interfaces | |
|---|---|
| Internal | Yes |
| Output interface | Serial |
| Serial interface type | RS-232 |
| Serial ports quantity | 8 |
| Host interface | PCIe |
| Technical details | |
| Chipset | ASMedia - ASM1083, System Base - SB16C1058PCI |
| FIFO (First In, First Out) | 256 B |
| Sustainability certificates | RoHS |
| Performance | |
| Maximum cable length | 0.5 m |
| Stop bits | 1,1.5,2 |
| Data bits | 5,6,7,8 |
| Baud rate | 921.6 Kbit/s |
| Chipset | ASMedia - ASM1083, System Base - SB16C1058PCI |
| FIFO (First In, First Out) | 256 B |
| Product colour | Yellow |
| Colour | |
| Product colour | Yellow |
| Design | |
| Mean time between failures (MTBF) | 160013 h |
| Maximum cable length | 0.5 m |
| Internal | Yes |
| Product colour | Yellow |
| Features | |
| Stop bits | 1,1.5,2 |
| Data bits | 5,6,7,8 |
| Baud rate | 921.6 Kbit/s |
| Chipset | ASMedia - ASM1083, System Base - SB16C1058PCI |
| FIFO (First In, First Out) | 256 B |
| Parity bit | Even, N, Odd |
| Flow Control type | RTS/CTS,XON/XOFF |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| System requirements | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 2000,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows 98SE,Windows CE,Windows Vista,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019 |
| Weight & dimensions | |
| Width | 16 mm |
| Depth | 105 mm |
| Height | 120 mm |
| Weight | 74 g |
| Package width | 190 mm |
| Package depth | 290 mm |
| Package height | 65 mm |
| Package weight | 672 g |
| Packaging data | |
| Package width | 190 mm |
| Package depth | 290 mm |
| Package height | 65 mm |
| Package weight | 672 g |
| Cables included | Serial |
| Quick installation guide | Yes |
| Logistics data | |
| Quantity per master (outer) case | 14 pc(s) |
| Master (outer) case width | 40 cm |
| Master (outer) case length | 51 cm |
| Master (outer) case height | 31.5 cm |
| Other features | |
| Compliance industry standards | 16C1050 UART |
| Chipset | ASMedia - ASM1083, System Base - SB16C1058PCI |
| Packaging content | |
| Cables included | Serial |
| Quick installation guide | Yes |
Specifications
UNSPSC Code
43201552
Brand
StarTech
Categories
System Components
Category
Interface Cards/Adapters
Host interface
PCIe
Internal
Y
Output interface
Serial
