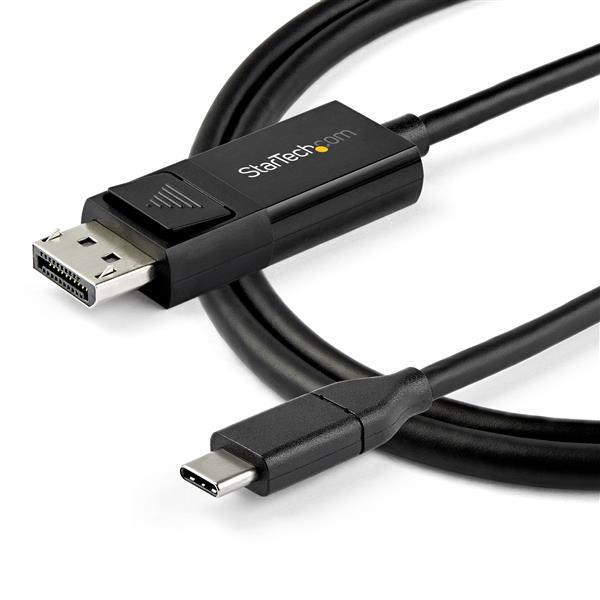

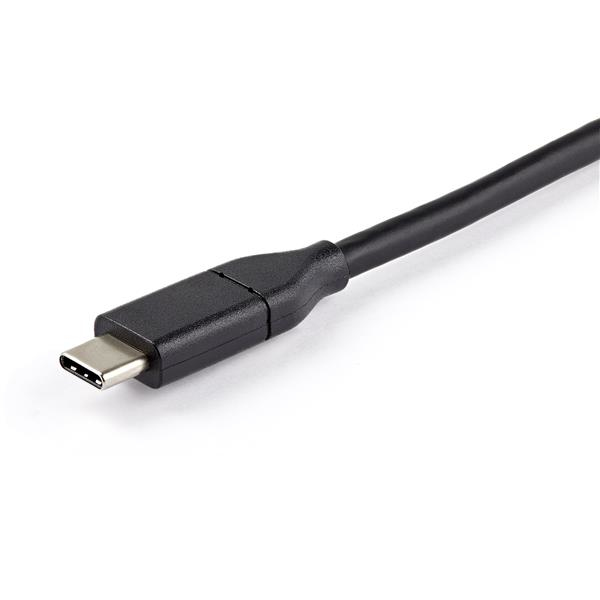

StarTech.com 6ft (2m) USB C to DisplayPort 1.4 Cable 8K 60Hz/4K - Bidirectional DP to USB-C or USB-C to DP Reversible Video Adapter Cable -HBR3/HDR/DSC - USB Type C/TB3 Monitor Cable
Description
This USB-C to DisplayPort 1.4 cable lets you connect your USB Type-C (or Thunderbolt 3) device to a DisplayPort display, or a DP device to a USB-C display with just one cable.
Unparalleled Performance with Support for 8K 30Hz
Supporting four times the resolution of 4K, this 8K DP 1.4 adapter cable delivers the stunning quality of UHD at resolutions up to 7680×4320, and also features HBR3 functionality, providing a bandwidth of up to 32.4Gbps.
The video cable is backward compatible with 4K and 1080p displays, which makes it a great accessory for home, office or other work environments, while future-proofing for 8K implementation.
Easy & Clutter-Free Installation
At 6.6 ft. (2 m) in length, this bidirectional adapter cable delivers a direct connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation. For shorter installations, we also offer a 3.3 ft. (1 m) USB-C to DP cable, enabling you to choose the right cable length for your custom installation needs.
Convenient, Bi-Directional Support
Use this USB-C to DisplayPort adapter cable to output 8K video and audio to a DP display from the USB Type-C (or Thunderbolt 3) port on your laptop or mobile device. With bi-directional capabilities, this cable can also connect your DisplayPort-enabled devices to a display featuring USB-C input. For added convenience, the cable supports both Mac & Windows operating systems.
CDP2DP142MBD is backed by a StarTech.com 3-year warranty and free lifetime technical support.
Note:
Your USB 3.1 Type-C device must support DP Alt Mode to work with this cable.
To achieve 8K resolutions, your source and your destination must support DisplayPort 1.4.
The StarTech.com Advantage
- HIGH PERFORMANCE: Reversible USB-C to DisplayPort 1.4 cable or DP to USB-C cable supports 8K 60Hz/4K 120Hz/HDR/DisplayHDR/ HBR3/Display Stream Compression (DSC)/HDCP 2.2/1.4
- Thunderbolt 3 compatible
- REVERSIBLE CABLE: This 6.6ft/2m DisplayPort to USB-C bidirectional cable works either way to connect your USB-C Laptop to a DisplayPort Monitor or connect a DisplayPort device to a USB Type-C display
| Features | |
|---|---|
| Chipset | Chrontel - CH7213C-BF, Texas Instruments - TUSB544, VIA Labs - VL170 |
| DisplayPort version | 1.4 |
| Product colour | Black |
| Cable length | 2 m |
| Connector 1 | USB Type-C |
| Connector 2 | DisplayPort |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Maximum resolution | 7680 x 4320 pixels |
| RoHS compliance | Yes |
| Certification | CE, FCC, REACH |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Maximum refresh rate | 30 Hz |
| Supported audio channels | 7.1 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Packaging data | |
| Package width | 125 mm |
| Package depth | 225 mm |
| Package height | 25 mm |
| Package weight | 85 g |
| Quantity per pack | 1 pc(s) |
| Weight & dimensions | |
| Weight | 79 g |
| Package width | 125 mm |
| Package depth | 225 mm |
| Package height | 25 mm |
| Package weight | 85 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 23 cm |
| Master (outer) case length | 50 cm |
| Master (outer) case height | 21 cm |
| Quantity per master (outer) case | 80 pc(s) |
Specifications
UNSPSC Code
43202222
Brand
StarTech
Categories
Computer, AV & Power Cables
Category
Video Cable Adapters
Connector 1
USB Type-C
Connector 1 gender
Male connector
Connector 2
DisplayPort
Connector 2 gender
Male connector
