Description

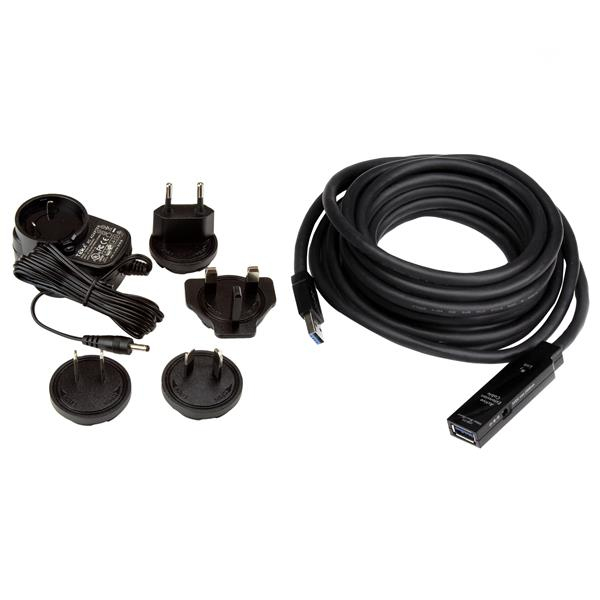

An all in one cable for overcoming distance restrictions as well as power source limitations; the active USB 3.0 extension cable incorporates bus powered active circuitry to ensure performance beyond the length limits of standard USB cables. Up to 4 of these cables can be daisy-chained together, allowing the connection to be extended a total of 20-meters. If necessary, the USB device can be powered from a wall outlet using the Universal AC power adapter provided with the cable.
The USB3AAEXT5M extension cable (USB Extender) supports high speed USB 3.0 transfer rates of up to 5Gbps, and is backed by StarTech.com's 2-year Warranty.
The StarTech.com Advantage
- Extends a USB 3.0 device connection by an additional 5m (16ft) or cascade up to 4 levels for 20m (64ft)
- Powered directly from the USB port or through the included Universal external power adapter
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
Ports & interfaces | |
---|---|
USB version | 3.2 Gen 1 (3.1 Gen 1) |
Connector 1 | USB A |
Connector 2 | USB A |
Connector contacts plating | Nickel |
Features | |
Connector 1 form factor | Straight |
Connector 2 form factor | Straight |
Plug and Play | Yes |
Input voltage | 100 - 240 V |
Output voltage | 5 V |
Output current (max) | 2 A |
Input current (max) | 0.35 A |
USB version | 3.2 Gen 1 (3.1 Gen 1) |
Connector 1 | USB A |
Connector 2 | USB A |
Cable length | 5 m |
Connector contacts plating | Nickel |
Weight | 250 g |
RoHS compliance | Yes |
Product colour | Black |
Certification | CE, FCC, REACH |
Connector 1 gender | Male |
Connector 2 gender | Female |
Quantity per pack | 1 pc(s) |
Cable jacket material | Polyvinyl chloride (PVC) |
Weight & dimensions | |
Cable length | 5 m |
Package width | 147 mm |
Package depth | 228 mm |
Package height | 52 mm |
Package weight | 460 g |
Weight | 250 g |
Power | |
Input voltage | 100 - 240 V |
Output voltage | 5 V |
Output current (max) | 2 A |
Input current (max) | 0.35 A |
Technical details | |
Product colour | Black |
Certificates | |
RoHS compliance | Yes |
Certification | CE, FCC, REACH |
Packaging data | |
Package width | 147 mm |
Package depth | 228 mm |
Package height | 52 mm |
Package weight | 460 g |
Quantity per pack | 1 pc(s) |
Other features | |
Product colour | Black |
Specifications
UNSPSC Code
43202222
Brand
StarTech
Categories
Computer, AV & Power Cables
Category
USB Cables
Connector 1
USB A
Connector 2
USB A
USB version
USB 3.2 Gen 1 (3.1 Gen 1)
