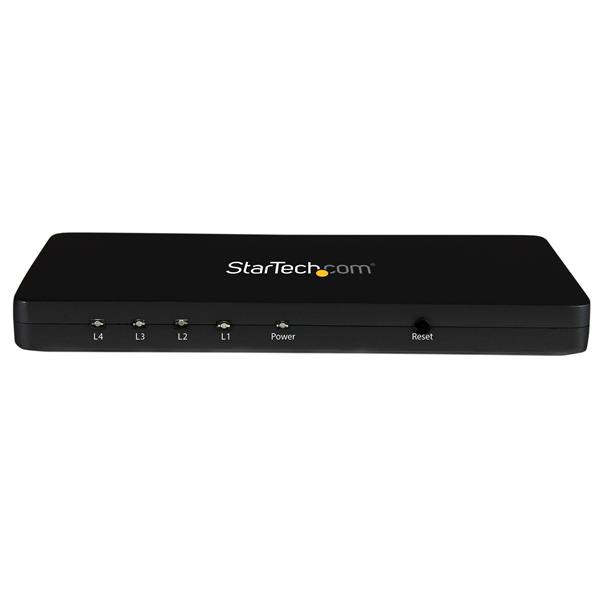

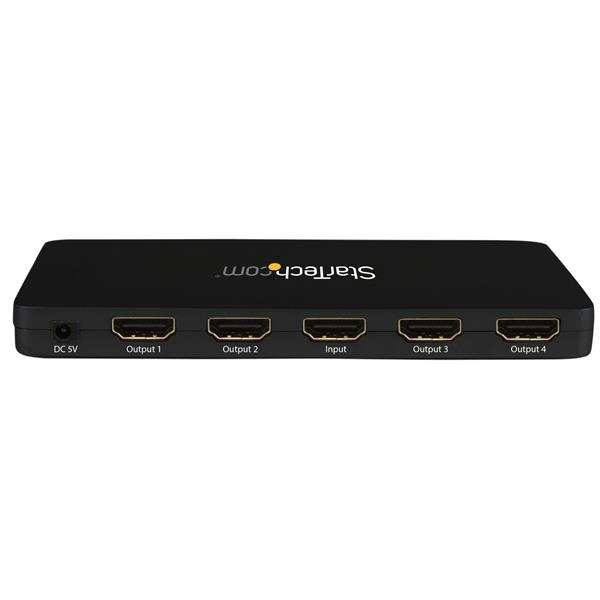

StarTech.com 4K HDMI 4-Port Video Splitter – 1x4 HDMI Splitter w/ Solid Aluminum Housing – 4K 30Hz
Description
With support for Ultra HD (4K) the HDMI splitter ensures astonishing picture quality, four times the resolution of high-definition 1080p at 30 Hz. The 4K splitter is also backward compatible with previous HDMI revisions, supporting 1080p / 720p HDMI video resolution devices. Even if you don't require 4K video today, the ST124HD4K ensures you'll be ready to take advantage of tomorrow's display technology.
Save time while setting up your splitter with EDID emulation ensuring all of your native settings such as resolution and refresh rate are communicated between your video source and displays. EDID emulation maximizes compatibility with your 4K display, ensuring a convenient plug-and-play installation.
Constructed of solid aluminum, the HDMI splitter casing is heavy enough to prevent the unit from shifting or sliding around when you move the attached HDMI cables. Plus, the small footprint allows for seamless integration into any digital signage application.
The ST124HD4K is backed by a StarTech.com 2-year warranty, and free lifetime technical support.
The StarTech.com Advantage
- Take advantage of 4K (Ultra HD) video with compact HDMI 4K splitter enabling you to handle the latest devices and displays
- Ensure your splitter stays where you put it with a solid aluminum housing, unlike lighter plastic splitters that get dragged out of place by attached HDMI cables
- Ensure an ideal video output with EDID emulation
| Ports & interfaces | |
|---|---|
| Video ports quantity | 4 |
| Video port type | HDMI |
| Video out | 4x HDMI |
| HDMI version | 1.4 |
| Video | |
| Maximum refresh rate | 30 Hz |
| Supported graphics resolutions | 1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA) |
| Maximum resolution | 3840 x 2160 pixels |
| Supported video modes | 720p,1080p,2160p |
| Colour | |
| Product colour | Black |
| Features | |
| LED indicators | Activity, Power |
| Housing material | Aluminium |
| Maximum refresh rate | 30 Hz |
| Supported graphics resolutions | 1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA) |
| Maximum resolution | 3840 x 2160 pixels |
| Supported video modes | 720p,1080p,2160p |
| Maximum operating distance | 5 m |
| Product colour | Black |
| Certification | CE, FCC, REACH |
| RoHS compliance | Yes |
| Power | |
| Input current | 0.35 A |
| Output current | 1 A |
| Power consumption (typical) | 5 W |
| Output voltage | 5 V |
| Input voltage | 100 - 240 V |
| Weight & dimensions | |
| Weight | 280 g |
| Width | 85 mm |
| Depth | 140 mm |
| Height | 12 mm |
| Package weight | 530 g |
| Package depth | 360 mm |
| Package width | 300 mm |
| Package height | 95 mm |
| Packaging data | |
| Package weight | 530 g |
| Package depth | 360 mm |
| Package width | 300 mm |
| Package height | 95 mm |
| Certificates | |
| Certification | CE, FCC, REACH |
| RoHS compliance | Yes |
| Packaging content | |
| AC adapter included | Yes |
| Included power plug types | AU,EU,NA,UK |
| Manual | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Indication | |
| LED indicators | Activity, Power |
| Technical details | |
| Housing material | Aluminium |
| Supported audio channels | 7.1 |
| Package width | 300 mm |
| Package height | 95 mm |
| Video out | 4x HDMI |
| Maximum operating distance | 5 m |
| HDMI version | 1.4 |
| Audio support | Yes |
