StarTech.com 4-Port Industrial USB 3.0 Hub with ESD Protection
Description
This TAA compliant 4-port industrial USB 3.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments

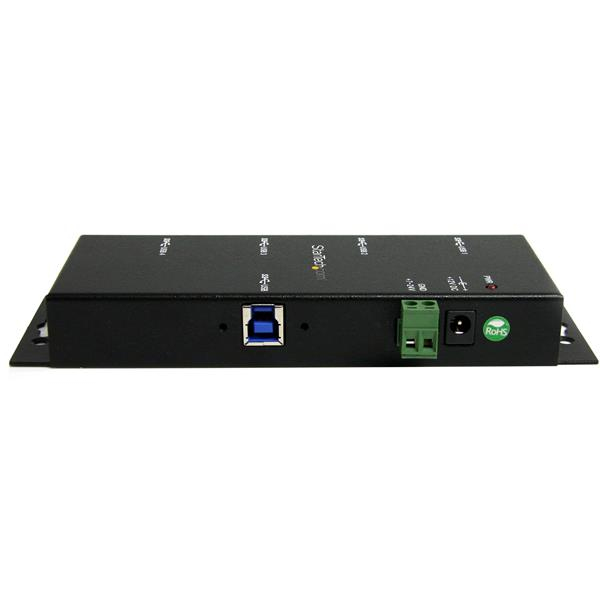

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 55°C) and offers ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect & Charge More USB Devices

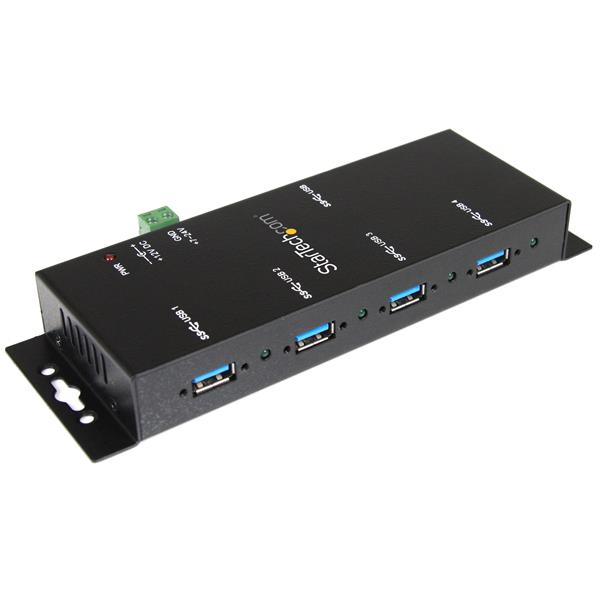

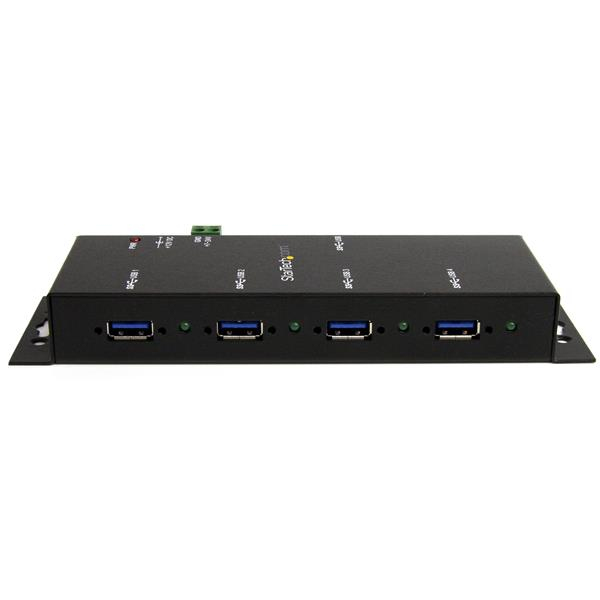

Designed for a high volume of connections, this robust USB 3.0 hub offers four connection ports, for connecting more USB devices and peripherals.
The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 20W total, so you can charge your mobile devices faster than traditional USB ports allow.
Locate the Hub Where You Need It Most

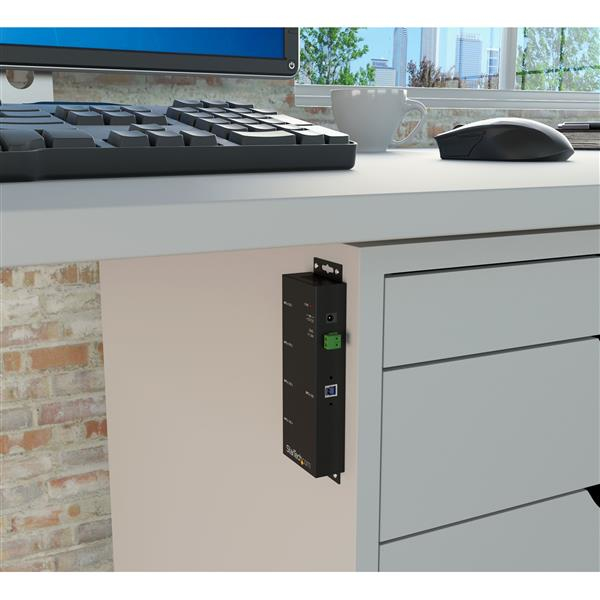

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and an included 1.8-meter USB host cable, you can securely mount the USB 3.0 hub to most surfaces such as a wall, under a desk or rack.
Works with Older USB Devices
The rugged USB hub supports the full 5 Gbps bandwidth of USB 3.0 and is backward compatible with previous USB devices. You can connect your legacy peripherals alongside your newer USB 3.0 devices without any disruptions.
The ST4300USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Four USB 3.0 compliant ports with support for speeds up to 5 Gbps, while still compatible with USB 2.0/1.x devices at the same time
- An all metal chassis, built-in surface mounting brackets and choice of power input method makes this versatile enough for almost any environment
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Terminal block port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| DC-in jack | Yes |
| Ports quantity | 4 |
| Features | |
| Plug and Play | Yes |
| LED indicators | Power, USB |
| Hot-swap | Yes |
| Product colour | Black |
| Certification | RoHS, CE, FCC, TAA, REACH |
| Data transfer rate | 5000 Mbit/s |
| Housing material | Steel |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Data transmission | |
| Data transfer rate | 5000 Mbit/s |
| Power | |
| Power plug type | Type M |
| Power consumption (typical) | 36 W |
| Output voltage | 12 V |
| Output current | 3 A |
| Technical details | |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Product colour | Black |
| Performance | |
| Certification | RoHS, CE, FCC, TAA, REACH |
| Plug and Play | Yes |
| Hot-swap | Yes |
| Data transfer rate | 5000 Mbit/s |
| Mean time between failures (MTBF) | 245881 h |
| System requirements | |
| Windows operating systems supported | Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Mac operating systems supported | Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard |
| Weight & dimensions | |
| Weight | 301 g |
| Width | 59.6 mm |
| Depth | 152 mm |
| Height | 24 mm |
| Package width | 295 mm |
| Package depth | 191 mm |
| Package height | 69 mm |
| Package weight | 1.2 kg |
| Packaging data | |
| Package width | 295 mm |
| Package depth | 191 mm |
| Package height | 69 mm |
| Package weight | 1.2 kg |
| Quantity per pack | 1 pc(s) |

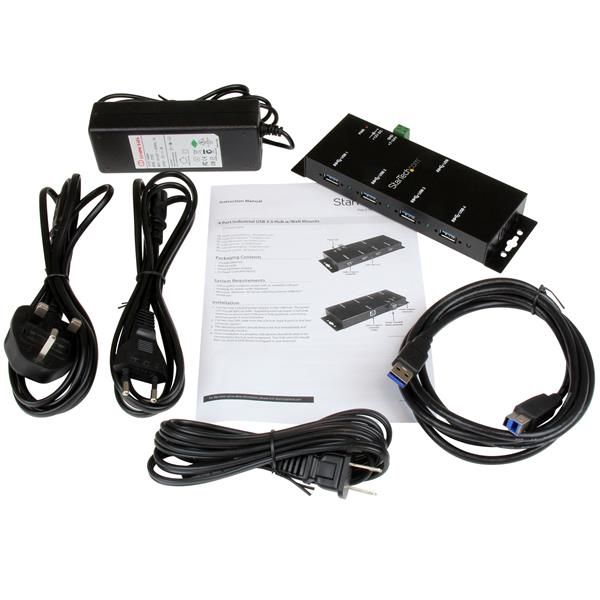

| Packaging content | |
| Manual | Yes |
| Included power plug types | AU,EU,NA,UK |
| Cables included | USB |
| AC adapter included | Yes |
| Design | |
| LED indicators | Power, USB |
| Product colour | Black |
| Certification | RoHS, CE, FCC, TAA, REACH |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | RoHS, CE, FCC, TAA, REACH |
| Indication | |
| LED indicators | Power, USB |
| Other features | |
| Chipset | VIA/VLI - VL811+ |
