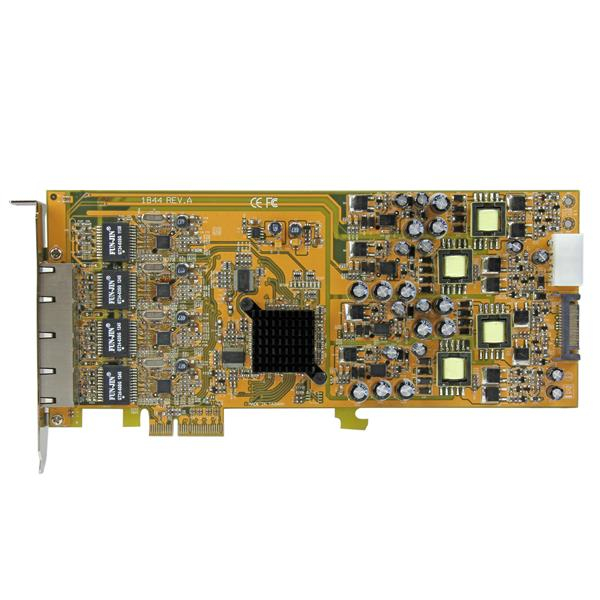

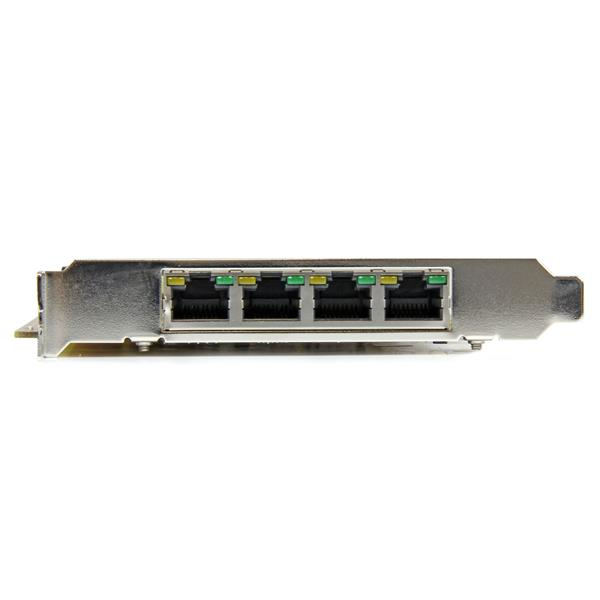

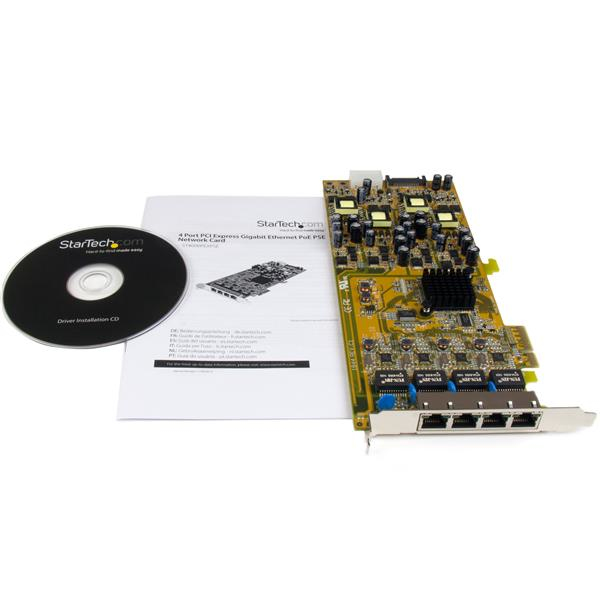

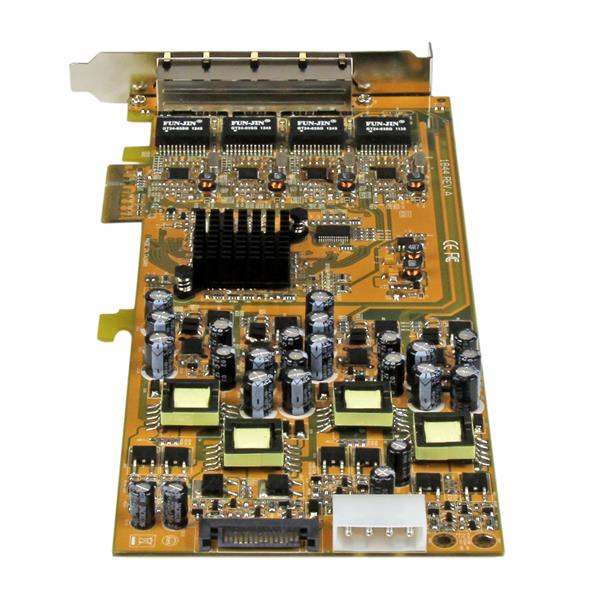

StarTech.com 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC
Description
The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.
The PCI express PoE card supports the IEEE 802.3at (Type 1 and 2) standard for Power Sourcing Equipment (PSE), and can deliver up to 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points.
Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Position your network devices where power outlets aren’t available, with 25.5 Watts per-port PoE output
- Reduce expenses by using existing standard Cat5 (or better) Ethernet cabling to deliver power and data
- Optimize network traffic with support for advanced features, like Jumbo Frames and VLAN tagging
| Ports & interfaces | |
|---|---|
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of SATA power connectors | 1 |
| Internal | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Interface | Ethernet |
| Host interface | PCI Express |
| Connectivity technology | Wired |
| Bandwidth | |
| Buffer size | 48 KB |
| Full duplex | Yes |
| Maximum data transfer rate | 2000 Mbit/s |
| Network | |
| Chipset | RTL8111E |
| Jumbo frames | 9000 |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000BaseT(X) |
| Networking standards | IEEE 802.1p,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Jumbo frames support | Yes |
| Full duplex | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate | 2000 Mbit/s |
| Technical details | |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| PCI Card form factor | Full-height |
| Sustainability certificates | RoHS |
| Software | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Indication | |
| LED indicators | Link, PoE |
| Performance | |
| Server operating systems supported | Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Wake-on-LAN ready | Yes |
| Auto MDIX IEEE | Yes |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Design | |
| Chipset | RTL8111E |
| Certification | CE, FCC, REACH, TAA |
| Internal | Yes |
| PCI Card form factor | Full-height |
| LED indicators | Link, PoE |
| Power | |
| Output voltage | 48 V |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Manual | Yes |
| Drivers included | Yes |
| System requirements | |
| Server operating systems supported | Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 2000,Windows 2000 Professional,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64,Windows Vista Business,Windows Vista Business x64,Windows Vista Enterprise,Windows Vista Enterprise x64,Windows Vista Home Basic,Windows Vista Home Basic x64,Windows Vista Home Premium,Windows Vista Home Premium x64,Windows Vista Ultimate,Windows Vista Ultimate x64,Windows Vista x64,Windows XP,Windows XP Home,Windows XP Home x64,Windows XP Professional,Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
| Package width | 188 mm |
| Package depth | 296 mm |
| Package height | 66 mm |
| Package weight | 428 g |
| Width | 18 mm |
| Depth | 243 mm |
| Height | 120 mm |
| Weight | 102 g |
| Packaging data | |
| Drivers included | Yes |
| Package width | 188 mm |
| Package depth | 296 mm |
| Package height | 66 mm |
| Package weight | 428 g |
| Manual | Yes |
| Certificates | |
| Certification | CE, FCC, REACH, TAA |
| Other features | |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of SATA power connectors | 1 |
| Jumbo frames | 9000 |
| Chipset | RTL8111E |
| Buffer size | 48 KB |
| Manual | Yes |
Specifications
UNSPSC Code
43201404
Brand
StarTech
Categories
System Components
Category
Networking Cards
Connectivity technology
Wired
Host interface
PCI Express
Interface
Ethernet
Internal
Y
StarTech.com 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC
