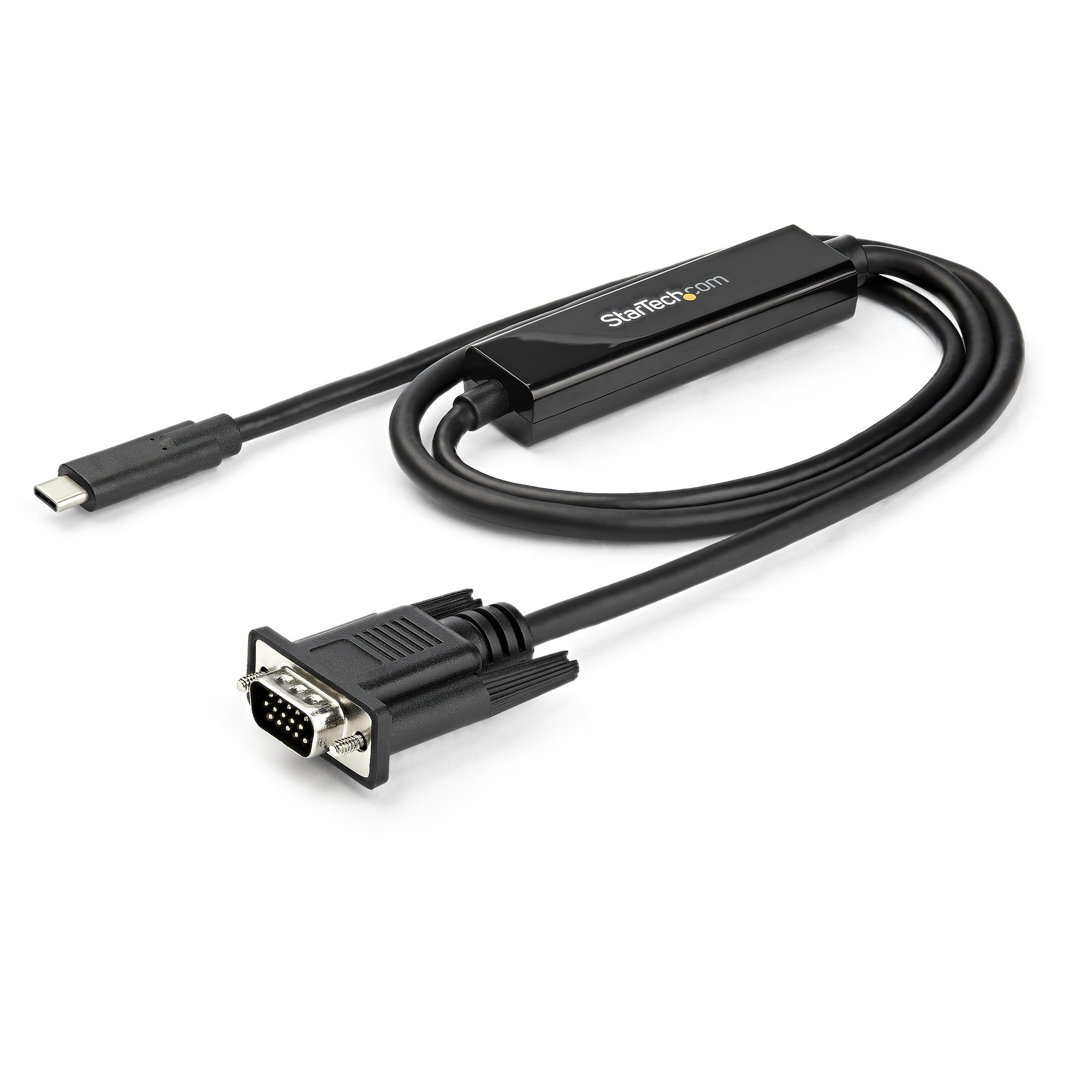

StarTech.com 3ft/1m USB C to VGA Cable - 1920x1200/1080p USB Type C to VGA Video Active Adapter Cable - Thunderbolt 3 Compatible - Laptop to VGA Monitor/Projector - DP Alt Mode HBR2
Description
This USB-C to VGA cable lets you connect your Thunderbolt 3 or USB Type-C enabled device to your computer monitor with just one cable, providing you with a convenient, clutter-free solution.
Astonishing Picture Quality
The USB-C to VGA adapter cable lets you harness the video capabilities that are built into your computer's USB-C connection, to deliver astonishing resolutions up to 1920 x 1200.
Plus, the adapter is backward compatible with 1080p displays, which makes it a great accessory for home, office or other work environments.
Clutter-Free Installation
At 3.3 ft. (1 m) in length, this computer monitor cable delivers a compact connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation. For longer installations, we also offer a 6.6 ft. (2 m) (CDP2VGAMM2MB) and a 9.8 ft. (3 m) (CDP2VGA3MBNL) USB-C to VGA cable, enabling you to choose the right cable length for your custom installation needs.
Hassle-Free Connection
The reversible USB-C connector offers an easy and convenient connection. To ensure an easy operation and installation, this USB-C to VGA cable works with both Windows and Mac computers and supports plug-and-play installation.
CDP2VGAMM1MB is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note: Your USB-C port must support DisplayPort over USB-C (DP Alt Mode) in order to work with this adapter.
The StarTech.com Advantage
- DIGITAL TO ANALOG: 3.3ft/1m USB-C (DP 1.2 Alt Mode HBR2) active adapter cable connects a single VGA display supporting 1920x1200 & 1080p at 60Hz
- EDID & DDC pass-through
- Thunderbolt 3 compatible
| Features | |
|---|---|
| Chipset | NXP - PTN5100 |
| Product colour | Black |
| Cable length | 1 m |

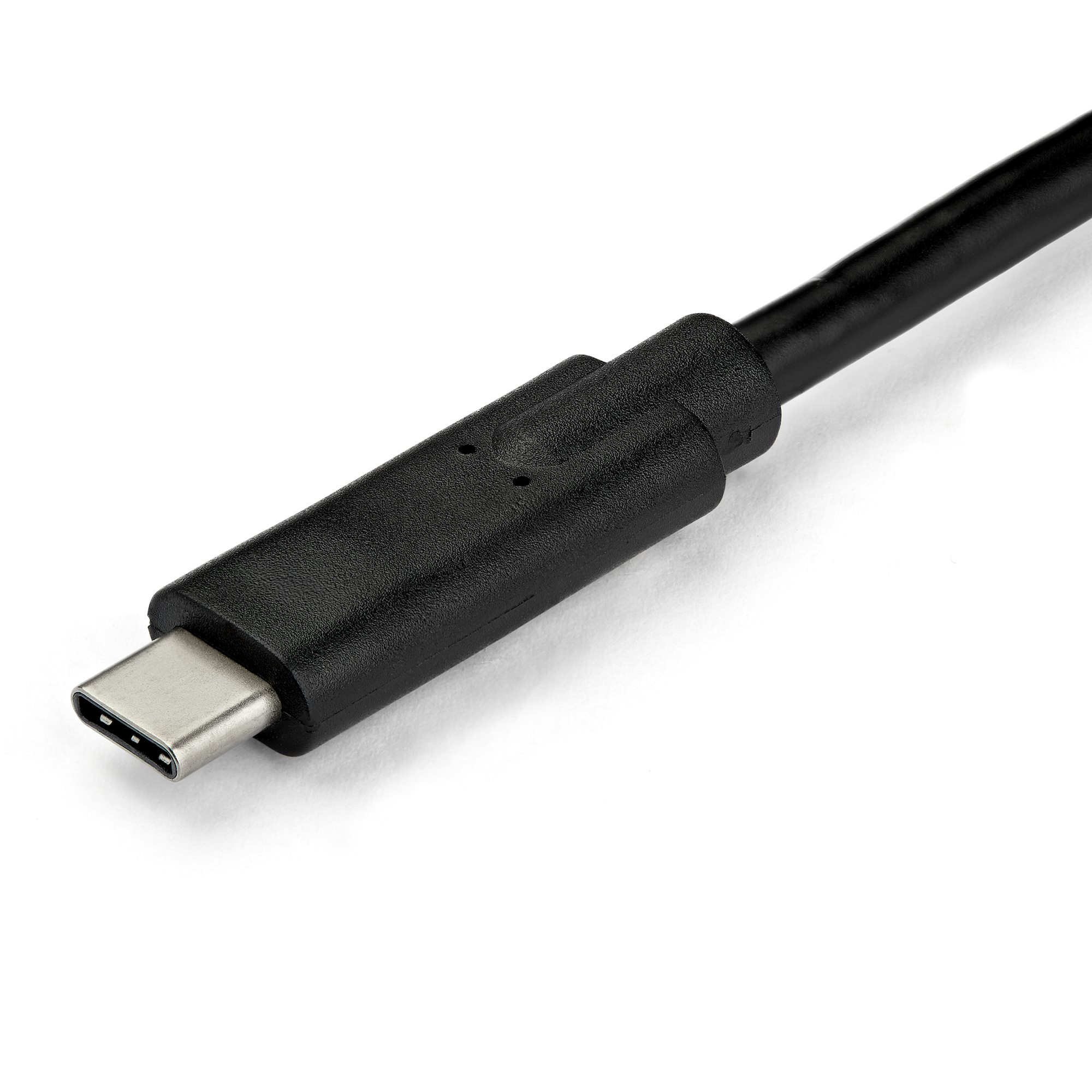

| Connector 1 | USB Type-C |

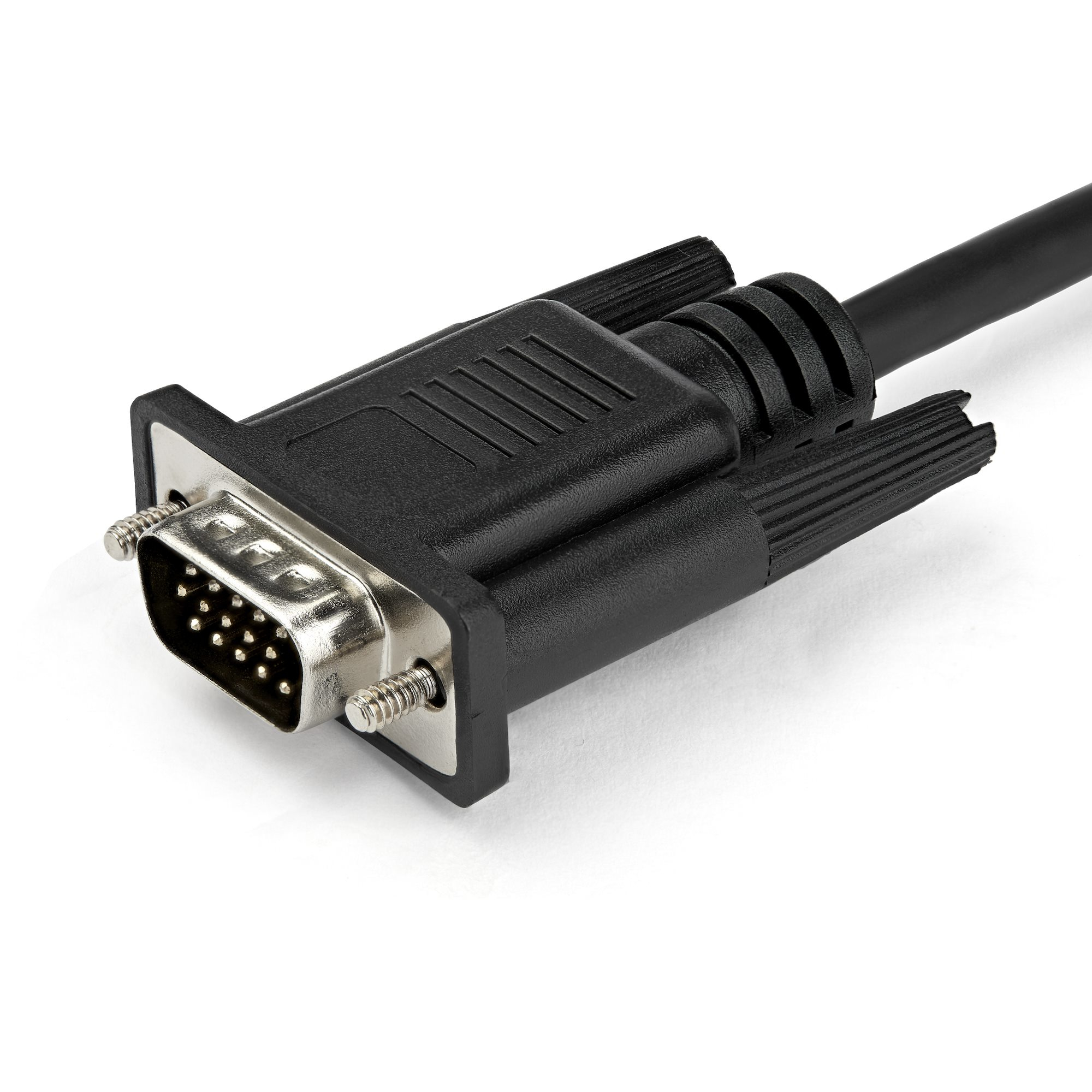

| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Maximum resolution | 1920 x 1200 pixels |
| Supported graphics resolutions | 1024 x 768 (XGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA) |
| Supported video modes | 720p,1080p |
| Plug and Play | Yes |
| RoHS compliance | Yes |
| Certification | CE, FCC, REACH |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Packaging data | |
| Package width | 125 mm |
| Package depth | 225 mm |
| Package height | 10 mm |
| Package weight | 99 g |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Width | 35 mm |
| Height | 15 mm |
| Depth | 1000 mm |
| Weight & dimensions | |
| Width | 35 mm |
| Height | 15 mm |
| Depth | 1000 mm |
| Weight | 93 g |
| Package width | 125 mm |
| Package depth | 225 mm |
| Package height | 10 mm |
| Package weight | 99 g |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 32.4 cm |
| Master (outer) case length | 50.8 cm |
| Master (outer) case height | 21.8 cm |
| Quantity per master (outer) case | 100 pc(s) |
Specifications
UNSPSC Code
43202222
Brand
StarTech
Categories
Computer, AV & Power Cables
Category
Video Cable Adapters
Connector 1
USB Type-C
Connector 1 gender
Male connector
Connector 2
VGA (D-Sub)
Connector 2 gender
Male connector
