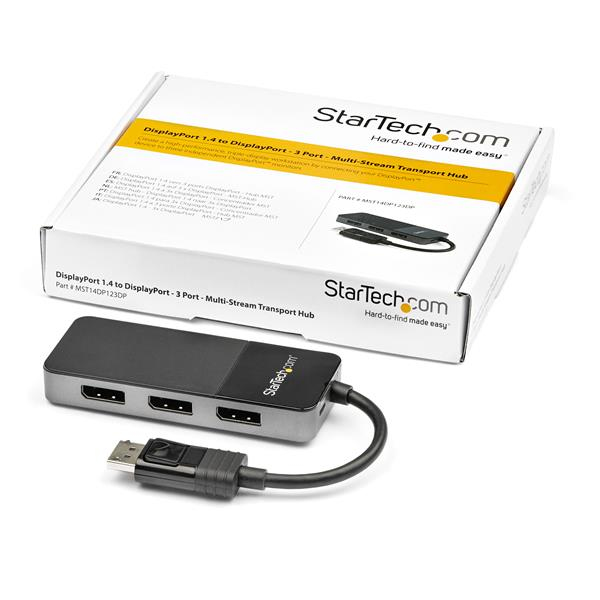

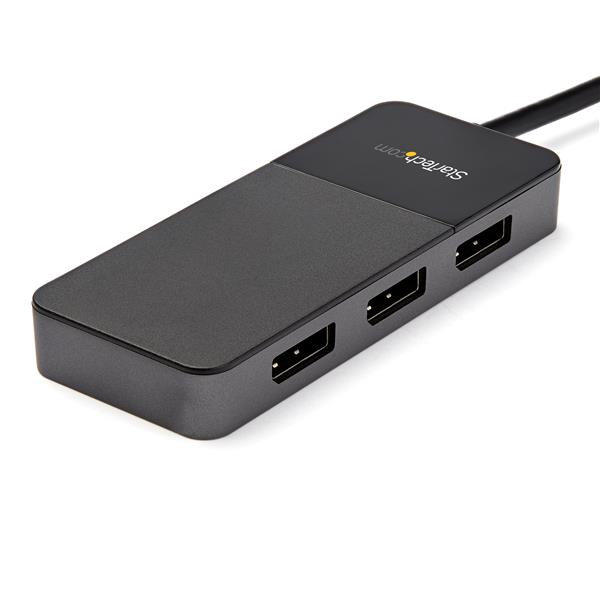

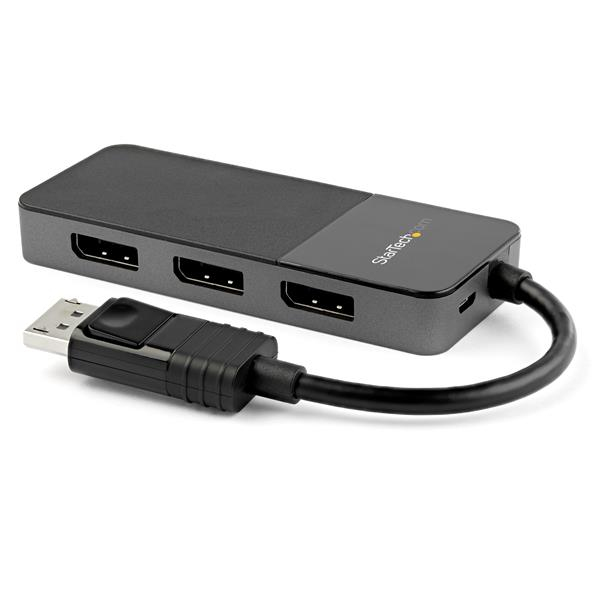

StarTech.com 3-Port DisplayPort MST Hub - DP 1.4
Description
This 3-port DisplayPort MST hub lets you create a high-performance workstation by connecting three DisplayPort monitors to your DisplayPort device, helping to increase and maximize your productivity. The multi-monitor splitter supports High Dynamic Range (HDR) and provides sharper images with enhanced video.
Incredible Picture Quality
Supporting four times the resolution of 4K, this DP 1.4 MST hub delivers the stunning quality of UHD at resolutions up to 7680×4320 at 30Hz on a single monitor and supports multi-monitor applications at lower resolutions and refresh rates, enabling a dynamic work environment whether you’re in the office, at home or traveling.
Display 1
Display 2
Display 3
8K (7680x4320) @ 30Hz
X
X
5K (5120x2880) @ 60Hz
1080p (1920x1080) @ 30Hz
X
4K (3840x2160) @ 60Hz
4K (3840x2160) @ 30Hz
4K (3840x2160) @ 30Hz
2K (2560x1600) @ 60Hz
2K (2560x1600) @ 60Hz
2K (2560x1600) @ 60Hz
1080p (1920x1080) @ 60Hz
1080p (1920x1080) @ 60Hz
1080p (1920x1080) @ 60Hz
Both your source and destination must support DisplayPort 1.4 in order to achieve maximum resolution (8K 30Hz).
Lower resolutions and refresh rates may also be supported.
Multi-Tasking Made Easy

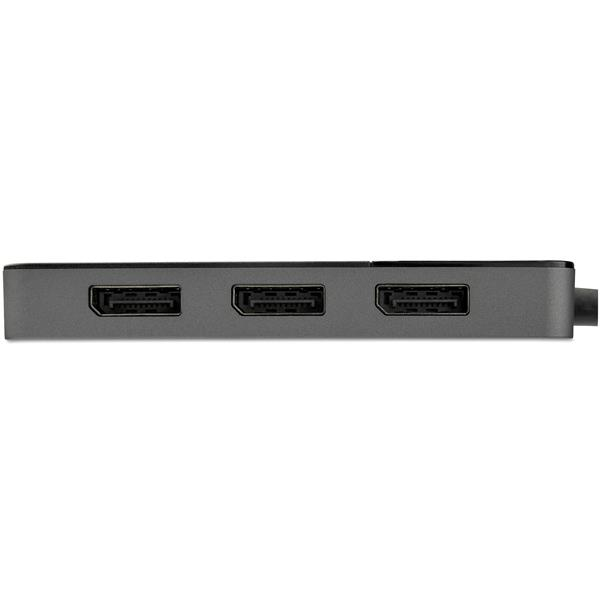

This DisplayPort to 3x DisplayPort MST hub enables you to daisy chain three displays to your DP computer, making multi-tasking much easier. Using this multi-monitor video splitter, you can mirror your display onto multiple monitors, stream independent content to each display or extend your screen to create a video wall effect.
Hassle-Free Setup

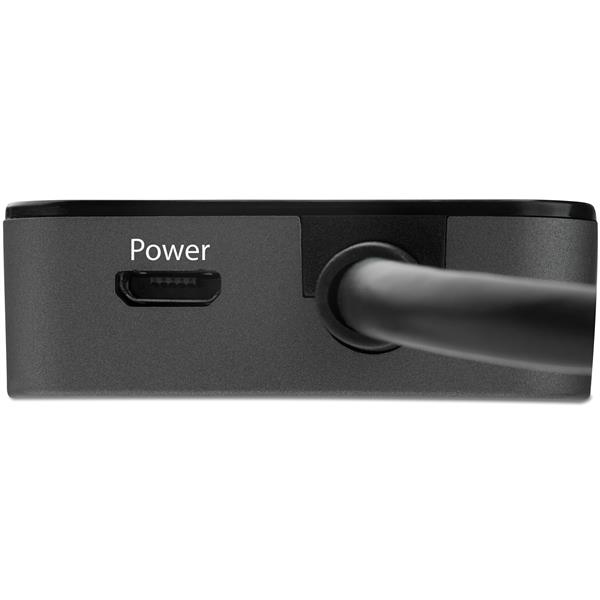

Multi-stream transport offers an easy setup, by natively working on any Windows device. It offers plug-and-play installation with no drivers or software required. Additionally, the DisplayPort MST hub is bus-powered (with the included micro-USB cable), creating an ultra-portable solution for business and IT professionals.
MST14DP123DP is backed by a StarTech.com 3-year warranty, and free lifetime technical support.
The StarTech.com Advantage
- Maximize your productivity by connecting up to three independent DisplayPort monitors to your computer using this Multi-Stream Transport (MST) hub
- Cutting-edge video quality with support for UHD video resolutions up to 8K on a single monitor or 4K on all three displays
- Optimize your visual experience with the next generation of display technology
| Ports & interfaces | |
|---|---|
| Video ports quantity | 3 |
| Video port type | DisplayPort |
| Video out | 3x DisplayPort |
| Video | |
| Maximum refresh rate | 30 Hz |
| Maximum resolution | 7680 x 4320 pixels |
| Colour | |
| Product colour | Black, Grey |
| Features | |
| Housing material | Plastic |
| Maximum refresh rate | 30 Hz |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Maximum resolution | 7680 x 4320 pixels |
| Product colour | Black, Grey |
| Certification | CE, FCC, REACH |
| RoHS compliance | Yes |
| HD type | 8K Ultra HD |
| Power | |
| USB powered | Yes |
| Weight & dimensions | |
| Weight | 55 g |
| Width | 105 mm |
| Depth | 43 mm |
| Height | 14 mm |
| Package weight | 132 g |
| Package depth | 170 mm |
| Package width | 142 mm |
| Package height | 30 mm |
| Packaging data | |
| Package weight | 132 g |
| Package depth | 170 mm |
| Package width | 142 mm |
| Package height | 30 mm |
| Certificates | |
| Certification | CE, FCC, REACH |
| RoHS compliance | Yes |
| Packaging content | |
| Cables included | Micro-USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Technical details | |
| Maximum cable length | 2 m |
| Housing material | Plastic |
| Package width | 142 mm |
| Package height | 30 mm |
| Video out | 3x DisplayPort |
| System requirements | |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
