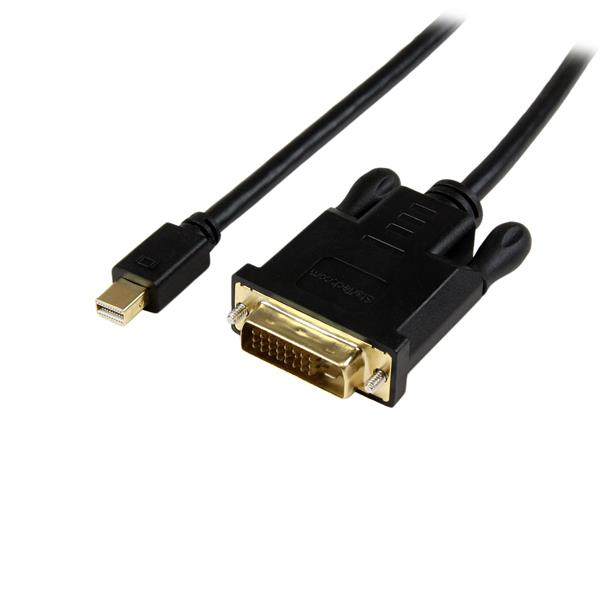

StarTech.com 3 ft Mini DisplayPort to DVI Active Adapter Converter Cable - mDP to DVI 1920x1200 - Black
Description
The MDP2DVIMM3BS 3ft. active Mini DisplayPort to DVI adapter cable lets you directly connect your Mini DP video source (such as any of your MacBook or Microsoft Surface Pro devices with mDP) directly to a nearby DVI monitor or projector, saving the expense of additional adapters while eliminating the clutter of excess cable.
For guaranteed compatibility with virtually any Mini DisplayPort output the active Mini DP to DVI adapter supports dual-mode (DP++) as well as single-mode DisplayPort signals. Unlike passive adapters, this ensures the MDP2DVIMM3BS can be used with graphics cards that are not capable of outputting multimode DP++ signals, such as ATI Eyefinity cards.
Compatible with Intel Thunderbolt, when connected directly to a supporting DisplayPort over Thunderbolt I/O port, the adapter supports resolutions up to 1920 x 1200.
The MDP2DVIMM3BS is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note:
This adapter is not compatible for use with the Apple Cinema Display.
The StarTech.com Advantage
- Hassle-free installation with cable-style adapter enabling you to connect your Mini DisplayPort source directly to a DVI display with no additional video cable required
- Save upgrade costs by connecting your Mini DisplayPort computer to a DVI monitor or Projector
- Reduces clutter, with a short cable design
| Features | |
|---|---|
| Converter type | Active |
| Chipset | Parade - PS171 |
| DisplayPort version | 1.2 |
| Product colour | Black |
| Cable length | 0.9 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Maximum resolution | 1920 x 1200 pixels |
| Supported graphics resolutions | 1024 x 768 (XGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA) |
| Supported video modes | 1080p |
| Plug and Play | Yes |
| RoHS compliance | Yes |
| Certification | CE, FCC, REACH |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Dual Link DVI | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 40 - 85% |
| Packaging data | |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 15 mm |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Width | 40 mm |
| Height | 15 mm |
| Depth | 920 mm |
| Weight & dimensions | |
| Width | 40 mm |
| Height | 15 mm |
| Depth | 920 mm |
| Weight | 154.7 g |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 15 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
Specifications
UNSPSC Code
43202222
Brand
StarTech
Categories
Computer, AV & Power Cables
Category
Video Cable Adapters
Connector 1
Mini DisplayPort
Connector 1 gender
Male connector
Connector 2
DVI-D
Connector 2 gender
Male connector
