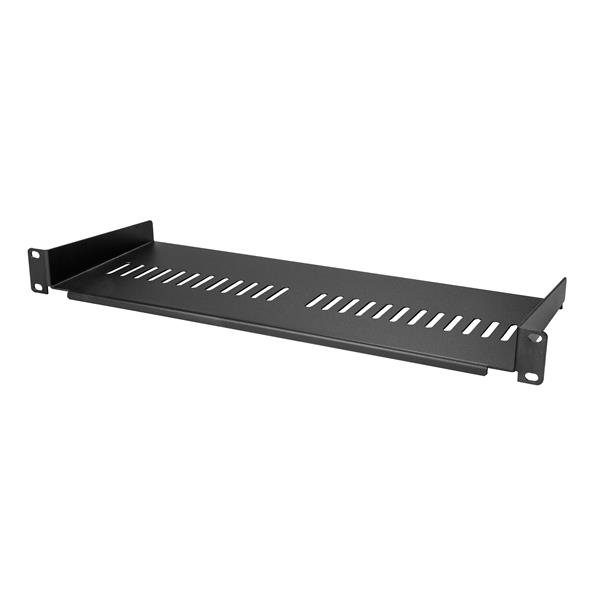

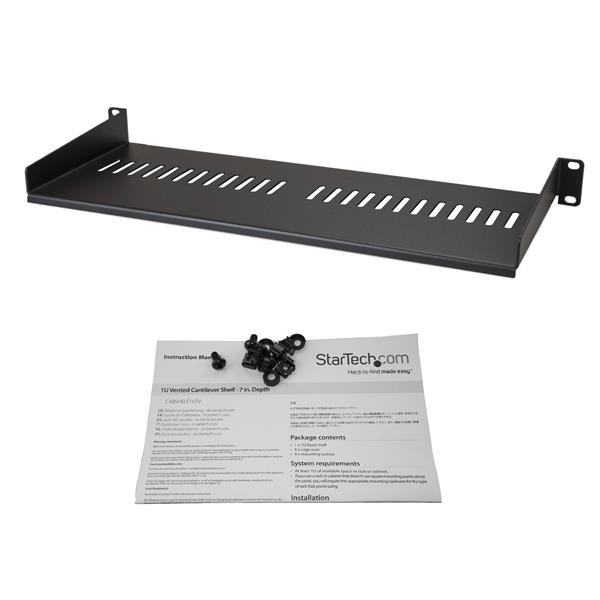

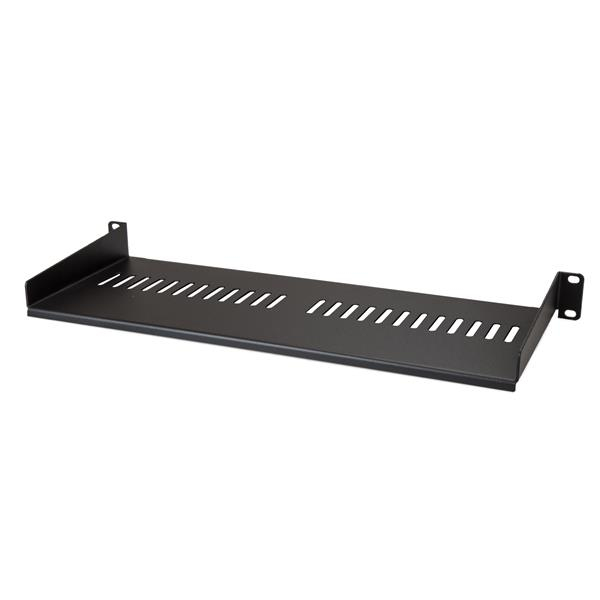

StarTech.com 1U Vented Server Rack Cabinet Shelf - 7in Deep Fixed Cantilever Tray - Rackmount Shelf for 19" AV/Data/Network Equipment Enclosure with Cage Nuts & Screws - 44lbs capacity
Description
This 1U rack shelf lets you add 7 in. (17.5 cm) of flat storage space to any EIA-310 compliant server rack or cabinet. The shelf is vented to improve air flow and help lower temperatures in your rack.
Ensure your equipment is secure
The durable fixed-rack shelf can hold up to 44 lb. (20 kg) of equipment and is constructed using SPCC commercial-grade cold-rolled steel.
Make the most of your available space
The 1U cantilever shelf lets you optimize your working space by giving you the ability to mount equipment to your rack instead of taking up desk or floor space. It’s perfect for your SOHO (small office, home office) environment, server room or any other location with limited space available.
Customize your setup
You can install the 1U vented rack shelf in your rack at any height, giving you a stable surface for placing equipment that's un-mountable or storing your tools.
The CABSHELF1U7V is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- UNIVERSAL COMPATIBILITY: 1U 19" server rack cabinet shelf 7" deep for universal fit in any existing EIA/ECA-310 compliant server/AV rack or cabinet & includes M6 Cage nuts & screws for mounting shelf
- VENTED SHELF: This data/network rack shelf improves airflow around devices on the shelf and within the rack
- DURABLE DESIGN: Heavy-duty cantilever shelf tray that is easy to install, constructed of durable 16 gauge SPCC commercial cold-rolled steel with support for weight up to 44 lbs with lifetime warranty
| Features | |
|---|---|
| RoHS compliance | Yes |
| Certification | REACH |
| Type | Rack shelf |
| Rack capacity | 1U |
| Maximum weight capacity | 20 kg |
| Product colour | Black |
| Compliance industry standards | EIA/ECA-310-E |
| Housing material | Steel |
| Weight & dimensions | |
| Package width | 210 mm |
| Package height | 57 mm |
| Package depth | 500 mm |
| Package weight | 1.75 kg |
| Width | 440 mm |
| Weight | 1.4 kg |
| Height | 44 mm |
| Depth | 175 mm |
| Maximum weight capacity | 20 kg |
| Packaging data | |
| Package width | 210 mm |
| Package height | 57 mm |
| Package depth | 500 mm |
| Package weight | 1.75 kg |
| Quantity per pack | 1 pc(s) |
| Packaging content | |
| Screws included | Yes |
| Nuts included | Yes |
| Number of screws | 4 |
| Number of nuts | 4 |
| Technical details | |
| Type | Rack shelf |
| Rack capacity | 1U |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Master (outer) case width | 33.3 cm |
| Master (outer) case length | 52.4 cm |
| Master (outer) case height | 22.1 cm |
| Quantity per master (outer) case | 5 pc(s) |
