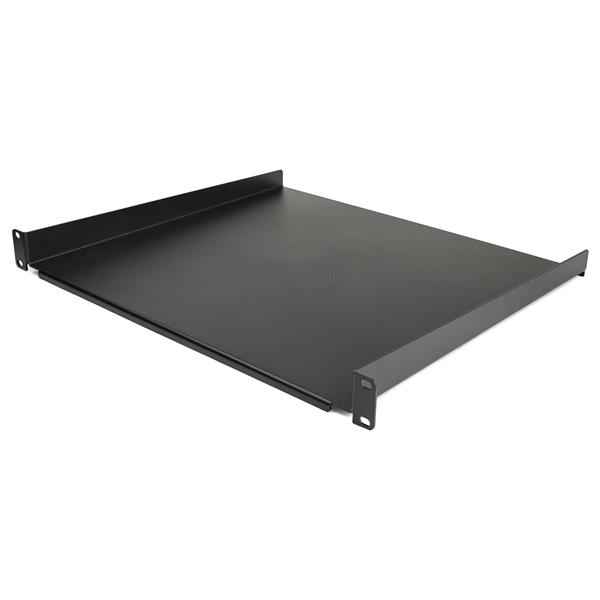

Description
Ensure your equipment is secure
The durable rack mount tray can hold up to 20 kg (44 lbs.) of equipment and is constructed using SPCC commercial-grade cold-rolled steel.
Make the most of your available space
The 1U cantilever shelf lets you optimize your working space by giving you the ability to mount equipment to your 19-inch rack instead of taking up desk or floor space. It’s perfect for your SOHO (small office, home office) environment, server room, data center or any other location with limited space available.
Customize your setup
You can install the 1U network cabinet shelf in your rack at any height, giving you a stable surface for placing equipment that's un-mountable such as a computer, or for storing your tools.
The Choice of IT Pros Since 1985
StarTech.com conducts thorough compatibility and performance testing on all our products to ensure we are meeting or exceeding industry standards and providing high-quality products to IT Professionals. Our local StarTech.com Technical Advisors have broad product expertise and work directly with our StarTech.com Engineers to provide support for our customers both pre and post-sales.
The CABSHELF116 is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
- UNIVERSAL COMPATIBILITY: 19" EIA/ECA-310 compliant 1U 16" deep server rack cabinet shelf for universal fit in any existing server/AV rack or cabinet & includes M6 Cage nuts & screws for mounting shelf
- DURABLE DESIGN: Heavy-duty cantilever shelf tray that is easy to install, constructed of durable 16 gauge SPCC commercial cold-rolled steel with support for weight up to 44 lbs with lifetime warranty
- FLEXIBLE INSTALLATION: The rackmount shelf can be mounted in multiple orientations to enable flexibility when it comes to install methods, w/lips available on one side to prevent equipment sliding off
Features | |
---|---|
RoHS compliance | Yes |
Certification | CE, REACH |
Type | Rack shelf |
Rack capacity | 1U |
Maximum weight capacity | 20 kg |
Product colour | Black |
Compliance industry standards | EIA/ECA-310-E |
Housing material | Steel |
Weight & dimensions | |
Package width | 545 mm |
Package height | 75 mm |
Package depth | 440 mm |
Package weight | 3.9 kg |
Width | 441 mm |
Weight | 3.26 kg |
Height | 43 mm |
Depth | 401 mm |
Maximum weight capacity | 20 kg |
Packaging data | |
Package width | 545 mm |
Package height | 75 mm |
Package depth | 440 mm |
Package weight | 3.9 kg |
Quantity per pack | 1 pc(s) |
Packaging content | |
Screws included | Yes |
Nuts included | Yes |
Number of screws | 4 |
Number of nuts | 4 |
Screw type | M6-12 |
Washers included | Yes |
Number of washers included | 4 |
Technical details | |
Type | Rack shelf |
Rack capacity | 1U |
Colour | |
Product colour | Black |
Logistics data | |
Master (outer) case width | 57 cm |
Master (outer) case length | 42 cm |
Master (outer) case height | 46 cm |
Quantity per master (outer) case | 5 pc(s) |
Specifications
UNSPSC Code
43201618
Brand
StarTech
Categories
Chassis Components
Category
Rack Accessories
