StarTech.com 12U Server - 4-Post Adjustable Depth (2" to 30") Network Equipment Rack Enclosure w/Casters/Cable Management/Shelf /Locking Dell PowerEdge HP ProLiant ThinkServer
Description

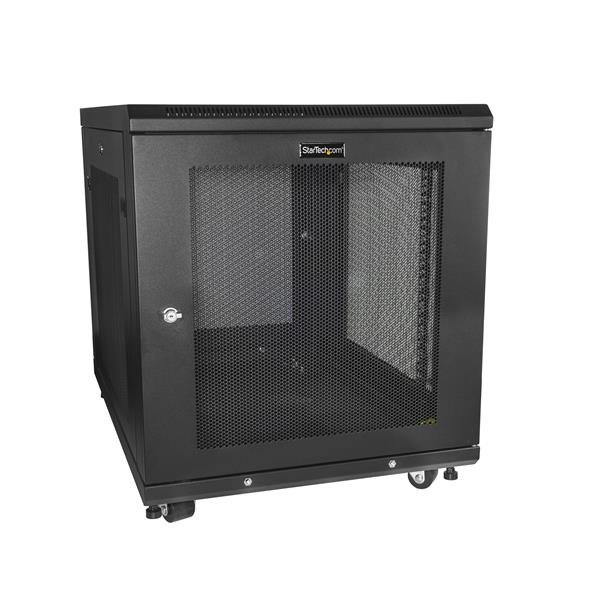

This server rack provides 12U of storage space in a sleek, secure cabinet for storing standard 19” rack-mount devices such as Dell, HP and IBM servers, along with telecommunication and A/V equipment. The rack is compatible with EIA-310 compliant equipment and supports a total load capacity of 450 kg (992 lb.).
Hassle-free equipment installation
This rack includes a variety of features that enable you to easily incorporate plenty of equipment. With adjustable mounting rails, you can easily change the rail depth from 3" up to 30.7" (76.2 mm - 780 mm) to ensure compatibility your standard rack-mount equipment. The added depth also provides support for additional cable and power management behind your equipment. For hassle-free cable management, the rack includes a 3 meter roll of hook-and-loop cable tie that makes it easy to keep your cables neat and tidy by binding them together or binding them to the rack. The self-gripping fabric can be cut to any size, enabling a wrap-around solution for the cables of any rack-mount equipment.

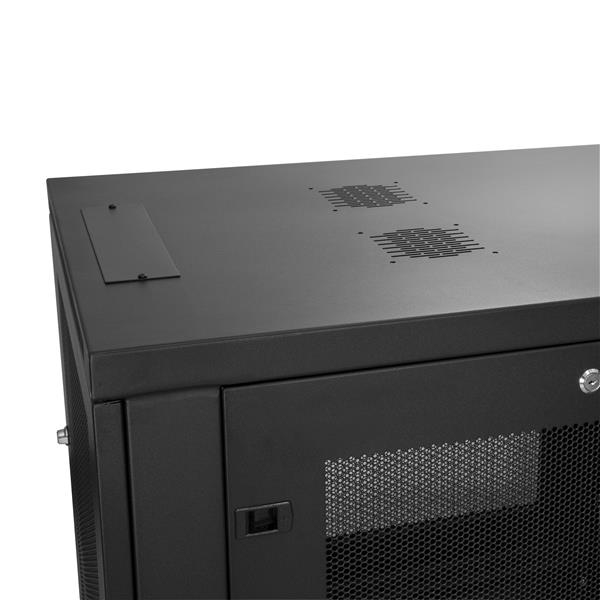

The rack features holes with covers on the ceiling and floor panels that make it easy to run cabling to the inside and outside of the cabinet, for discreet cable management. The rack also features grounding lugs that enable you to ground your equipment for added protection. This rack also includes a 1U shelf that gives you a stable surface for placing equipment that's not rack-mountable or storing your tools.
To provide hassle-free deployment, the rack ships fully assembled.
Securely protect your equipment
To keep your rack-mounted equipment secure, this rack features front and rear locking mesh doors. The mesh doors look great in any server room and help provide passive cooling. The doors are also reversible, which gives you the freedom to choose which side of the rack the door opens from, to suit your server room’s spatial requirements.
The rack also has removable side panels with independent quick-release locks that enable you to access your equipment easily, while still keeping it secure.
Maximum maneuverability, with casters included
The cabinet features casters for hassle-free access to rear-mounted equipment while providing ease of mobility around your office, studio or server room. Plus, the width and height of the rack fit through standard doorways, giving you the freedom to wheel your server rack into different rooms.
The RK1233BKM is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- SECURE RACK: 19" server rack cabinet w/adjustable mounting depth up to 30", internal depth of 33", height 25.2"; Locking doors/sides (2 keys inc.); Rolling/Mobile data/IT/enclosure
- FULLY ASSEMBLED WITH CASTERS: Pre-built w/casters & levelling feet to offer manoeuvrability & stability; 50 M6 Cage nuts/screws, hook & loop tape & 1U shelf provided to easily mount equipment
- DESIGN AND VENTAILATION: Strong mesh doors and side panels with vented top allow for airflow; 1U height intervals marked for identification
| Weight & dimensions | |
|---|---|
| Package depth | 909 mm |
| Package width | 635 mm |
| Package height | 850 mm |
| Package weight | 56.2 kg |
| Inner width | 595 mm |
| Inner depth | 852 mm |
| Mounting depth (max) | 76.2 cm |
| Mounting depth (min) | 7 cm |
| Width | 600 mm |
| Depth | 854 mm |
| Height | 640 mm |
| Weight | 50.8 kg |
| Maximum weight capacity | 450 kg |
| Packaging content | |
| Mounting kit | Yes |
| Nuts included | Yes |
| Number of nuts | 50 |
| Screws included | Yes |
| Number of screws | 50 |
| Features | |
| Key lock | Yes |
| Frame type | Closed |
| Design | 4-post |
| Rack capacity | 12U |
| Castor wheels | Yes |
| Adjustable mounting rails | Yes |
| Back door construction | Steel |
| Front door construction | Steel |
| Side panel construction | Steel |
| Cable management | Yes |
| Mounting hole shape | Square |
| Type | Freestanding rack |
| Maximum weight capacity | 450 kg |
| Material | Aluminium, Steel |
| Product colour | Black |
| Certification | CE, REACH |
| Packaging data | |
| Mounting kit | Yes |
| Nuts included | Yes |
| Number of nuts | 50 |
| Package depth | 909 mm |
| Package width | 635 mm |
| Package height | 850 mm |
| Package weight | 56.2 kg |
| Screws included | Yes |
| Number of screws | 50 |
| Technical details | |
| Package width | 635 mm |
| Package height | 850 mm |
| Type | Freestanding rack |
| Compliance industry standards | EIA/ECA-310-E |
| Sustainability certificates | RoHS |
| Rack capacity | 12U |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, REACH |
| Material | |
| Material | Aluminium, Steel |
| Logistics data | |
| Master (outer) case width | 63.5 cm |
| Master (outer) case length | 90.9 cm |
| Master (outer) case height | 85 cm |
| Quantity per master (outer) case | 1 pc(s) |
| Other features | |
| Compliance industry standards | EIA/ECA-310-E |
Specifications
UNSPSC Code
43201600
Brand
StarTech
Categories
Chassis Components
Category
Rack Cabinets
Rack capacity
12U
Type
Freestanding rack
