StarTech.com 12U 19" Wall Mount Network Rack - Adjustable Depth 12-20" 2 Post Open Frame Server Room Rack for AV/Data/ IT Communication/Computer Equipment/Switch w/Cage Nuts & Screws
Description

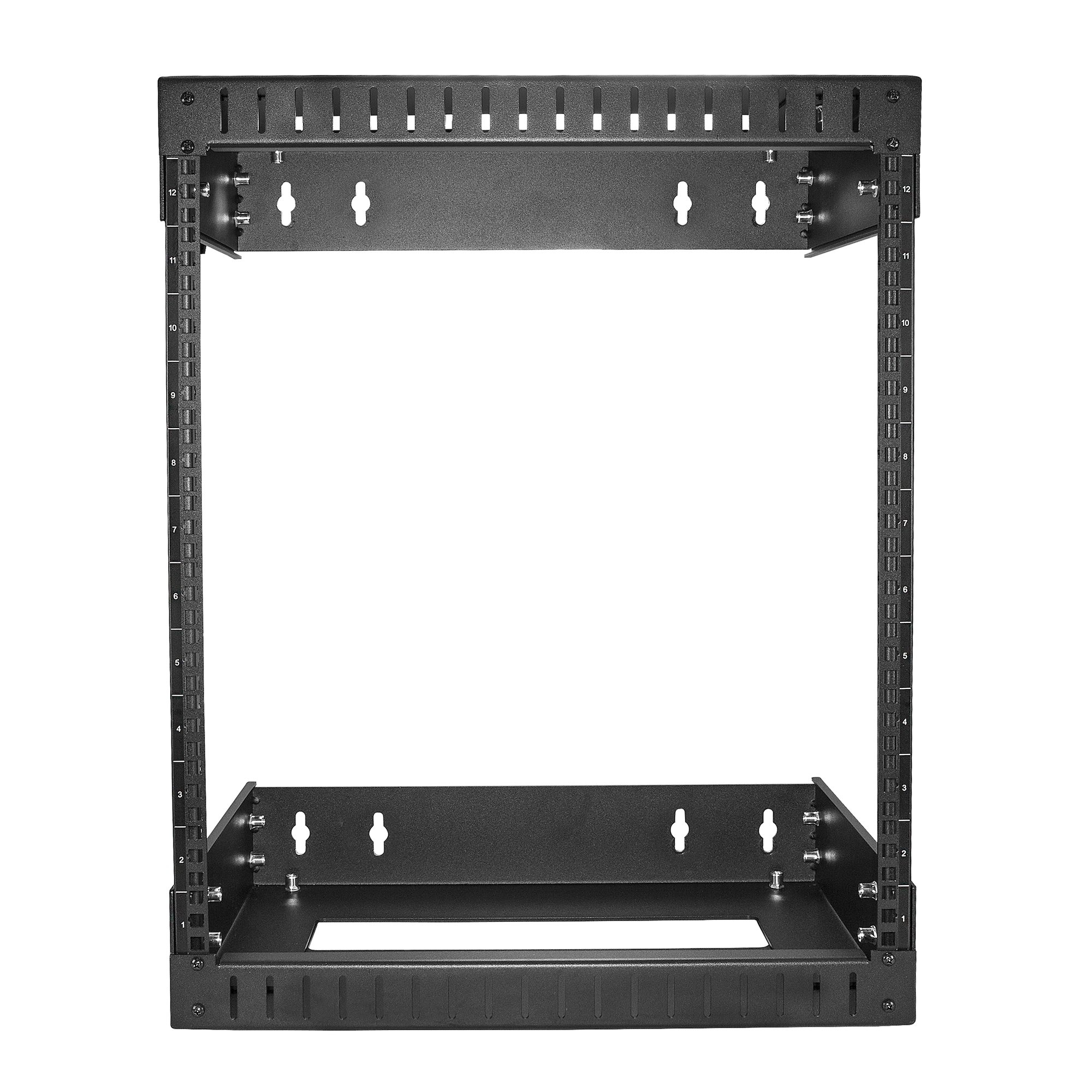

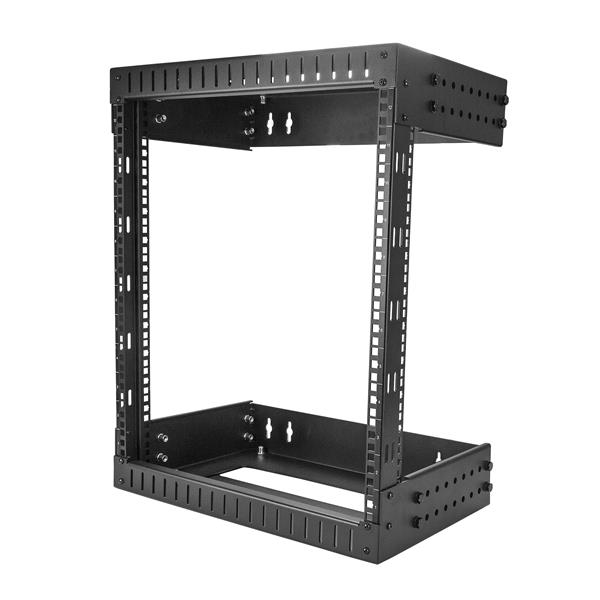

This open-frame wall-mount server rack provides 12U of storage, helping you to save space and stay organized. The equipment rack features an adjustable depth and can hold a total of up to 198 lb. (90 kg).
Easy, hassle-free installation
With adjustable depth to as low as 12 in. (30.4 cm) this network rack is perfect for smaller spaces. It’s easy to assemble and features wall-mounting holes that are spaced 12 and 16 in. apart, making it suitable for mounting on almost any wall, based on North American wall-frame stud-spacing standards. The wall-mount rack comes in a flat-pack, which makes it easy to transport and saves you money on shipping.
Accommodate larger devices
The open-frame rack adjusts from 12 to 20 in. (30.4 to 50.8 cm) to accommodate larger data, network, and telecommunication devices. The above-average depth also gives you the option to mount shelves and other accessories.
Free up space
When space is limited you can mount the open-frame rack on a server room wall, office, or above a doorway, to expand your workspace and ensure your equipment is easy to access.
Keep your equipment cool and accessible
The rack’s open frame design ensures passive cooling for your rack-mounted equipment. Additionally, the open frame provides easy access to your equipment and makes it easier to configure mounted devices, which saves you time.
The RK12WALLOA is backed by a StarTech.com 5-year warranty and free lifetime technical support.
The StarTech.com Advantage
- DURABLE & ADJUSTABLE: This adjustable 12U 19" open frame wall mount network rack is EIA/ECA-310 compatible w/ 12-20" mounting depth supports most network switches like Cisco 2960
- HEAVY DUTY: This heavy duty 2 post open frame rack supports unobstructed airflow and is easy to install w/ a durable design made from SPCC cold-rolled steel with support for up to 200lbs of equipment
- CERTIFIED PACKAGING: The rack ships flat packed with ISTA-6 certified packaging to ensure complete and undamaged delivery and also features comprehensive assembly instructions
| Weight & dimensions | |
|---|---|
| Package depth | 670 mm |
| Package width | 530 mm |
| Package height | 130 mm |
| Package weight | 17 kg |
| Mounting depth (max) | 50.5 cm |
| Width | 503 mm |
| Depth | 510 mm |
| Height | 640 mm |
| Maximum weight capacity | 90 kg |
| Packaging content | |
| Manual | Yes |
| Nuts included | Yes |
| Number of nuts | 48 |
| Screws included | Yes |
| Number of screws | 64 |
| Number of bolts | 24 |
| Number of washers included | 72 |
| Certificates | |
| RoHS compliance | Yes |
| Certification | CE, REACH |
| Features | |
| Frame type | Open |
| Design | 2-post |
| Rack capacity | 12U |
| Adjustable mounting rails | Yes |
| Cable management | No |
| Mounting hole shape | Square |
| Type | Wall mounted rack |
| Maximum weight capacity | 90 kg |
| Material | Steel |
| Product colour | Black |
| Certification | CE, REACH |
| RoHS compliance | Yes |
| Packaging data | |
| Manual | Yes |
| Nuts included | Yes |
| Number of nuts | 48 |
| Package depth | 670 mm |
| Package width | 530 mm |
| Package height | 130 mm |
| Package weight | 17 kg |
| Screws included | Yes |
| Number of screws | 64 |
| Number of bolts | 24 |
| Number of washers included | 72 |
| Technical details | |
| Package width | 530 mm |
| Package height | 130 mm |
| Type | Wall mounted rack |
| Compliance industry standards | EIA RS310-D |
| Rack capacity | 12U |
| Colour | |
| Product colour | Black |
| Material | |
| Material | Steel |
| Logistics data | |
| Master (outer) case width | 63 cm |
| Master (outer) case length | 67 cm |
| Master (outer) case height | 13 cm |
| Quantity per master (outer) case | 1 pc(s) |
| Other features | |
| Compliance industry standards | EIA RS310-D |
