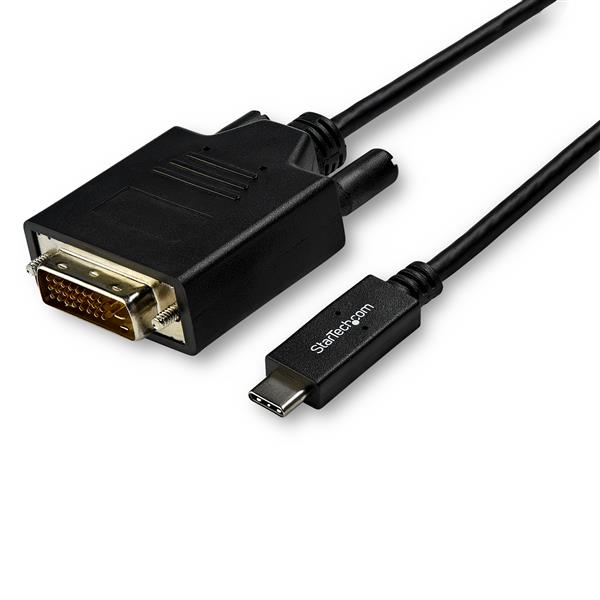

StarTech.com 10ft (3m) USB C to DVI Cable - 1080p (Single Link) USB Type-C (DP Alt Mode HBR2) to DVI-Digital Video Adapter Cable - Works w/ Thunderbolt 3 - Laptop to DVI Monitor/Display
Description
This USB-C to DVI cable lets you connect your Thunderbolt 3 or USB Type-C enabled device to a DVI computer monitor with just one cable, providing you with a convenient, clutter-free solution.
Astonishing Picture Quality
The USB-C to DVI adapter cable lets you harness the video capabilities that are built into your USB-C connection, to deliver astonishing picture quality at resolutions up to 1920 x 1200.
Plus, the USB-C video cable is backward compatible with 1080p displays, which makes it a great accessory for home, office or other work environments.
Clutter-Free Installation
At 9.8 ft. (3 m) in length, this computer monitor cable delivers a compact connection that eliminates excess adapters and cabling, ensuring a tidy, professional installation. For shorter installations, we also offer a 3.3 ft. (1 m) (CDP2DVIMM1MB) and a 6.6 ft. (2 m) (CDP2DVIMM2MB) USB-C to DVI cable, enabling you to choose the right cable length for your custom installation needs.
Hassle-Free Connection
The reversible USB-C connector offers an easy and convenient connection. To ensure easy operation and installation, this USB-C to DVI cable works with both Windows and Mac computers and supports easy plug-and-play installation.
CDP2DVI3MBNL is backed by a 3-year StarTech.com warranty and free lifetime technical support.
Note: Your USB-C port must support DisplayPort over USB-C (DP Alt Mode) in order to work with this adapter.
The StarTech.com Advantage
- DISPLAY COMPATIBILITY: Tested w/ DVI-Digital (single-link) monitor brands Dell, Samsung, Asus, Acer & LG and projectors like Sony, Christie, LG, NEC, Epson; great for routing in boardrooms/offices
- PERFORMANCE: 10ft/3m USB-C (DP 1.2 Alt Mode HBR2) to DVI-D single link cable supports 1920x1200/1080p at 60Hz
- EDID pass-through
| Features | |
|---|---|
| Chipset | VIA/VLI - VL100, Parade - PS171 |
| Product colour | Black |
| Cable length | 3 m |
| Connector 1 | USB Type-C |
| Connector 2 | DVI-D |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Maximum resolution | 1920 x 1200 pixels |
| Supported graphics resolutions | 1024 x 768 (XGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA) |
| Supported video modes | 720p,1080p |
| Plug and Play | Yes |
| RoHS compliance | Yes |
| Certification | CE, FCC, REACH |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| Dual Link DVI | No |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Packaging data | |
| Package width | 125 mm |
| Package depth | 225 mm |
| Package height | 10 mm |
| Quantity per pack | 1 pc(s) |
| Other features | |
| Width | 20 mm |
| Height | 10 mm |
| Depth | 3000 mm |
| Weight & dimensions | |
| Width | 20 mm |
| Height | 10 mm |
| Depth | 3000 mm |
| Weight | 141 g |
| Package width | 125 mm |
| Package depth | 225 mm |
| Package height | 10 mm |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Master (outer) case width | 32 cm |
| Master (outer) case length | 50 cm |
| Master (outer) case height | 21 cm |
| Quantity per master (outer) case | 40 pc(s) |
Specifications
UNSPSC Code
43202222
Brand
StarTech
Categories
Computer, AV & Power Cables
Category
Video Cable Adapters
Connector 1
USB Type-C
Connector 1 gender
Male connector
Connector 2
DVI-D
Connector 2 gender
Male connector
