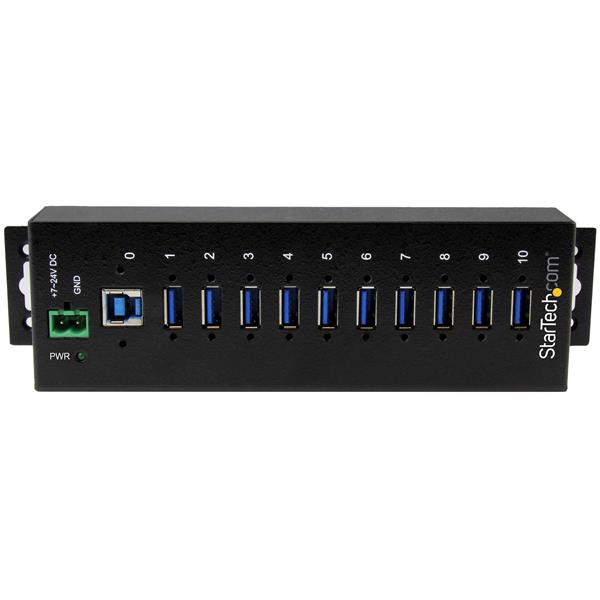

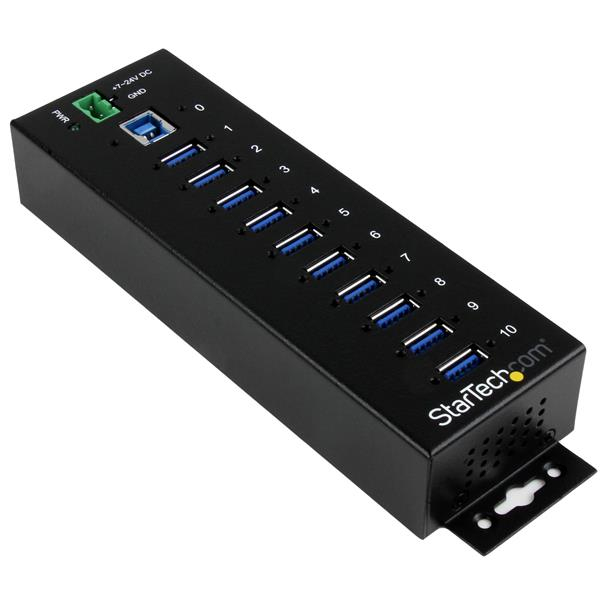

StarTech.com 10-Port Industrial USB 3.0 Hub with ESD & 350W Surge Protection
Description
This TAA compliant 10-port industrial USB 3.0 hub gives you the scalability you need in harsh industrial environments, product and repair labs, conference rooms or office workstations. With its rugged industrial grade metal housing, it is designed to meet the advanced requirements of connecting a high number of devices in factories and office environments.
Perfect for Harsh Environments

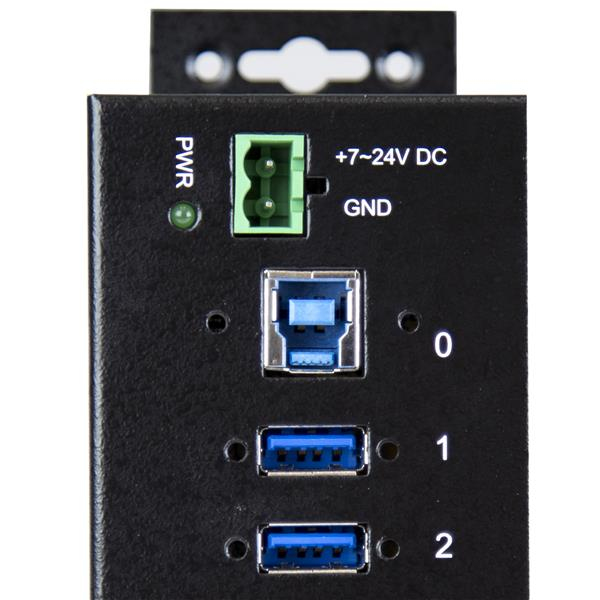

This industrial USB hub delivers reliable performance with a metal, heavy-duty housing. It supports wide-range 7-24V DC terminal block input, giving you the flexibility to power the hub as required, based on your own power input capabilities.
Perfect for factory environments, the rugged hub also supports a wide operating temperature range (0°C to 70°C) and offers surge and ESD protection to each USB port, which can help prevent damage to your connected devices.
Connect & Charge More USB Devices
Designed for a high volume of connections, this robust USB 3.0 hub offers ten connection ports, for connecting more USB devices and peripherals.
The hub also supports USB battery charging specification 1.2, delivering up to 2.4A on any port to a maximum of 50W total, so you can charge your mobile devices faster than traditional USB ports allow.
Locate the Hub Where You Need it Most

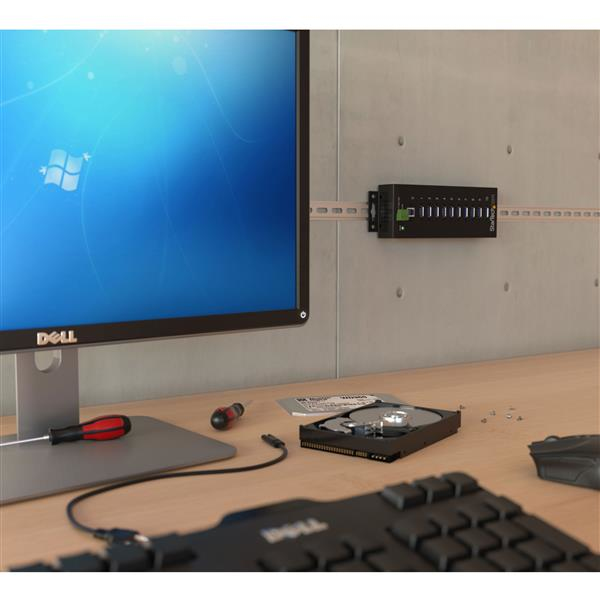

With versatile installation options, you can install the hub where it’s best suited for your environment. With built-in mounting brackets and included DIN mount rails, you can securely mount the USB 3.0 hub to most surfaces such as a wall, under a desk or rack.
Works With Your Older USB Devices
The rugged USB hub supports the full 5Gbps bandwidth of USB 3.0 and is backward compatible with previous USB devices. You can connect your legacy USB 3.0 and 1.x peripherals alongside your newer USB 3.0 devices without any disruptions.
The ST1030USBM is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Protects your connected devices with 15kV Air and 8kV Contact ESD protection
- Surge protection of 350W on the downstream and upstream USB ports
- Mount industrial USB hub where required with built-in mounting brackets or included DIN rails
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Terminal block port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 10 |
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Ports quantity | 10 |
| Cable length | 2.032 m |
| Features | |
| Surge protection | Yes |
| LED indicators | Power |
| Product colour | Black |
| Certification | RoHS, CE, FCC, TAA, REACH |
| Cable length | 2.032 m |
| Data transfer rate | 5000 Mbit/s |
| Housing material | Steel |
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| Data transmission | |
| Data transfer rate | 5000 Mbit/s |
| Power | |
| Input voltage | 7 - 24 V |
| Technical details | |
| Product colour | Black |
| Performance | |
| Certification | RoHS, CE, FCC, TAA, REACH |
| Surge protection | Yes |
| Data transfer rate | 5000 Mbit/s |
| Mean time between failures (MTBF) | 119388 h |
| Weight & dimensions | |
| Weight | 357 g |
| Width | 56 mm |
| Depth | 198 mm |
| Height | 31 mm |
| Package width | 169 mm |
| Package depth | 246 mm |
| Package height | 57 mm |
| Package weight | 600 g |
| Packaging data | |
| Package width | 169 mm |
| Package depth | 246 mm |
| Package height | 57 mm |
| Package weight | 600 g |

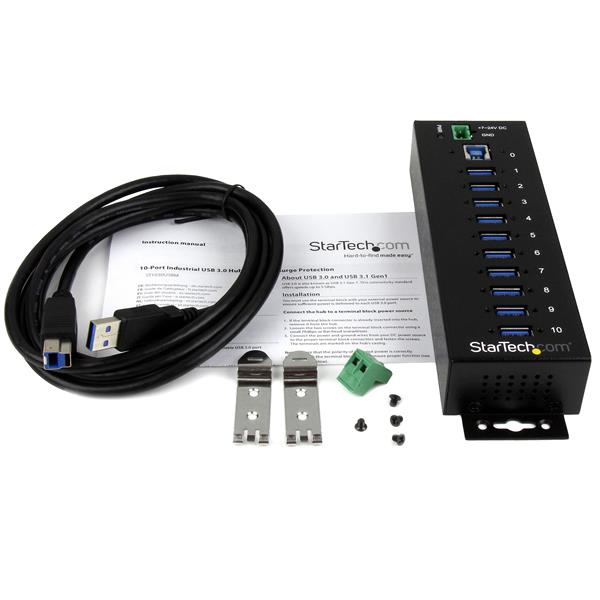

| Packaging content | |
| Manual | Yes |
| Terminal block included | Yes |
| Cables included | USB |
| DIN rail kit included | Yes |
| Design | |
| LED indicators | Power |
| Product colour | Black |
| Certification | RoHS, CE, FCC, TAA, REACH |
| Cable length | 2.032 m |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Certificates | |
| Certification | RoHS, CE, FCC, TAA, REACH |
| Indication | |
| LED indicators | Power |
| Other features | |
| Chipset | Genesys Logic - GL3520 |
Specifications
UNSPSC Code
43211603
Brand
StarTech
Categories
Interface Components
Category
Interface Hubs
Ports quantity
10
StarTech.com 10-Port Industrial USB 3.0 Hub with ESD & 350W Surge Protection
